ZA9423 Series

High Current Air Core Inductors

The ZA9423-33N and the ZA9423-66N high-frequency, high-current, surface-mount inductors are perfectly suited for use as low-loss chokes in RF amplifiers for HF, VHF, ISM, broadcast, and aerospace applications. Their high Q factors and high current ratings give designers great options for powerful RF amplifier designs.

Significantly high Q factor – twice as high as 2014VS
High current handling
Ideal for use as a low-loss choke on RF power amplifiers

立即购买:

零件号

查找我的元件

计数	单价
1	$4.33
100	$3.79
250	$2.85
500	$1.71
1000	$1.34
2500	$1.14
5000	$1.05

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

M = 20%

Termination

E = Tin-silver over copper

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

零件号	电感 (nH) 1 (公差: ±20%)	Q typ @ 100 MHz 2	SRF typ (MHz) 3	DCR (mΩ) 4		Irms (A) 5
零件号	电感 (nH) 1 (公差: ±20%)	Q typ @ 100 MHz 2	SRF typ (MHz) 3	typ	max	20°C rise	40°C rise
ZA9423-33NMED	33	456	817	0.53	0.62	30.2	42.0
ZA9423-66NMED	66	404	436	0.75	0.90	27.0	38.5

注释

Inductance measured at 1.0 MHz, 0.1 Vrms, 0 A using an Agilent/HP HP4291A impedance analyzer with an Agilent/HP 16193A test fixture or equivalent.
Q measured at the specified frequency using an Agilent/HP 4291A impedance analyzer or equivalent.
SRF measured using an Agilent/HP 8753 network analyzer or equivalent and a Coilcraft CCF1199 test fixture.
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.

端子:

E = RoHS compliant tin-silver (96.5/3.5) over copper.

包装:

D = 13″ machine-ready reel; EIA-481 embossed plastic tape (ZA9423-33N, 500 parts per full reel; ZA9423-66N, 450 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +125°C with Irms current

储存温度范围:

Component: –40°C to +155°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+155°C (ambient + temp rise).

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

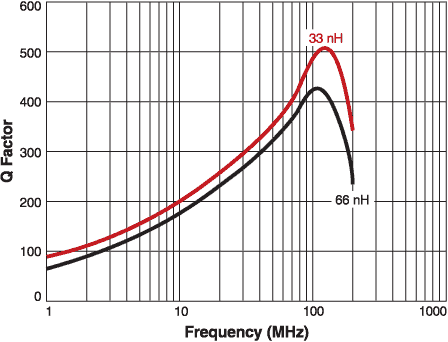

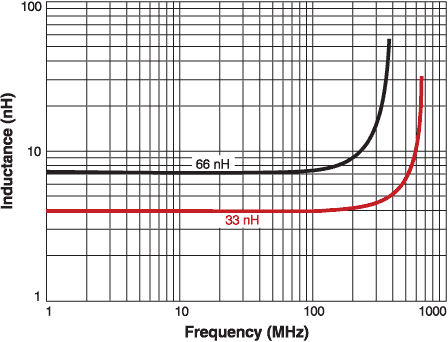

性能曲线

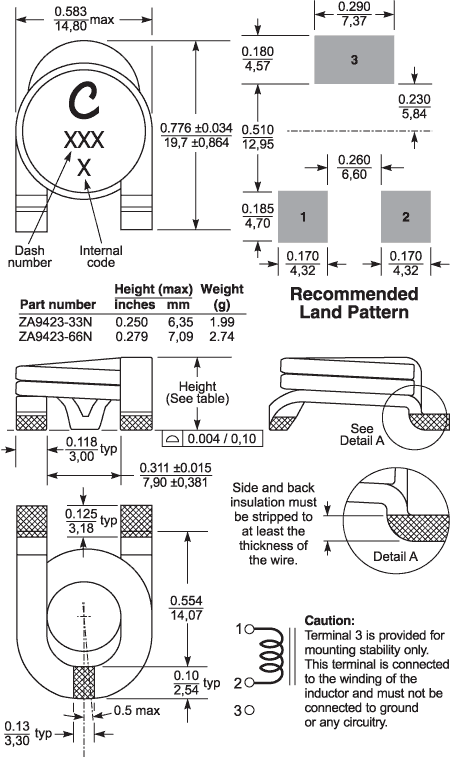

物理特性

卷装规格

Part number	Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
Part number		13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	Orientation	T
ZA9423-33N	500	178/330	60/100	13	38,4	32,4	32	20	4	2	6,4	0,5
ZA9423-66N	450	178/330	60/100	13	38,4	32,4	32	20	4	2	6,8	0,5

一般规格

重量:

1.99 - 2.74 g

包装:

ZA9423-33N 500/13″reel; Plastic tape: 32 mm wide, 0.50 mm thick, 20 mm pocket spacing, 6.4 mm pocket depth;
ZA9423-66N 450/13″reel; Plastic tape: 32 mm wide, 0.50 mm thick, 20 mm pocket spacing, 6.8 mm pocket depth

Temperature coefficient of inductance:

+5 to +70 ppm/°C

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
