DR0608 Series

Power Inductors

Coilcraft DR0608 Series radial-leaded power inductors provide a low-cost, high-efficiency option for choke applications. They feature industry-standard lead spacing and are available in a wide range of inductance values and current ratings up to 9.5 Amps.

Industry standard 3.5 mm lead spacing
Low-cost ferrite core through-hole (TH) chokes
Wide range of values and current ratings

立即购买:

零件号

查找我的元件

计数	单价
1	$0.50
300	$0.43
600	$0.38
1200	$0.29
3000	$0.25
6000	$0.24

对于大批量采购或非库存产品，点击这里请求报价。

Termination

L = Tin-silver over tin over copper over steel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

零件号	电感 (µH) 1	公差 (%)	DCR max (Ω) 2	SRF typ (MHz) 3	Isat (A) 4			Irms (A) 5
零件号	电感 (µH) 1	公差 (%)	DCR max (Ω) 2	SRF typ (MHz) 3	10% drop	20% drop	30% drop	20°C rise	40°C rise
DR0608-332L	3.3	20	0.012	40.0	5.3	6.1	6.4	5.0	7.5
DR0608-472L	4.7	20	0.018	36.0	4.6	5.4	5.8	4.6	6.9
DR0608-562L	5.6	20	0.022	32.0	4.6	5.2	5.5	4.2	6.3
DR0608-682L	6.8	20	0.025	30.0	3.9	4.5	4.8	3.8	5.7
DR0608-822L	8.2	20	0.028	25.0	3.6	4.1	4.4	3.4	5.1
DR0608-103L	10	10	0.035	23.0	3.2	3.6	4.0	3.0	4.5
DR0608-123L	12	10	0.045	20.0	2.8	3.2	3.5	2.8	4.2
DR0608-153L	15	10	0.052	19.0	2.7	3.0	3.2	2.7	4.0
DR0608-183L	18	10	0.065	17.0	2.4	2.7	2.9	2.5	3.7
DR0608-223L	22	10	0.078	16.0	2.1	2.5	2.7	2.3	3.4
DR0608-273L	27	10	0.086	12.0	1.9	2.2	2.4	2.2	3.2
DR0608-333L	33	10	0.12	11.0	1.7	2.0	2.2	2.0	2.9
DR0608-393L	39	10	0.13	10.0	1.6	1.9	2.0	1.8	2.6
DR0608-473L	47	10	0.16	9.5	1.4	1.7	1.8	1.7	2.4
DR0608-563L	56	10	0.19	9.0	1.3	1.5	1.7	1.5	2.1
DR0608-683L	68	10	0.25	9.0	1.3	1.4	1.5	1.3	1.8
DR0608-823L	82	10	0.28	7.0	1.2	1.3	1.4	1.2	1.6
DR0608-104L	100	10	0.38	6.5	1.0	1.2	1.3	1.0	1.3
DR0608-124L	120	10	0.42	6.0	0.96	1.0	1.1	0.94	1.2
DR0608-154L	150	10	0.50	5.5	0.83	0.93	1.0	0.88	1.2
DR0608-184L	180	10	0.65	5.0	0.76	0.85	0.93	0.82	1.1
DR0608-224L	220	10	0.73	4.8	0.73	0.83	0.89	0.76	1.0
DR0608-274L	270	10	0.96	4.0	0.69	0.77	0.82	0.70	0.93
DR0608-334L	330	10	1.1	3.7	0.60	0.68	0.72	0.64	0.85
DR0608-394L	390	10	1.3	3.0	0.59	0.66	0.70	0.58	0.78
DR0608-474L	470	10	1.6	2.8	0.50	0.56	0.61	0.52	0.70
DR0608-564L	560	10	1.9	2.5	0.47	0.53	0.56	0.46	0.63
DR0608-684L	680	10	2.4	2.5	0.43	0.48	0.51	0.40	0.55
DR0608-824L	820	10	2.7	2.1	0.40	0.45	0.48	0.34	0.48
DR0608-105L	1000	10	3.0	2.1	0.35	0.40	0.43	0.30	0.40

注释

Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4263B LCR meter or equivalent.
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 4191A or equivalent. Details
Isat: DC current at 25°C that causes the specified inductance drop from its value without current.
Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

RoHS compliant tin-silver over tin over copper over steel

环境

环境:

符合RoHS

环境温度范围:

−40°C to +85°C with (40°C rise) Irms

储存温度范围:

Component: −40°C to +125°C
Packaging trays or tape: −40°C to +80°C

最高元件温度:

+125°C (Ambient + temperature rise).

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

Inductance vs Current

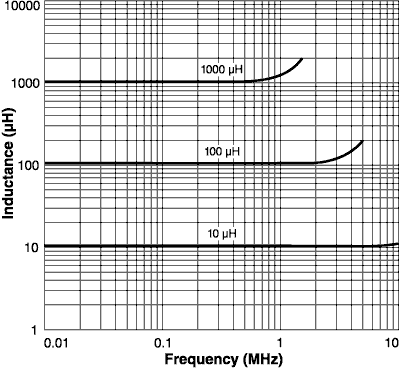

Inductance vs Frequency

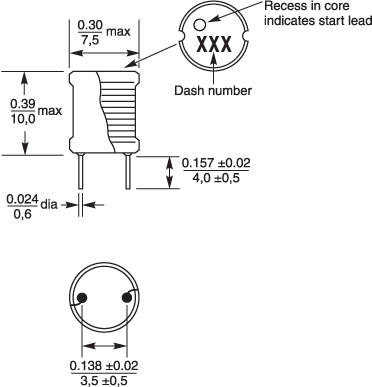

物理特性

一般规格

核心材料:

Ferrite

重量:

1.0 – 1.3 g

包装:

300 parts per tray. 1200 parts in fan-fold tape

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
