LPO4815 Series

Low Profile Surface Mount Power Inductors

Coilcraft LPO4815 Series low-profile, unshielded surface-mount power inductors offer low DC resistance and high saturation current ratings in a compact package. The low-profile ceramic case provides thermal stability and an excellent surface for pick-and-place handling.

Low profile for compact packaging
High saturation current ratings
Ceramic case for thermal stability
Ferrite core for flat L vs I curve

立即购买:

零件号

查找我的元件

计数	单价
1	$1.38
250	$1.12
500	$0.90
1000	$0.69
5000	$0.57

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

M = 20%

Termination

L = Silver-palladium-platinum-glass frit

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C376	19 (3 of each)	$55.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2	公差 (%)	DCR max (Ω) 3	SRF typ (MHz) 4	Isat (A) 5	Irms (A) 6
零件号 1	电感 (µH) 2	公差 (%)	DCR max (Ω) 3	SRF typ (MHz) 4	Isat (A) 5	Irms (A) 6
LPO4815-102ML_	1.0	20	0.036	230	1.6	1.9
LPO4815-152ML_	1.5	20	0.085	200	1.5	1.7
LPO4815-222ML_	2.2	20	0.088	150	1.1	1.5
LPO4815-332ML_	3.3	20	0.12	115	0.90	1.3
LPO4815-392ML_	3.9	20	0.13	105	0.86	1.2
LPO4815-472ML_	4.7	20	0.15	95.0	0.77	1.1
LPO4815-682ML_	6.8	20	0.18	72.0	0.65	1.0
LPO4815-822ML_	8.2	20	0.22	65.0	0.58	0.90
LPO4815-103KL_	10	10	0.23	60.0	0.50	0.85
LPO4815-123KL_	12	10	0.31	50.0	0.45	0.80
LPO4815-153KL_	15	10	0.36	45.0	0.42	0.75
LPO4815-223KL_	22	10	0.48	35.0	0.36	0.70
LPO4815-333KL_	33	10	0.71	30.0	0.28	0.65
LPO4815-393KL_	39	10	0.83	25.0	0.26	0.60
LPO4815-473KL_	47	10	1.2	25.0	0.22	0.55
LPO4815-683KL_	68	10	1.4	20.0	0.20	0.45
LPO4815-104KL_	100	10	2.2	15.0	0.15	0.36
LPO4815-154KL_	150	10	3.2	12.0	0.13	0.30
LPO4815-224KL_	220	10	4.3	10.0	0.11	0.27

注释

When ordering, please specify termination and packaging codes: e.g. LPO4815-224KLC
Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/HP 4263B LCR meter or equivalent.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using Agilent/HP 4191A or equivalent.
Isat: DC current at 25°C that causes a 10% (typ.) inductance drop from its value without current. Temperature derating curves
Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

L = Silver-palladium-platinum-glass frit terminations.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (1000 parts per full reel).
B = Less than full reel. In tape, but not machine ready. To have a leader and trailer added ($25 charge), use code letter C instead.
D = 13″ machine-ready reel. EIA-481 embossed plastic tape (3500 parts per full reel).

环境

环境:

符合RoHS

环境温度范围:

–40°C to +85°C with Irms current

储存温度范围:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+125°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

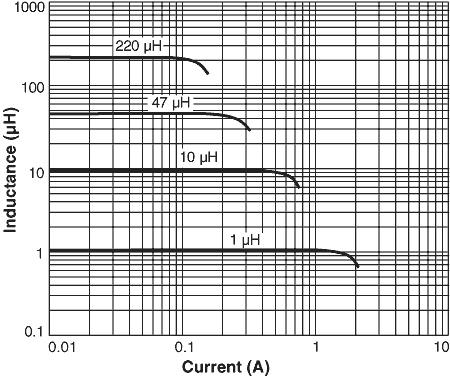

Inductance vs. Current

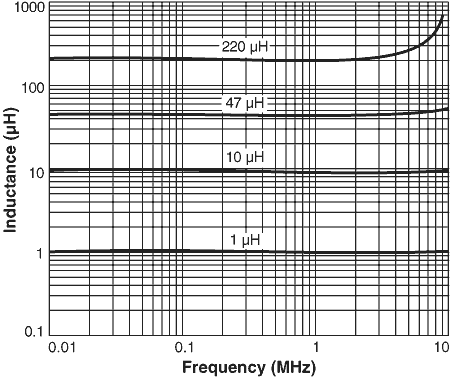

Inductance vs. Frequency

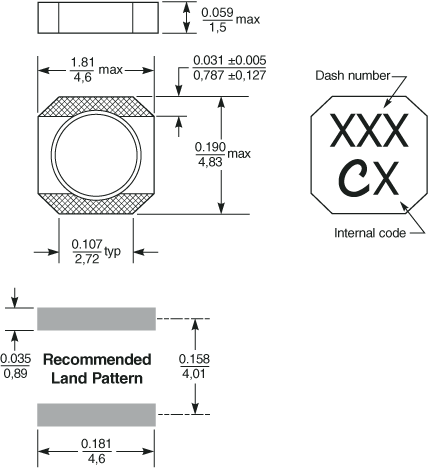

物理特性

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation‡
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
1000	3500*	178/330	60/100	13	18,4	12,4	12	8	4	2	1,6	0,3

* Special order
‡ Part marking does not indicate polarity

一般规格

核心材料:

Ferrite

重量:

70.0 - 78.5 mg

包装:

1000/7″ reel; 3500/13″ reel Plastic tape: 12 mm wide, 0.3 mm thick, 8 mm pocket spacing, 1.6 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

推荐的取放吸嘴:

OD: 4.6 mm; ID: < 2.3 mm

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
