LPO3310 Series

Low Profile Surface Mount Power Inductors

Coilcraft LPO3310 Series low-profile, unshielded surface-mount power inductors offer low DC resistance and high saturation current ratings in a compact package. The low-profile ceramic case provides thermal stability and an excellent surface for pick-and-place handling.

Low profile for compact packaging
High saturation current ratings
Ceramic case for thermal stability
Ferrite core for flat L vs I curve

立即购买:

零件号

查找我的元件

计数	单价
1	$1.39
250	$1.13
500	$0.85
1000	$0.70
5000	$0.59

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

M = 20%

Termination

L = Silver-palladium-platinum-glass frit

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C375	15 (3 of each)	$45.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2 (公差: ±20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Isat (A) 5	Irms (A) 6
零件号 1	电感 (µH) 2 (公差: ±20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Isat (A) 5	Irms (A) 6	40°C rise
LPO3310-301ML_	0.30	0.040	420	2.8	2.8
LPO3310-471ML_	0.47	0.042	310	2.3	2.3
LPO3310-701ML_	0.70	0.068	200	1.9	1.9
LPO3310-102ML_	1.0	0.076	180	1.6	1.6
LPO3310-152ML_	1.5	0.120	153	1.4	1.4
LPO3310-222ML_	2.2	0.150	112	1.1	1.1
LPO3310-332ML_	3.3	0.200	91.0	0.95	0.95
LPO3310-472ML_	4.7	0.280	80.0	0.80	0.80
LPO3310-682ML_	6.8	0.360	68.0	0.66	0.66
LPO3310-822ML_	8.2	0.500	58.0	0.65	0.65
LPO3310-103ML_	10	0.520	52.0	0.57	0.57
LPO3310-153ML_	15	0.700	43.0	0.45	0.45
LPO3310-223ML_	22	1.200	34.0	0.37	0.37
LPO3310-333ML_	33	1.780	27.0	0.30	0.30
LPO3310-473ML_	47	2.150	22.0	0.25	0.25

注释

When ordering, please specify termination and packaging codes: e.g. LPO3310-473MLC
Inductance tested at 100 kHz, 0.1 Vrms using an Agilent/HP 4192A.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 8753ES or equivalent.
Isat: DC current at 25°C that causes a 10% (typ.) inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

L = Silver-palladium-platinum-glass frit terminations.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (1000 parts per full reel).
B = Less than full reel. In tape, but not machine ready. To have a leader and trailer added ($25 charge), use code letter C instead.
D = 13″ machine-ready reel. EIA-481 embossed plastic tape (3500 parts per full reel).

环境

环境:

符合RoHS

环境温度范围:

–40°C to +85°C with Irms current

储存温度范围:

Component: –40°C to +110°C
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+110°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

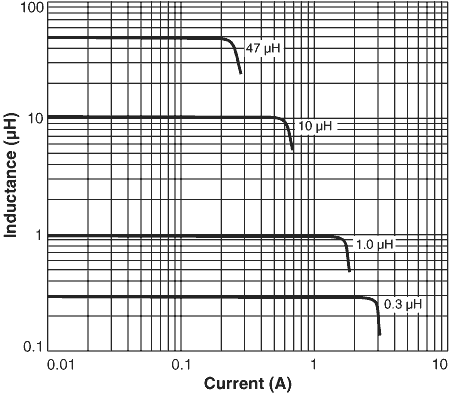

Inductance vs. Current

Inductance vs. Frequency

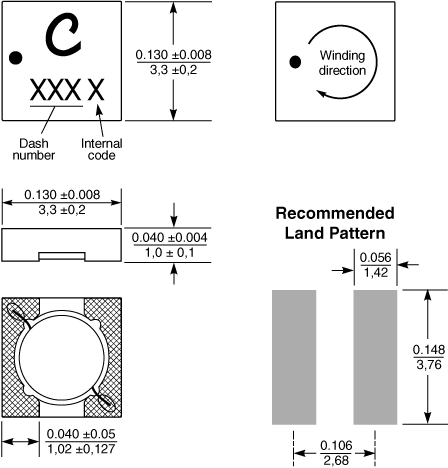

物理特性

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
1000	3500*	178/330	60/100	13	18,4	12,4	12	8	4	2	1,37	0,23

* Special order

一般规格

核心材料:

Ferrite

重量:

28.0 - 31.3 mg

包装:

1000/7″ reel; 3500/13″ reel Plastic tape: 12 mm wide, 0.23 mm thick, 8 mm pocket spacing, 1.37 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

推荐的取放吸嘴:

OD: 3.3 mm; ID: < 1.65 mm

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
