LPO2506 Series

Low Profile Surface Mount Power Inductors

Coilcraft LPO2506 Series low-profile, unshielded surface-mount power inductors offer low DC resistance and high saturation current ratings in a compact package. The low-profile ceramic case provides thermal stability and an excellent surface for pick-and-place handling.

InBoard® version is only 1,19 mm above board
On-board version is 1,65 mm high
Ceramic case for thermal stability
Ferrite core for flat L vs I curve
AEC-Q200 Grade 3 (−40°C to +85°C)

立即购买:

零件号

查找我的元件

计数	单价
1	$1.65
250	$1.36
500	$1.06
1000	$0.91
5000	$0.80

对于大批量采购或非库存产品，点击这里请求报价。

Termination

L = Silver-palladium-platinum-glass frit

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C332	16 (3 of each)	$60.00
C333	16 (3 of each)	$60.00

规格

Electrical specifications at 25°C.

In-Board Version 零件号 1	On-Board Version 零件号 1	电感 (µH) 2 (公差: ±20%)	DCR max (Ω) 3	SRF typ (MHz)	Isat (A) 4	Irms (A) 5
In-Board Version 零件号 1	On-Board Version 零件号 1	电感 (µH) 2 (公差: ±20%)	DCR max (Ω) 3	SRF typ (MHz)	Isat (A) 4	Irms (A) 5	40°C rise
LPO2506I-472L_	LPO2506O-472L_	4.7	0.15	90.0	1.6	1.9
LPO2506I-682L_	LPO2506O-682L_	6.8	0.17	75.0	1.3	1.7
LPO2506I-822L_	LPO2506O-822L_	8.2	0.20	65.0	1.0	1.5
LPO2506I-103L_	LPO2506O-103L_	10	0.24	60.0	1.0	1.5
LPO2506I-153L_	LPO2506O-153L_	15	0.30	45.0	0.90	1.3
LPO2506I-223L_	LPO2506O-223L_	22	0.42	35.0	0.70	1.0
LPO2506I-333L_	LPO2506O-333L_	33	0.55	30.0	0.60	0.90
LPO2506I-473L_	LPO2506O-473L_	47	0.77	22.0	0.50	0.70
LPO2506I-683L_	LPO2506O-683L_	68	1.1	20.0	0.40	0.60
LPO2506I-104L_	LPO2506O-104L_	100	1.6	15.0	0.30	0.50
LPO2506I-154L_	LPO2506O-154L_	150	2.5	12.0	0.25	0.40
LPO2506I-224L_	LPO2506O-224L_	220	3.7	10.0	0.22	0.32
LPO2506I-334L_	LPO2506O-334L_	330	4.7	8.0	0.18	0.28
LPO2506I-474L_	LPO2506O-474L_	470	6.8	6.5	0.14	0.24
LPO2506I-684L_	LPO2506O-684L_	680	9.2	5.5	0.12	0.20
LPO2506I-105L_	LPO2506O-105L_	1000	14.2	4.5	0.10	0.16

注释

When ordering, please specify termination and packaging codes: e.g. LPO2506I-105LD or LPO2506O-105LD.
Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/HP 4263B LCR meter or equivalent.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
Isat: DC current at 25°C that causes a 10% (typ.) inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

L = Silver-palladium-platinum-glass frit terminations.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (1000 parts per full reel).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

−40°C to +85°C with Irms current

储存温度范围:

Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+125°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

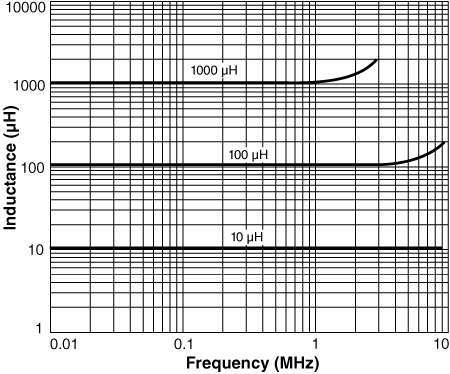

Inductance vs. Frequency

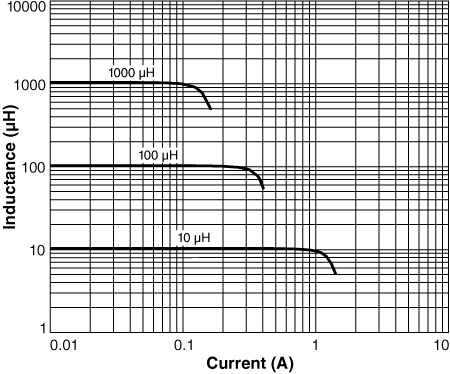

Inductance vs. Current

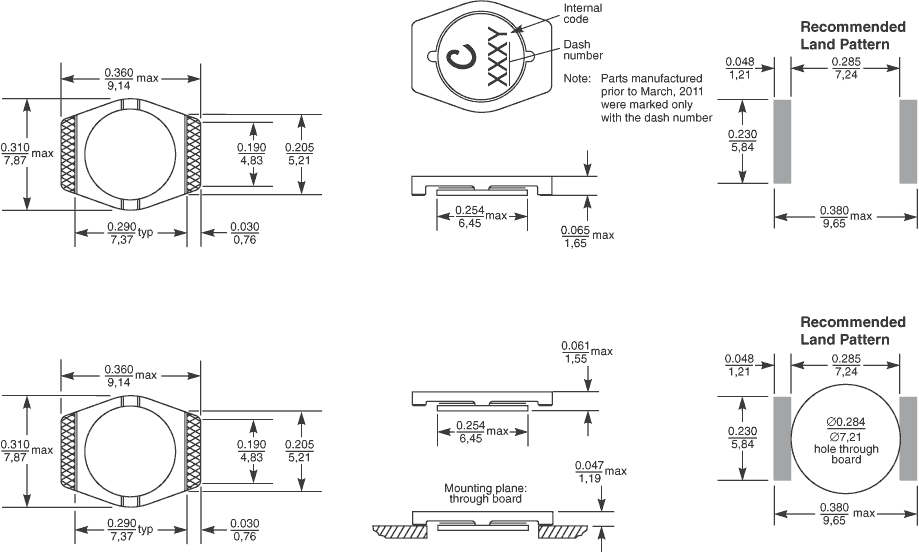

物理特性

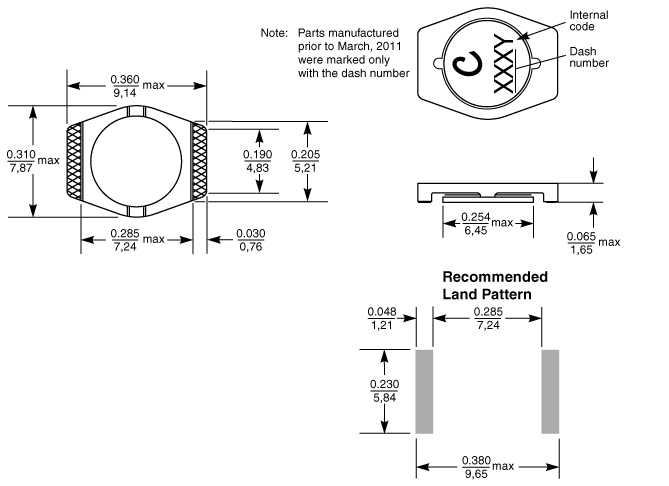

In-Board Version

On-Board Version

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation‡
Part	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T	or
InBoard	1000	330	100	13	22,4	16,4	16	12	4	2	2,23	0,25
On-Board	1000	330	100	13	22,4	16,4	16	12	4	2	1,8	0,3

‡ Part marking does not indicate polarity

一般规格

核心材料:

Ferrite

重量:

240 - 260 mg

包装:

1000/13″ reel Plastic tape: 12 mm wide, 0.23 mm thick, 8 mm pocket spacing, 1.37 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
