DO3340P Series

Surface Mount Power Inductors

Coilcraft DO3340P Series unshielded surface-mount power inductors offer proven performance at a great value. They provide high saturation current ratings, high energy storage, and low resistance.

Open magnetic flux path
High saturation current ratings
High energy storage
Industry standard footprint

立即购买:

零件号

查找我的元件

计数	单价
1	$2.08
100	$1.79
225	$1.56
450	$1.15
900	$0.90
2500	$0.72
5000	$0.58

对于大批量采购或非库存产品，点击这里请求报价。

Termination

L = Gold over nickel

Packaging

D = 13" machine-ready reel

Tolerance

M = 20%

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C310	13 (3 of each)	$40.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2 (公差: ±20%)	DCR max (Ω) 3	SRF typ (MHz)	Isat (mA) 4	Irms (A) 5
零件号 1	电感 (µH) 2 (公差: ±20%)	DCR max (Ω) 3	SRF typ (MHz)	Isat (mA) 4	Irms (A) 5
DO3340P-103ML_	10	0.040	35.0	8000	3.5
DO3340P-153ML_	15	0.050	18.0	7000	3.0
DO3340P-223ML_	22	0.066	13.0	5500	2.5
DO3340P-333ML_	33	0.080	11.0	4000	2.0
DO3340P-473ML_	47	0.11	9.0	3800	1.6
DO3340P-683ML_	68	0.17	7.0	3000	1.2
DO3340P-104ML_	100	0.22	5.5	2500	1.2
DO3340P-154ML_	150	0.34	4.5	2000	0.90
DO3340P-224ML_	220	0.44	3.5	1600	0.70
DO3340P-334ML_	330	0.70	3.0	1200	0.60
DO3340P-474ML_	470	0.95	2.5	1000	0.30
DO3340P-684ML_	680	1.2	2.0	1000	0.20
DO3340P-105ML_	1000	2.0	1.5	800	0.10

注释

When ordering, please specify termination and packaging codes: e.g. DO3340P-105MLD
Inductance tested at 100 kHz, 0.1 Vrms using an Agilent/HP 4263B LCR meter or equivalent.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
Isat: DC current at 25°C that causes a 10% (typ) inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes a 20°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

L = Gold over nickel over phos bronze.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (225 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +85°C with Irms current

储存温度范围:

Component: –40°C to +105°C
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+105°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

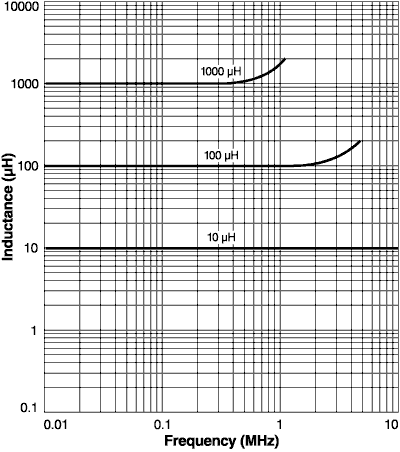

性能曲线

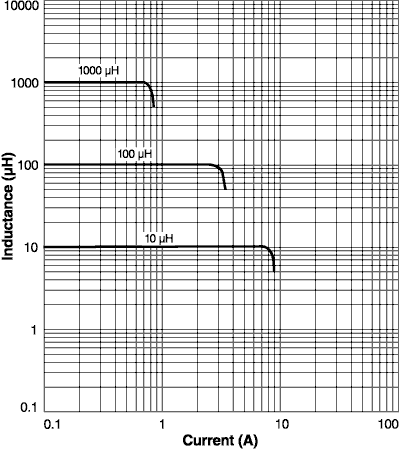

Inductance vs Current

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
225	330	100	13	30,4	24,4	24	24	4	2	11,4	0,4

一般规格

核心材料:

Ferrite

重量:

1.8– 2.8 g

包装:

225 per 13″ reel Plastic tape: 24 mm wide, 0.4 mm thick, 24 mm pocket spacing, 11.4 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
