DO3340H Series

Surface Mount Power Inductors

Coilcraft DO3340H Series unshielded surface-mount power inductors offer proven performance at a great value. They provide high saturation current ratings, high energy storage, and low resistance.

Open magnetic flux path
High saturation current ratings
High energy storage
Industry standard footprint
AEC-Q200 Grade 1 (−40°C to +125°C)

立即购买:

零件号

查找我的元件

计数	单价
1	$2.27
350	$1.95
700	$1.18
1400	$0.96
2800	$0.80
5000	$0.72

对于大批量采购或非库存产品，点击这里请求报价。

Termination

L = Tin-silver

Packaging

D = 13" machine-ready reel

B = Less than full reel

Tolerance

N = 30%

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2	公差 (%)	DCR (Ω)		SRF typ (MHz) 3	Isat (A) 4			Irms (A) 5
零件号 1	电感 (µH) 2	公差 (%)	typ	max	SRF typ (MHz) 3	10% drop	20% drop	30% drop	20°C rise	40°C rise
DO3340H-271NLD	0.27	30	0.0013	0.0025	410	54.0	55.0	56.0	20.0	30.0
DO3340H-471NLD	0.47	30	0.0018	0.0030	210	43.0	44.0	44.0	15.0	22.5
DO3340H-102MLD	1.0	20	0.0050	0.0065	130	25.0	25.5	25.5	10.7	16.0
DO3340H-152MLD	1.5	20	0.0059	0.0070	100	21.5	22.0	22.2	9.7	14.5
DO3340H-222MLD	2.2	20	0.0069	0.0080	82.0	19.0	19.3	19.4	8.8	13.2
DO3340H-272MLD	2.7	20	0.0094	0.012	68.0	16.4	16.6	16.7	7.4	11.1
DO3340H-332MLD	3.3	20	0.011	0.015	60.0	15.3	15.5	15.6	6.2	9.3
DO3340H-392MLD	3.9	20	0.012	0.017	57.0	14.1	14.4	14.5	5.6	8.4
DO3340H-472MLD	4.7	20	0.013	0.019	47.0	13.1	13.3	13.4	5.1	7.6
DO3340H-562MLD	5.6	20	0.014	0.022	42.0	12.3	12.5	12.6	4.6	6.9
DO3340H-682MLD	6.8	20	0.019	0.024	37.0	11.2	11.3	11.4	3.9	5.8
DO3340H-822MLD	8.2	20	0.022	0.026	28.0	10.0	10.2	10.3	3.5	5.3
DO3340H-103MLD	10	20	0.028	0.031	24.0	9.2	9.3	9.4	3.2	4.8
DO3340H-123MLD	12	20	0.032	0.036	19.0	8.2	8.5	8.6	2.9	4.4
DO3340H-153MLD	15	20	0.036	0.041	15.0	7.8	7.9	8.0	2.7	4.1
DO3340H-183MLD	18	20	0.040	0.044	15.0	7.3	7.4	7.5	2.6	3.9
DO3340H-223MLD	22	20	0.046	0.052	14.0	6.5	6.7	6.7	2.4	3.6
DO3340H-273MLD	27	20	0.067	0.073	12.6	5.8	5.9	5.9	2.3	3.5
DO3340H-333KLD	33	10	0.072	0.080	12.4	5.5	5.6	5.6	2.0	3.0
DO3340H-393KLD	39	10	0.080	0.095	9.8	5.0	5.1	5.2	1.8	2.7
DO3340H-473KLD	47	10	0.093	0.10	9.0	4.6	4.7	4.7	1.5	2.3
DO3340H-563KLD	56	10	0.12	0.14	7.8	4.2	4.3	4.3	1.4	2.1
DO3340H-683KLD	68	10	0.14	0.15	7.4	3.9	4.0	4.0	1.2	1.8
DO3340H-823KLD	82	10	0.15	0.16	5.9	3.5	3.6	3.6	1.2	1.8
DO3340H-104KLD	100	10	0.18	0.19	6.0	3.2	3.3	3.3	1.2	1.8
DO3340H-124KLD	120	10	0.23	0.24	5.0	2.9	3.0	3.0	1.0	1.5
DO3340H-154KLD	150	10	0.26	0.28	4.7	2.6	2.7	2.7	0.90	1.4
DO3340H-184KLD	180	10	0.29	0.32	4.5	2.5	2.6	2.6	0.80	1.2
DO3340H-224KLD	220	10	0.33	0.38	4.0	2.3	2.4	2.4	0.70	1.1
DO3340H-274KLD	270	10	0.44	0.48	3.7	2.0	2.1	2.1	0.65	0.97
DO3340H-334KLD	330	10	0.51	0.57	3.2	1.8	1.9	1.9	0.60	0.90
DO3340H-394KLD	390	10	0.66	0.69	2.9	1.7	1.8	1.8	0.55	0.82
DO3340H-474KLD	470	10	0.75	0.80	2.6	1.5	1.6	1.6	0.30	0.45
DO3340H-564KLD	560	10	0.86	0.91	2.3	1.4	1.5	1.5	0.30	0.45
DO3340H-684KLD	680	10	1.1	1.2	2.0	1.3	1.3	1.3	0.30	0.45
DO3340H-824KLD	820	10	1.3	1.4	1.8	1.2	1.2	1.2	0.25	0.37
DO3340H-105KLD	1000	10	1.5	1.6	1.5	1.0	1.1	1.1	0.20	0.30

注释

When ordering, please specify termination code: e.g. DO3340H-105KLD
Inductance tested at 10 kHz, 0.1 Vrms, 0 A using an Agilent/HP 4263B LCR meter or equivalent.
SRF measured using Agilent/HP 8753D network analyzer.
Isat: DC current at which inductance drops 30% (typ) from its value without current. For other operating temperatures, use this DCR at Temperature calculator.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.

端子:

L = RoHS compliant tin-silver-copper over copper.
S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (350 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

环境

环境:

符合RoHS

环境温度范围:

−40°C to +85°C with Irms current

储存温度范围:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

最高元件温度:

+125°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

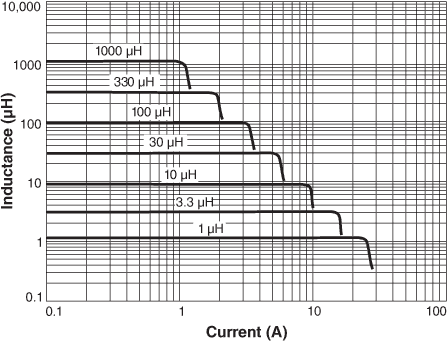

Inductance vs Current

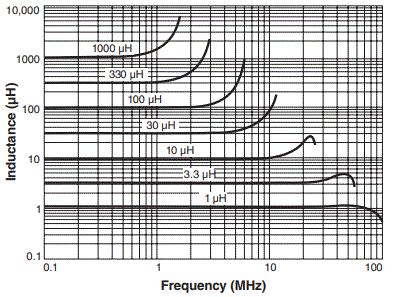

Inductance vs Frequency

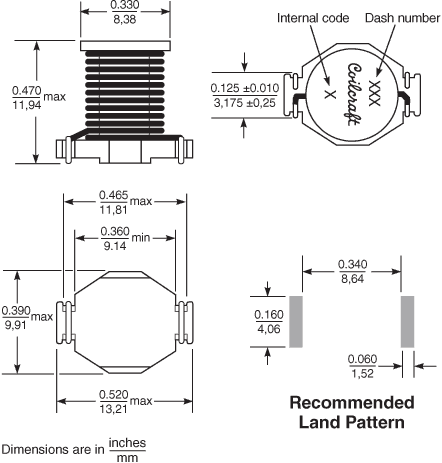

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
350	330	100	13	30,4	24,4	24	16	4	2	11,8	0,45

一般规格

核心材料:

Ferrite

重量:

1.907 – 2.856 g

包装:

350 per 13″ reel; Plastic tape: 24 mm wide, 0.5 mm thick, 16 mm pocket spacing, 11.7 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
