DO3316T Series

High Temperature Power Inductors

Coilcraft DO3316T Series unshielded surface-mount power inductors offer proven performance at a great value. They provide high saturation current ratings, high energy storage, and low resistance.

Open magnetic flux path
High saturation current ratings
High energy storage
Industry standard footprint
AEC-Q200 Grade 1 (−40°C to +125°C)

立即购买:

零件号

查找我的元件

计数	单价
1	$1.61
750	$1.34
1500	$1.17
3000	$1.00
6000	$0.92

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

M = 20%

Termination

L = Tin-silver-copper

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C396	33 (3 of each)	$100.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2	公差 (%) 3	DCR max (Ω) 4	SRF typ (MHz) 5	Isat (mA) 6	Irms (A) 7
零件号 1	电感 (µH) 2	公差 (%) 3	DCR max (Ω) 4	SRF typ (MHz) 5	Isat (mA) 6	Irms (A) 7	40°C rise
DO3316T-331ML_	0.33	20	0.002	200	20000	16
DO3316T-681ML_	0.68	20	0.005	200	13000	12
DO3316T-102ML_	1.0	20	0.006	100	11000	10
DO3316T-152ML_	1.5	20	0.008	90.0	9000	9
DO3316T-222_L_	2.2	10,20	0.011	90.0	7800	7.4
DO3316T-272_L_	2.7	10,20	0.012	65.0	7000	6.6
DO3316T-332_L_	3.3	10,20	0.014	60.0	6400	5.9
DO3316T-392_L_	3.9	10,20	0.015	50.0	5900	5.3
DO3316T-472_L_	4.7	10,20	0.018	50.0	5400	4.8
DO3316T-562_L_	5.6	10,20	0.021	45.0	4700	4.65
DO3316T-682_L_	6.8	10,20	0.024	43.0	4400	4.4
DO3316T-822_L_	8.2	10,20	0.032	34.0	4000	4.15
DO3316T-103_L_	10	10,20	0.034	31.0	3900	3.9
DO3316T-123_L_	12	10,20	0.036	27.0	3400	3.5
DO3316T-153_L_	15	10,20	0.045	25.0	3100	3.1
DO3316T-183_L_	18	10,20	0.050	22.0	2800	2.9
DO3316T-223_L_	22	10,20	0.070	18.0	2500	2.7
DO3316T-273_L_	27	10,20	0.085	18.0	2300	2.3
DO3316T-333_L_	33	10,20	0.100	17.0	2000	2.1
DO3316T-393_L_	39	10,20	0.120	15.0	1800	1.95
DO3316T-473_L_	47	10,20	0.150	14.0	1650	1.8
DO3316T-563_L_	56	10,20	0.165	12.0	1450	1.65
DO3316T-683_L_	68	10,20	0.220	11.0	1400	1.5
DO3316T-823_L_	82	10,20	0.250	10.0	1300	1.4
DO3316T-104_L_	100	10,20	0.280	9.0	1200	1.3
DO3316T-124_L_	120	10,20	0.400	8.0	1000	1
DO3316T-154_L_	150	10,20	0.460	6.0	900	0.9
DO3316T-184_L_	180	10,20	0.520	6.0	850	0.85
DO3316T-224_L_	220	10,20	0.700	5.0	800	0.8
DO3316T-274_L_	270	10,20	0.800	5.0	750	0.7
DO3316T-334_L_	330	10,20	1.070	4.5	600	0.6
DO3316T-394_L_	390	10,20	1.140	4.0	620	0.55
DO3316T-474_L_	470	10,20	1.270	3.5	500	0.5

注释

When ordering, please specify tolerance and packaging cods: e.g. DO3316T-474MLD
Inductance tested at 100 kHz, 0.1 Vrms using an Agilent/HP 4263B LCR meter or equivalent.
Tolerances in bold are stocked for immediate shipment.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 8753D network analyzer. Details
Isat: DC current at 25°C that causes a 10% (typ) inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

公差:

M = 20%, K = 10% (Table above shows stock tolerances in bold.)

端子:

RoHS compliant tin-silver-copper over copper. Other terminations available at additional cost.

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (750 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +125°C with Irms current

储存温度范围:

Component: −40°C to +165°C
Tape and reel packaging: −40°C to +80°C

最高元件温度:

+165°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

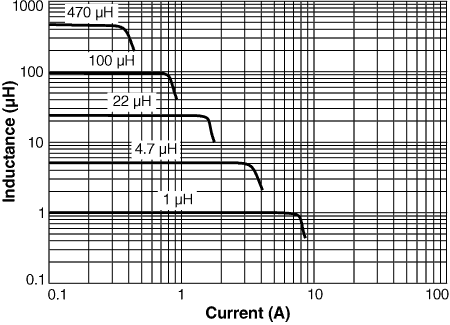

Inductance vs Current

At 125°C ambient>

Inductance vs Current

At 25°C ambient

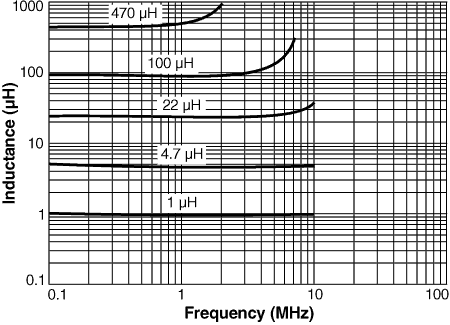

Inductance vs Frequency

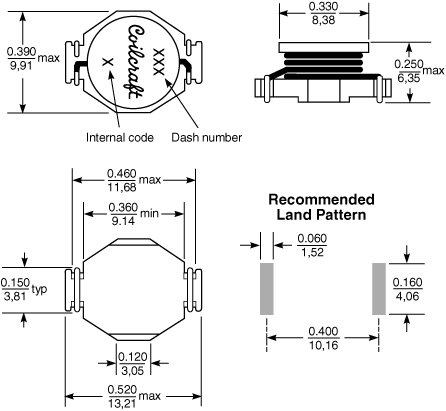

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Parts per reel‡
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
750	330	100	13	30,4	24,4	24	12	4	2	6,4	0,35

‡ Part marking does not indicate polarity

一般规格

核心材料:

Ferrite

重量:

0.95 – 1.25 g

包装:

750/13″ reel Plastic tape: 24 mm wide, 0.35 mm thick, 12 mm pocket spacing, 6.4 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
