DO3316P Series

Surface Mount Power Inductors

Coilcraft DO3316P Series unshielded surface-mount power inductors offer proven performance at a great value. They provide high saturation current ratings, high energy storage, and low resistance.

Open magnetic flux path
High saturation current ratings
High energy storage
Industry standard footprint
Defense Supply Center CID A-A-59737

Need parts for space, military or other critical applications?
See Coilcraft ST563PKP Series

立即购买:

零件号

查找我的元件

计数	单价
1	$1.19
500	$0.95
1000	$0.71
2000	$0.55
5000	$0.43

对于大批量采购或非库存产品，点击这里请求报价。

Termination

L = Gold over nickel

Packaging

D = 13" machine-ready reel

Tolerance

M = 20%

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C378	21 (3 of each)	$60.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2	公差 (%) 3	DCR max (Ω) 4	SRF typ (MHz) 5	Isat (mA) 6	Irms (A) 7
零件号 1	电感 (µH) 2	公差 (%) 3	DCR max (Ω) 4	SRF typ (MHz) 5	Isat (mA) 6	Irms (A) 7
DO3316P-102ML_	1.0	20	0.0090	100	9000	6.8
DO3316P-152ML_	1.5	20	0.010	90.0	8000	6.4
DO3316P-222_L_	2.2	10,20	0.012	80.0	7000	6.1
DO3316P-332_L_	3.3	10,20	0.015	65.0	6400	5.4
DO3316P-472_L_	4.7	10,20	0.018	45.0	5400	4.8
DO3316P-682_L_	6.8	10,20	0.027	38.0	4600	4.4
DO3316P-103_L_	10	10,20	0.038	30.0	3800	3.9
DO3316P-153_L_	15	10,20	0.046	27.0	3000	3.1
DO3316P-223_L_	22	10,20	0.085	19.0	2300	2.7
DO3316P-333_L_	33	10,20	0.10	15.0	2000	2.1
DO3316P-473_L_	47	10,20	0.14	12.0	1600	1.8
DO3316P-683_L_	68	10,20	0.20	10.0	1400	1.5
DO3316P-104_L_	100	10,20	0.28	9.0	1200	1.3
DO3316P-154_L_	150	10,20	0.40	6.0	1000	1.0
DO3316P-224_L_	220	10,20	0.61	5.0	800	0.80
DO3316P-334_L_	330	10,20	1.0	4.0	600	0.60
DO3316P-474_L_	470	10,20	1.3	4.0	500	0.50
DO3316P-684_L_	680	10,20	2.0	2.0	400	0.40
DO3316P-105_L_	1000	10,20	3.0	2.0	300	0.30
DO3316P-155_L_	1500	10,20	4.5	1.7	290	0.27
DO3316P-335_L_	3300	10,20	9.0	1.1	190	0.17

注释

When ordering, please specify tolerance, termination and packaging codes: e.g. DO3316P-105MLD
Inductance tested at 100 kHz, 0.1 Vrms using an Agilent/HP 4263B LCR meter or equivalent.
Tolerances in bold are stocked for immediate shipment.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
For SRF >13 MHz, measured using an Agilent/HP 8753D network analyzer. For SRF <13 MHz, measured using an Agilent/HP 4192A. Details
Isat: DC current at 25°C that causes a 10% (typ) inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

公差:

M = 20%, K = 10% (Table above shows stock tolerances in bold.)

端子:

L = RoHS compliant gold over nickel over phos bronze.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (1000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

−40°C to +85°C with Irms current

储存温度范围:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

最高元件温度:

+125°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

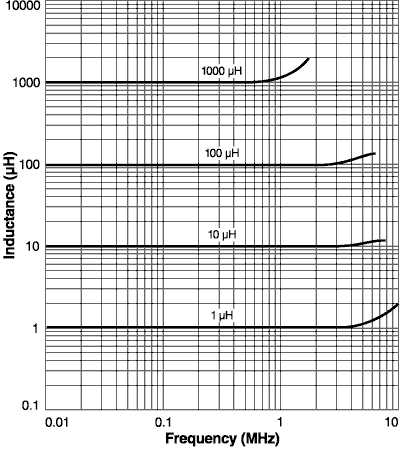

Inductance vs Frequency

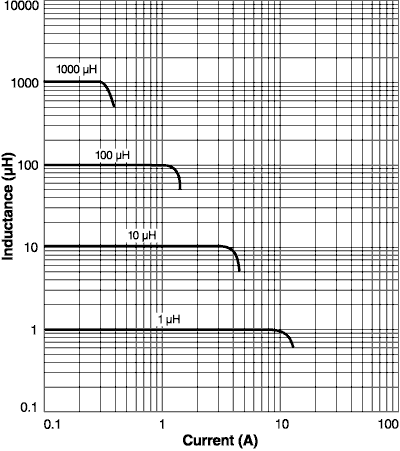

Inductance vs Current

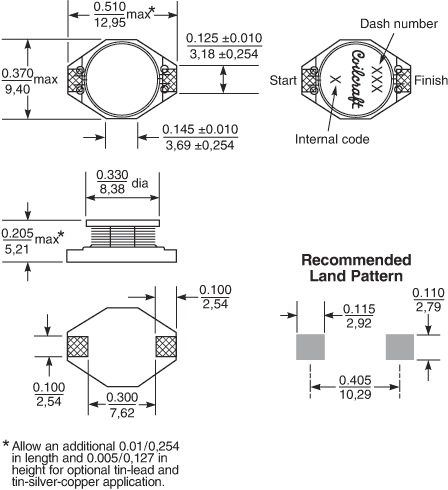

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation ‡
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T	or
1000	330	100	13	30,4	24,4	24	12	4	2	5,8	0,33

‡ Dot marking does not indicate polarity

一般规格

核心材料:

Ferrite

重量:

0.92– 1.23 g

包装:

1000 per 13″ reel Plastic tape: 24 mm wide, 0.33 mm thick, 12 mm pocket spacing, 5.8 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info .
