DO1608C Series

Surface Mount Power Inductors

Coilcraft DO1608C Series unshielded surface-mount power inductors offer proven performance at a great value. They provide high saturation current ratings, high energy storage, and low resistance.

Open magnetic flux path
High saturation current ratings
High energy storage
Industry standard footprint
Defense Supply Center CID A-A-59742

Need parts for space, military or other critical applications?
See Coilcraft ST485PKA Series

立即购买:

零件号

查找我的元件

计数	单价
1	$0.99
750	$0.78
1500	$0.60
3000	$0.46
6000	$0.39

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

M = 20%

Termination

L = Gold over nickel over moly-manganese

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C377	21 (3 of each)	$60.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2	公差 (%) 3	DCR max (Ω) 4	SRF typ (MHz)	Isat (mA) 5	Irms (A) 6
零件号 1	电感 (µH) 2	公差 (%) 3	DCR max (Ω) 4	SRF typ (MHz)	Isat (mA) 5	20°C rise	40°C rise
DO1608C-102ML_	1.0	20	0.05	130	2900	1.9	2.7
DO1608C-152ML_	1.5	20	0.06	115	2600	1.9	2.7
DO1608C-222ML_	2.2	20	0.07	100	2300	1.9	2.6
DO1608C-272ML_	2.7	20	0.08	75.0	2100	1.8	2.5
DO1608C-332ML_	3.3	20	0.08	70.0	2000	1.6	2.2
DO1608C-472ML_	4.7	20	0.09	50.0	1500	1.4	1.9
DO1608C-682ML_	6.8	20	0.13	45.0	1200	1.2	1.6
DO1608C-822ML_	8.2	20	0.16	40.0	1150	1.1	1.6
DO1608C-103ML_	10	20	0.16	35.0	1100	1.1	1.5
DO1608C-153ML_	15	20	0.23	30.0	900	0.90	1.3
DO1608C-223_L_	22	20,10	0.37	20.0	700	0.75	0.95
DO1608C-333_L_	33	20,10	0.51	15.0	580	0.60	0.80
DO1608C-473_L_	47	20,10	0.64	14.0	500	0.52	0.70
DO1608C-683_L_	68	20,10	0.86	11.0	400	0.44	0.60
DO1608C-104_L_	100	20,10	1.27	9.0	310	0.37	0.50
DO1608C-154_L_	150	20,10	2.00	6.0	270	0.28	0.39
DO1608C-224_L_	220	20,10	3.11	5.5	220	0.23	0.31
DO1608C-334_L_	330	20,10	3.80	5.0	180	0.22	0.30
DO1608C-474_L_	470	20,10	5.06	4.0	160	0.20	0.26
DO1608C-684_L_	680	20,10	9.20	3.0	140	0.14	0.19
DO1608C-105_L_	1000	20,10	13.80	2.0	100	0.11	0.15

注释

When ordering, please specify termination and packaging codes: e.g. DO1608C-105MLC
Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/HP 4263B LCR meter or equivalent.
Tolerances in bold are stocked for immediate shipment
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
Isat: DC current at 25°C that causes a 10% (typ.) inductance drop from its value without current.
Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

公差:

K = 10%, M = 20% (Table shows stock tolerances in bold.)

端子:

L = Gold over nickel over moly-manganese terminations.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

C = 7" machine-ready reel
EIA-481 embossed plastic tape (750 per full reel).
B = Less than full reel
Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.
D = 13" reel, machine-ready
EIA-481 embossed plastic tape. Factory order only, not stocked (2500 per full reel).

环境

环境:

符合RoHS

环境温度范围:

−40°C to +85°C with Irms current

储存温度范围:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

最高元件温度:

+125°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

Inductance vs Frequency

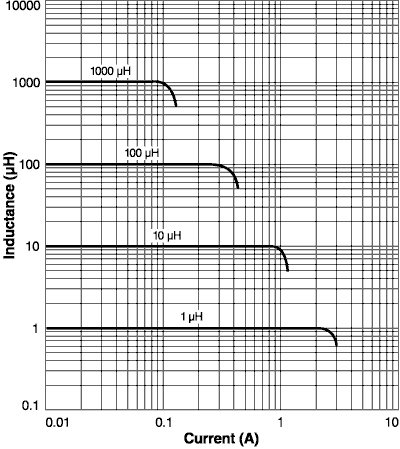

Inductance vs Current

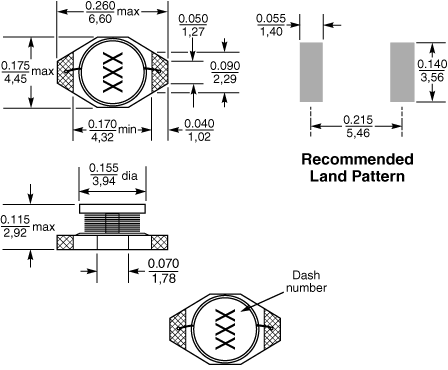

物理特性

卷装规格


Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation ‡
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T	or
750	2500*	178/330	60/100	13	18,4	12,4	12	8	4	2	3,0	0,28

* Special order
‡ Dot or number marking does not indicate polarity

一般规格

核心材料:

Ferrite

重量:

128– 164 mg

包装:

750/7″ reel; 2500/13″ reel Plastic tape: 12 mm wide, 0.28 mm thick, 4 mm pocket spacing, 3 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
