3D Model Datasheet

DO5022H-152

Name: DO5022H-152MLD
Brand: Coilcraft
SKU: DO5022H-152MLD
Price: 0.97 USD
Availability: InStock

DO5022H-152MLD

NOTE: We now offer an improved version of this series: DO5010H. It is electrically equivalent, has a smaller footprint and comes in more inductance values. Existing customers will continue to be supported.

有关该元件的更多信息和规格。

前往系列

立即购买:

计数	单价
1	$2.22
100	$1.91
250	$1.66
500	$1.24
1000	$0.97
2500	$0.77
5000	$0.61

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

M = 20%

Termination

L = Tin-silver

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2 (公差: ±20%)	DCR max (mΩ) 3	SRF typ (MHz) 4	Isat (mA) 5	Irms (A) 6
零件号 1	电感 (µH) 2 (公差: ±20%)	DCR max (mΩ) 3	SRF typ (MHz) 4	Isat (mA) 5	Irms (A) 6	40°C rise
DO5022H-152ML_	1.5	4.0	100	25000	15.0

注释

When ordering, please specify packaging code: e.g. DO5022H-153MLD
Inductance tested at 100 kHz, 0.1 Vrms
DCR measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using Agilent/HP 8753D network analyzer. Details
Isat: DC current at 25°C that causes a 10% (typ) inductance drop from its value without current.
Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

−40°C to +85°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

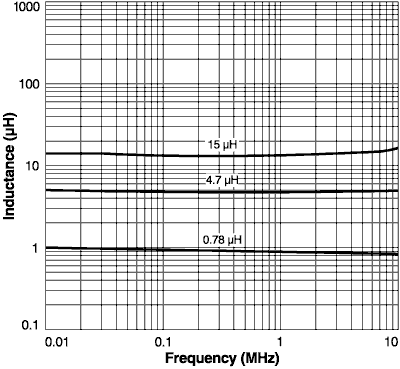

Inductance vs. Frequency

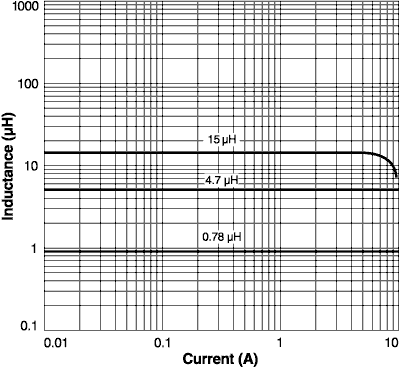

Inductance vs. Current

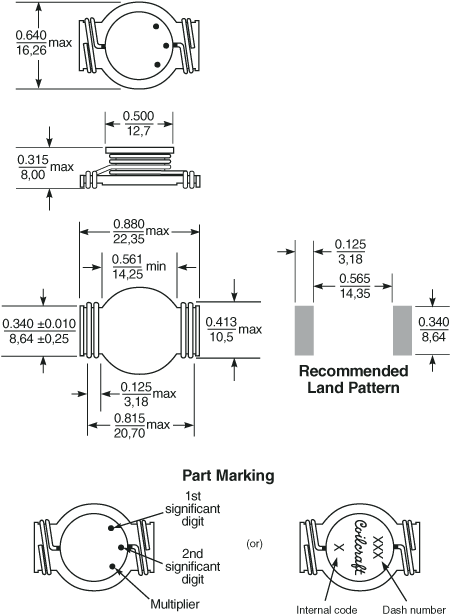

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Parts per reel‡
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T	or
250	330	100	13	50,4	44,4	44	24	4	2	8,1	0,35	or

‡ Dot or number marking does not indicate polarity

一般规格

重量:

3.673 – 4.426 g

包装:

Parts/reel: 13″ 250 Tape width: 44 mm

清洗

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
