XGL4012 Series

Ultra-Low Loss Shielded Power Inductors

XGL4012 molded power inductors offer our lowest DC losses and extremely low AC losses for a wide range of DC-DC converters. Additional performance benefits include a wider range of inductance values and improved I_rms current ratings.

The XGL4012 series ensures optimal power efficiency and reliability, meeting the demands of various applications. With their advanced design and engineering, these power inductors deliver exceptional performance and enhance overall system efficiency.

Unlock the advantages of the XGL4012 Series Ultra-Low Loss Shielded Power Inductors, providing an optimal solution for all your power conversion requirements.

Industry's lowest DCR and ultra-low AC losses
Superior current handling with soft saturation characteristics
Wide inductance range from 0.10 – 1.2 µH
AEC-Q200 Grade 1 (-40°C to +125°C)
RoHS-compliant, halogen free. 260°C compatible. Tin-silver (96.5/3.5) over copper terminations

立即购买:

零件号

查找我的元件

计数	单价
1	$1.93
100	$1.76
250	$1.32
500	$0.79
1000	$0.62
2500	$0.53
5000	$0.49

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

M = 20%

Termination

E = Tin-silver (96.5/3.5) over copper

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C517	7 (3 of each)	$45.00

规格

Electrical specifications at 25°C. Operating voltage 0 - 80 V

零件号 1	电感 (µH) 2 (公差: ±20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
零件号 1	电感 (µH) 2 (公差: ±20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
XGL4012-101ME_	0.10	2.4	2.9	270	8.9	14.6	21.5	13.8	19.7
XGL4012-221ME_	0.22	5.0	6.0	160	6.1	9.9	14.4	10.9	14.7
XGL4012-381ME_	0.38	9.1	10.9	110	4.5	7.3	10.7	8.8	12.0
XGL4012-451ME_	0.45	11.5	13.8	105	4.4	7.0	9.9	8.0	10.9
XGL4012-601ME_	0.60	14.6	17.5	88	3.6	5.9	8.4	6.6	9.0
XGL4012-102ME_	1.0	25.0	29.9	67	2.9	4.6	6.6	5.2	7.0
XGL4012-122ME_	1.2	29.5	35.3	58	2.6	4.2	6.0	4.8	6.6

注释

When ordering, please specify termination and packaging codes: e.g. XGL4012-122MEC
Inductance tested at 1 MHz, 0.1 Vrms, 0 Adc.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperature use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 4395A or equivalent
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.
Irms testing was performed on 0.75 inch wide × 0.25 inch thick copper traces in still air. Temperature rise is highly dependent on many factors including pcb land pattern, trace size, and proximity to other components. Therefore temperature rise should be verified in application conditions.

端子:

E = Halogen free component. RoHS compliant tin-silver over copper terminations.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

C = 7" machine-ready reel
EIA-481 embossed plastic tape (1500 parts per full reel).
Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13" machine-ready reel
EIA-481 embossed plastic tape. Factory order only, not stocked (5000 parts per full reel).

环境

环境:

符合RoHS , 无卤素

环境温度范围:

−40°C to +125°C with (40°C rise) Irms

储存温度范围:

Component: –55°C to +165°C.
Tape and reel packaging: –55°C to +80°C

最高元件温度:

+165°C (ambient + temp rise).

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

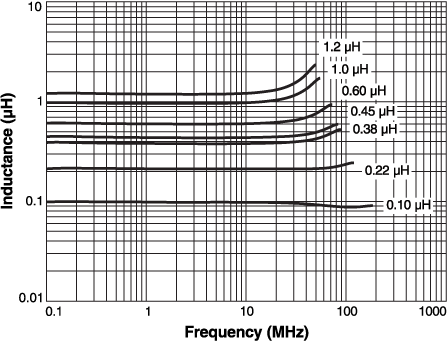

L vs Frequency

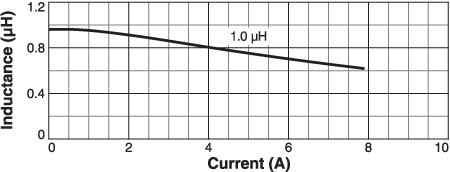

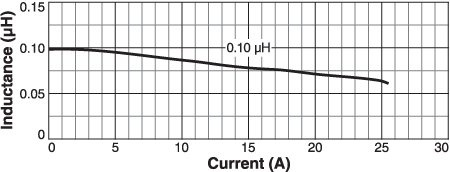

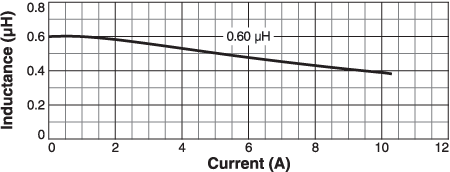

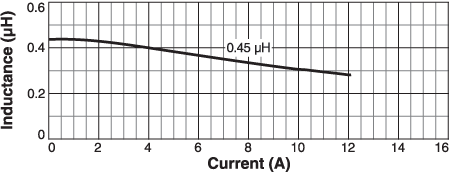

L vs Current

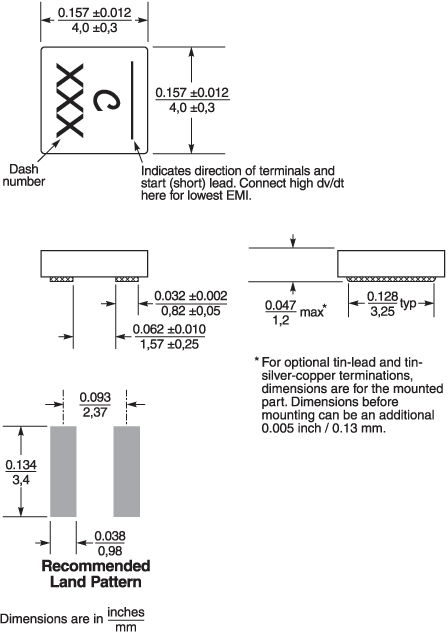

物理特性

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
1500	5000*	178/330	60/100	13	18,4	12,4	12	8	4	2	1,4	0,23

* Special order

一般规格

核心材料:

Composite

重量:

0.10 - 0.12 g

包装:

1500/7″ reel; 5000/13″ reel Plastic tape: 12 mm wide, 0.23 mm thick, 8 mm pocket spacing, 1.4 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
