XGL1010 Series

Ultra-Low Loss Shielded Power Inductors

XGL1010 molded power inductors offer our lowest DC losses and extremely low power losses for a wide range of DC-DC converters. Additional performance benefits include a wider range of inductance values and improved Irms current ratings.

Industry’s lowest DCR and low power losses
Wide inductance range up to 56 µH
High current handling with soft saturation characteristics
AEC-Q200 Grade 1 (–40°C to +125°C) with a 165°C max part temperature

立即购买:

零件号

查找我的元件

计数	单价
1	$5.41
100	$4.74
300	$3.55
600	$2.14
1200	$1.67
2400	$1.43
5000	$1.32

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

M = 20%

Termination

E = Tin-silver (96.5/3.5) over copper

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C509	49 (3 of each)	$125.00
C516	17 (3 of each)	$55.00

规格

Electrical specifications at 25°C. Operating voltage 0 — 60 V

零件号 1	电感 (µH) 2 (公差: ±20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
零件号 1	电感 (µH) 2 (公差: ±20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
XGL1010-271MED	0.27	0.47	0.57	96.0	44.0	74.0	117.0	40.8	54.0
XGL1010-521MED	0.52	0.68	0.80	56.0	33.0	54.0	76.0	39.8	52.0
XGL1010-801MED	0.80	0.88	1.1	47.0	29.0	46.0	64.0	36.0	48.0
XGL1010-122MED	1.2	1.2	1.4	37.0	24.0	39.0	50.0	31.5	41.5
XGL1010-152MED	1.5	1.5	1.7	31.0	21.0	33.0	45.0	31.1	40.7
XGL1010-222MED	2.2	2.3	2.6	25.0	15.0	26.0	36.0	24.6	33.0
XGL1010-332MED	3.3	3.2	3.7	21.0	14.0	24.0	34.0	19.2	26.0
XGL1010-472MED	4.7	4.0	4.6	18.0	12.0	21.0	29.0	18.0	24.7
XGL1010-562MED	5.6	5.2	5.9	16.0	10.0	17.0	24.0	17.5	24.0
XGL1010-682MED	6.8	6.2	7.0	14.0	9.3	16.0	22.0	15.7	21.2
XGL1010-822MED	8.2	8.0	9.0	13.0	8.7	14.0	20.0	14.1	18.7
XGL1010-103MED	10	8.7	9.7	12.0	8.3	13.0	18.0	13.7	18.2
XGL1010-153MED	15	13.6	15.2	10.0	7.0	11.0	16.0	11.4	15.4
XGL1010-223MED	22	19.6	22.0	8.0	5.6	9.3	13.0	9.8	13.2
XGL1010-333MED	33	29.9	33.5	6.6	4.6	7.6	10.0	6.1	8.5
XGL1010-473MED	47	40.9	46.9	4.9	3.7	6.1	8.4	5.1	7.0
XGL1010-563MED	56	49.9	55.9	4.6	3.3	5.3	7.6	4.6	6.3

注释

When ordering, please specify termination code: e.g. XGL1010-563MED

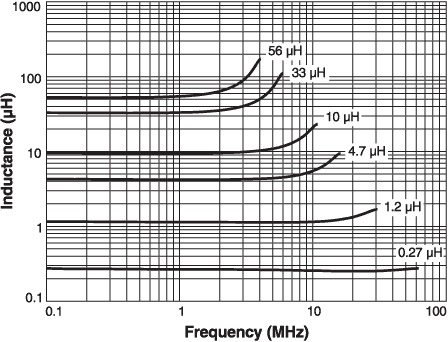

Inductance tested at 1 MHz, 0.1 Vrms, 0 Adc.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 4395A or equivalent.

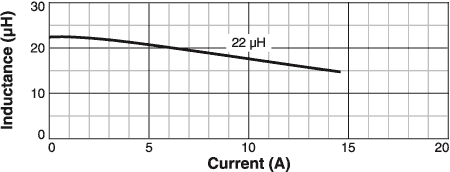

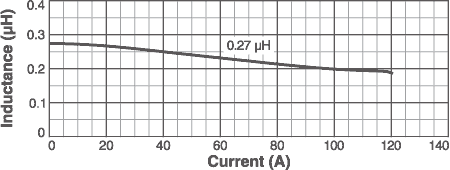

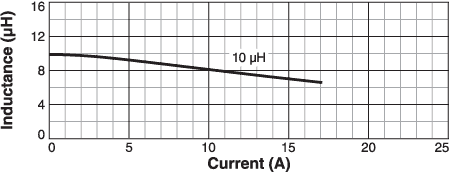

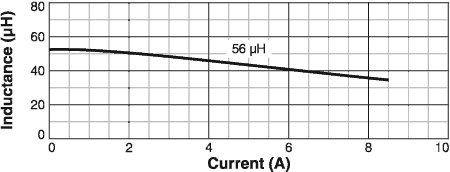

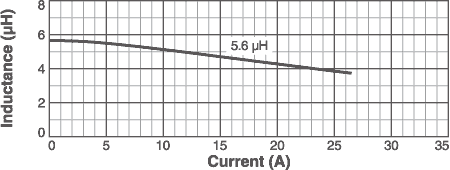

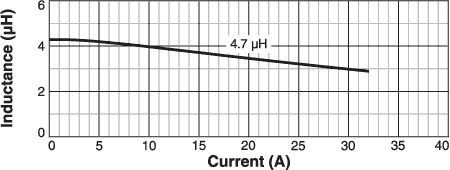

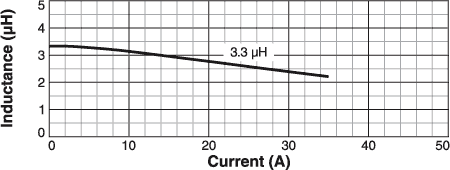

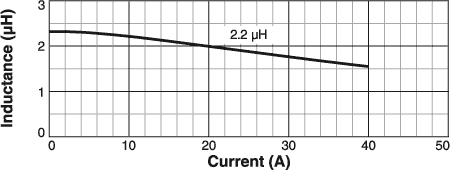

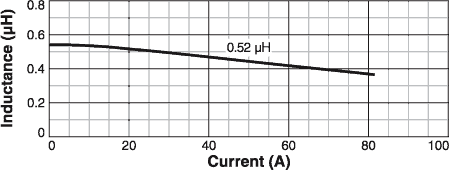

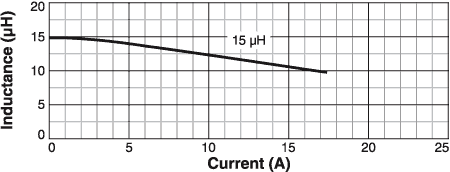

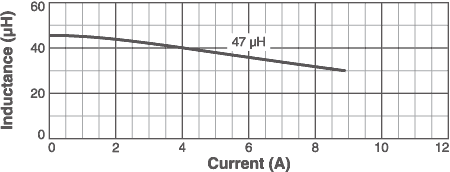

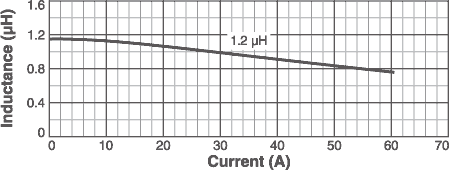

Isat: DC current at 25°C that causes the specified inductance drop from its value without current.
Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.
Irms testing was performed on 0.75 inch wide × 0.25 inch thick copper traces in still air. Temperature rise is highly dependent on many factors including pcb land pattern, trace size, and proximity to other components. Therefore temperature rise should be verified in application conditions.

端子:

E = Halogen free component. RoHS compliant tin-silver over copper terminations.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

D = 13" machine-ready reel
EIA-481 embossed plastic tape (300 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +125°C with (40°C rise) Irms current

储存温度范围:

Component: –55°C to +165°C.
Tape and reel packaging: –55°C to +80°C

最高元件温度:

+165°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations
