XFL3012 Series

Ultra-Low DCR Shielded Power Inductors

符合RoHS 无卤素 AEC-Q flag
XFL3012 power inductors have the lowest profiles of our molded power inductors. They provide high current handling with low DCR and low AC losses.
  • Low profile with traditional saturation
  • High current handling with low DCR
  • Magnetically shielded
  • Composite construction minimizes audible buzzing
  • No thermal-aging and perfect for high-temperature applications
  • AEC-Q200 Grade 3 qualified (−40°C to +85°C ambient)
立即购买:
计数 单价
1 $1.66
100 $1.45
250 $1.10
500 $0.65
1000 $0.52
2000 $0.44

对于大批量采购或非库存产品,点击这里请求报价

. 现货,可今天发货.
索取样品:
设计套件:
套件 电感值 价格
C440 37 (5 of each) $125.00
C509 49 (3 of each) $125.00

规格

Electrical specifications at 25°C. Operating voltage 0 – 40 V

零件号 1 电感 (µH) 2
(公差: ±20%)
DCR (Ω) 3 SRF typ (MHz) 4 Isat (A) 5 Irms (A) 6
typ max 10% drop 20% drop 30% drop 20°C rise 40°C rise
XFL3012-331ME_ 0.33 0.023 0.027 293 2.3 3.0 3.4 2.6 3.5
XFL3012-561ME_ 0.56 0.028 0.032 203 1.8 2.5 2.9 2.2 3.0
XFL3012-681ME_ 0.68 0.034 0.040 164 1.6 2.2 2.7 2.1 2.8
XFL3012-102ME_ 1.0 0.039 0.046 115 1.4 1.9 2.3 1.9 2.6
XFL3012-152ME_ 1.5 0.060 0.072 94.4 1.3 1.8 2.2 1.6 2.2
XFL3012-222ME_ 2.2 0.081 0.097 73.2 1.0 1.3 1.6 0.58 1.9
XFL3012-332ME_ 3.3 0.11 0.13 61.6 0.87 1.2 1.4 1.2 1.6
XFL3012-472ME_ 4.7 0.14 0.17 52.6 0.72 1.0 1.2 1.0 1.4
XFL3012-682ME_ 6.8 0.17 0.20 39.9 0.61 0.84 0.97 0.94 1.3
XFL3012-103ME_ 10 0.26 0.31 34.6 0.50 0.65 0.74 0.90 1.2
XFL3012-153ME_ 15 0.39 0.48 25.8 0.43 0.58 0.65 0.74 1.0
XFL3012-223ME_ 22 0.61 0.63 21.0 0.32 0.45 0.52 0.58 0.80
XFL3012-333ME_ 33 0.86 0.90 16.6 0.23 0.32 0.38 0.42 0.57
XFL3012-393ME_ 39 0.92 0.99 15.9 0.23 0.32 0.37 0.39 0.54
XFL3012-473ME_ 47 1.2 1.3 13.7 0.21 0.28 0.32 0.33 0.46
XFL3012-563ME_ 56 1.4 1.5 12.1 0.19 0.26 0.30 0.32 0.44
XFL3012-683ME_ 68 2.2 2.4 10.9 0.16 0.21 0.25 0.31 0.42
XFL3012-823ME_ 82 2.3 2.4 10.8 0.15 0.21 0.24 0.26 0.34
XFL3012-104ME_ 100 2.6 3.0 9.4 0.17 0.24 0.28 0.29 0.39
XFL3012-224ME_ 220 6.8 8.0 6.1 0.090 0.14 0.16 0.17 0.23
注释
  1. When ordering, please specify termination and packaging codes: e.g. XFL3012-224MEC
  2. Inductance tested at 1 MHz, 0.1 Vrms, 0 Adc.
  3. DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
  4. SRF measured using an Agilent/HP 4395A or equivalent.
  5. Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
  6. Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

  • E = RoHS compliant tin-silver-copper (96.5/3/0.5) over tin over nickel over silver-platinum.
  • S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

  • C = 7″ machine-ready reel. EIA-481 embossed plastic tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.
  • D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (7500 parts per full reel).
环境
环境:
符合RoHS , 无卤素
环境温度范围:
–40°C to +85°C with (40°C rise) Irms
储存温度范围:
Component: –55°C to +125°C.
Tape and reel packaging: –55°C to +80°C
最高元件温度:
+125°C (ambient + temp rise)
故障率(FIT)/平均故障间隔时间(MTBF):

性能曲线

Inductance vs. Frequency

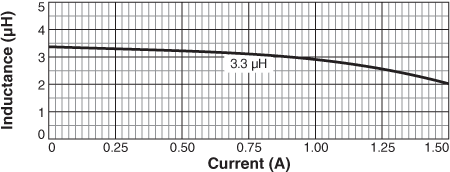

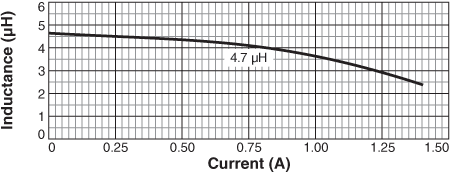

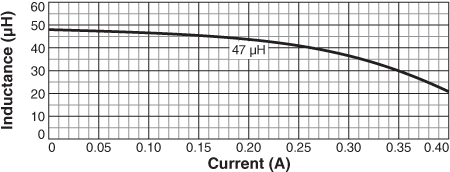

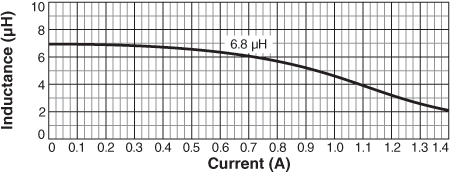

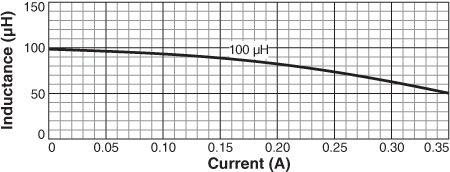

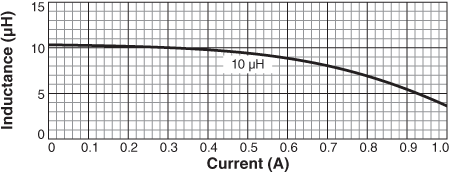

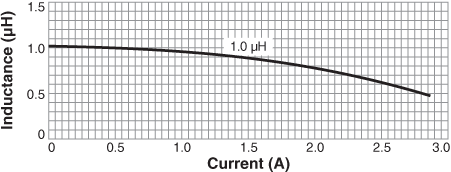

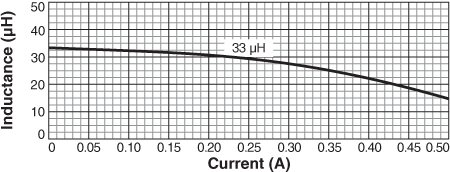

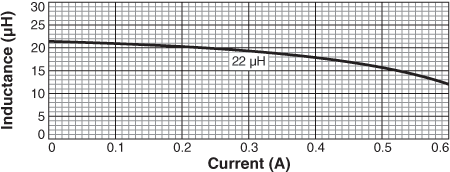

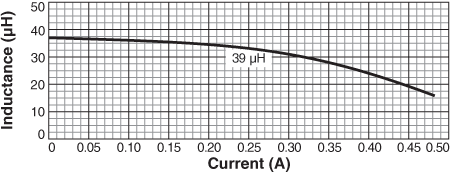

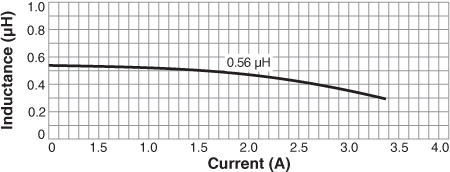

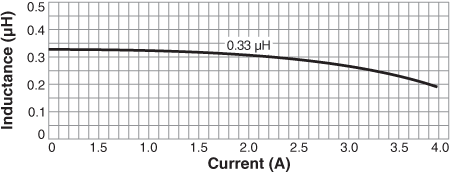

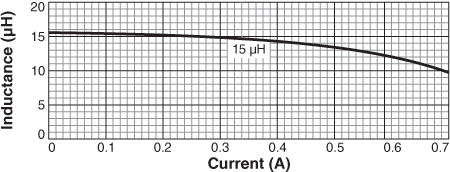

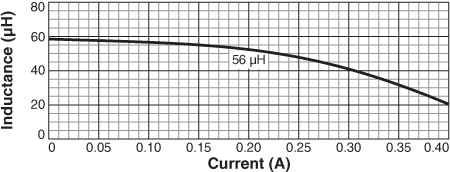

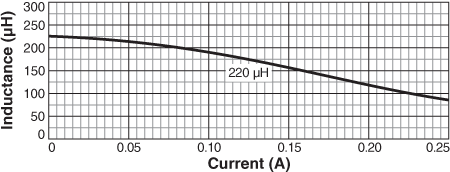

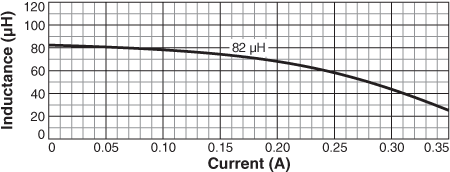

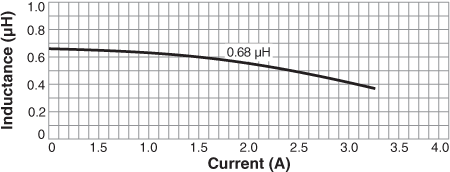

Inductance vs. Current

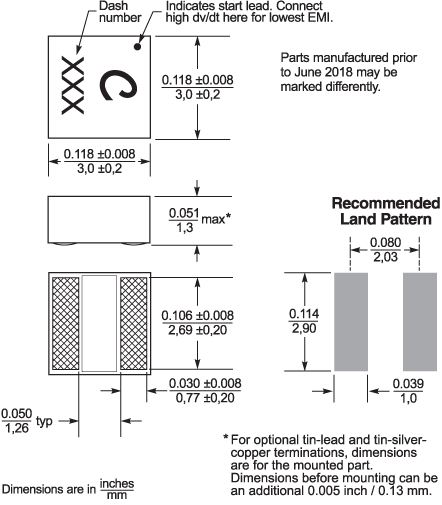

物理特性


卷装规格



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
7" (178 mm) 13" (330 mm) A B C D E W P Po P1 H T part_or_ac.gif
2000 7500* 178/330 60/100 13 14,4 8,4 8 4 4 2 1,55 0,23
* Special order

一般规格

核心材料:
Composite
重量:
53 mg
包装:
2000/7″ reel; 7500/13″ reel Plastic tape: 8 mm wide, 0.23 mm thick, 4 mm pocket spacing, 1.55 mm pocket depth

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
