XFL2010 Series

Ultra-Low Profile Shielded Power Inductors

XFL2010 Series power inductors are among our smallest molded power inductors. They offer a high voltage rating of 40 V, which is much higher than similarly-sized competitive products. The XFL2010 also provides high current handling with low DCR and low AC losses. These ultra-low-profile power inductors are suitable for a wide range of applications from smart phones, IoT and wearable devices, to industrial and automotive applications.

High current handling with very low DCR
Magnetically shielded
Composite construction minimizes audible buzzing
No thermal-aging and perfect for high-temperature applications
AEC-Q200 Grade 1 (–40°C to +125°C)
- AEC-Q200 Grade 3 (–40°C to +85°C) for value -224 only

Need parts for space, military or other critical applications?
See Coilcraft AE338PZA Series

立即购买:

零件号

查找我的元件

计数	单价
1	$1.81
50	$1.57
100	$1.20
250	$0.86
500	$0.76
1000	$0.60
2000	$0.51
6000	$0.47

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

M = 20%

Termination

E = Tin-silver-copper (96.5/3/0.5) over tin over nickel over silver-platinum

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C509	49 (3 of each)	$125.00
C513	23 (5 of each)	$65.00

规格

Electrical specifications at 25°C. Operating voltage 0 – 40 V

零件号 1	电感 (µH) 2 (公差: ±20%)	DCR (Ω) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
零件号 1	电感 (µH) 2 (公差: ±20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
XFL2010-400ME_	0.04	0.012	0.016	2200	5.500	7.500	8.600	3.40	4.80
XFL2010-121ME_	0.12	0.017	0.022	730	3.000	4.250	4.900	2.70	3.70
XFL2010-221ME_	0.22	0.020	0.025	400	2.100	3.200	3.750	2.30	3.10
XFL2010-381ME_	0.38	0.028	0.033	280	1.700	2.500	3.050	2.10	2.85
XFL2010-601ME_	0.6	0.047	0.054	200	1.300	1.950	2.320	1.75	2.35
XFL2010-821ME_	0.82	0.052	0.061	160	1.050	1.520	1.950	1.60	2.15
XFL2010-102ME_	1.0	0.072	0.083	130	0.950	1.420	1.680	1.30	1.80
XFL2010-152ME_	1.5	0.100	0.115	110	0.750	1.160	1.450	1.15	1.55
XFL2010-222ME_	2.2	0.136	0.156	90	0.700	1.060	1.250	1.00	1.35
XFL2010-332ME_	3.3	0.185	0.213	65	0.600	0.850	1.000	0.88	1.20
XFL2010-472ME_	4.7	0.278	0.320	60	0.420	0.640	0.780	0.68	0.91
XFL2010-682ME_	6.8	0.352	0.405	50	0.390	0.610	0.720	0.58	0.79
XFL2010-822ME_	8.2	0.445	0.511	40	0.380	0.550	0.620	0.56	0.76
XFL2010-103ME_	10.0	0.517	0.595	36	0.290	0.450	0.560	0.51	0.67
XFL2010-183ME_	18.0	1.020	1.170	29	0.245	0.370	0.435	0.34	0.46
XFL2010-223ME_	22.0	1.300	1.500	23	0.190	0.280	0.340	0.31	0.42
XFL2010-333ME_	33.0	1.860	2.140	18	0.160	0.240	0.285	0.26	0.35
XFL2010-473ME_	47.0	2.530	2.910	16	0.130	0.200	0.250	0.25	0.31
XFL2010-563ME_	56.0	3.180	3.660	15	0.120	0.175	0.215	0.20	0.27
XFL2010-683ME_	68.0	3.460	3.980	13	0.110	0.170	0.210	0.19	0.26
XFL2010-823ME_	82.0	5.050	5.810	12	0.096	0.150	0.185	0.16	0.21
XFL2010-104ME_	100.0	6.070	6.980	11	0.092	0.140	0.172	0.15	0.20
XFL2010-224ME_	220.0	11.880	13.660	6	0.060	0.094	0.113	0.11	0.14

注释

When ordering, please specify termination and packaging codes: e.g. XFL2010-224MEC
Inductance tested at 1 MHz, 0.1 Vrms, 0 Adc.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 4395A or equivalent.
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

E = RoHS compliant tin-silver-copper (96.5/3/0.5) over tin over nickel over silver-platinum.
S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (7500 parts per full reel).

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +165°C with (40°C rise) Irms current; –40°C to +85°C with (40°C rise) for -224 value only

储存温度范围:

Component: –55°C to +165°C; +125°C for -224 only
Tape and reel packaging: –55°C to +80°C

最高元件温度:

+165°C (ambient + temp rise); +125°C for -224 only

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

Inductance vs Current

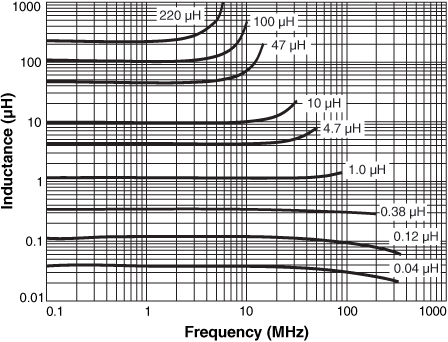

Inductance vs Frequency

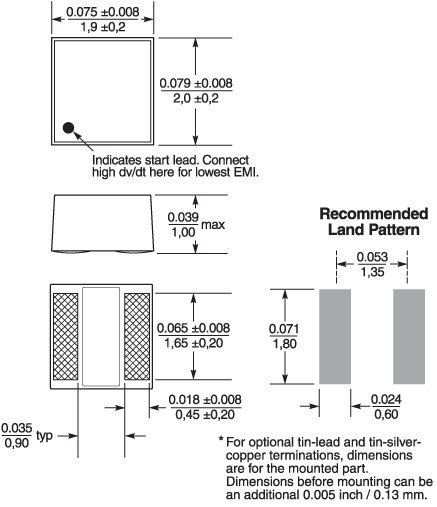

物理特性

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	7500*	178/330	60/100	13	14,4	8,4	8	4	4	2	1,19	0,23

* Special order

一般规格

核心材料:

Composite

重量:

19 - 21 mg

包装:

2000/7″ reel; 7500/13″ reel Plastic tape: 8 mm wide, 0.23 mm thick, 4 mm pocket spacing, 1.19 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
