PFL3215 Series

Shielded Power Inductors

PFL3215 ultra-small molded power inductors offer the perfect combination of size, performance and price. PFL inductors feature soft saturation for high peak currents and magnetic shielding for high-density packaging.

Tiny, cost-effective molded power inductors
Soft saturation for peak current handling
Magnetically shielded
No thermal aging

立即购买:

零件号

查找我的元件

计数	单价
1	$1.01
100	$0.87
250	$0.76
500	$0.46
1000	$0.38
2000	$0.32
4000	$0.30

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

M = 20%

Termination

E = Matte tin over nickel

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2 (公差: ±20%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (mA) 5			Irms (mA) 6
零件号 1	电感 (µH) 2 (公差: ±20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
PFL3215-681ME_	0.68	28.0	33.0	450	2100	2500	2700	1500	2100
PFL3215-102ME_	1.0	30.0	38.0	375	1800	2100	2300	1400	1900
PFL3215-222ME_	2.2	114	130	250	950	1200	1400	1100	1400
PFL3215-332ME_	3.3	175	195	190	730	920	1100	820	1100
PFL3215-472ME_	4.7	332	372	170	640	810	900	520	720
PFL3215-682ME_	6.8	640	720	155	600	700	750	370	500
PFL3215-103ME_	10	1290	1340	125	500	550	600	300	390
PFL3215-153ME_	15	1800	2100	105	350	420	440	240	320
PFL3215-333ME_	33	1700	1920	13.5	290	340	360	270	360

注释

When ordering, please specify termination and packaging codes: e.g. PFL3215-103MEC
Inductance tested at 7.9 MHz, 0.1 Vrms using a Coilcraft SMD-A test fixture with an Agilent/HP 4286 impedance analyzer and Coilcraft provided correlation pieces.
DCR measured at 25°C using a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 8753D network analyzer and a Coilcraft SMD-D test fixture.
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

E = Halogen free component. RoHS-compliant matte tin over nickel over silver-platinum-glass frit terminations.
Q = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
P = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (2000 parts per full reel).
B = Less than full reel. In tape, but not machine ready. To have a leader and trailer added ($25 charge), use code letter C instead.
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (7500 parts per full reel).

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +85°C with (40°C rise) Irms current

储存温度范围:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+125°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

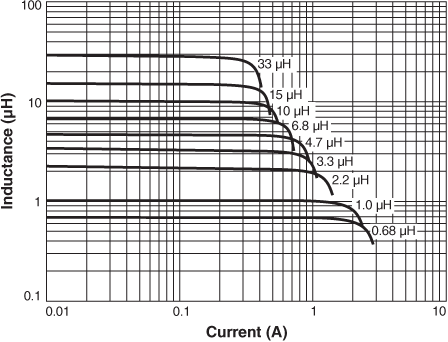

Inductance vs Current

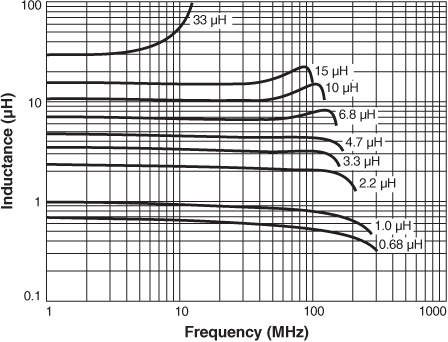

Inductance vs Frequency

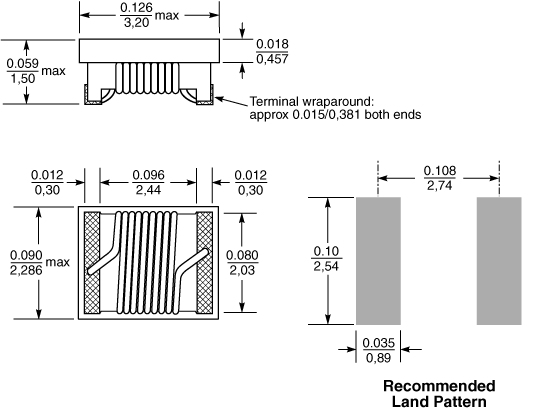

物理特性

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	7500*	178/330	60/100	13	18,4	12,4	12	4	4	2	1,65	0,23

* Special order

一般规格

核心材料:

Composite

重量:

31 – 39 mg

包装:

2000/7″ reel; 7500/13″ reel. Plastic tape: 12 mm wide, 0.23 mm thick, 4 mm pocket spacing, 1.65 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
