EPL2014 Series

Shielded Power Inductors

EPL2014 molded surface mount power inductors are cost effective and ideal for applications requiring a miniature footprint. Their magnetic shielding allows for high-density mounting, and soft saturation assures peak current handling.

Compact, cost-effective molded power inductors
Soft saturation for peak current handling
Magnetically shielded
AEC-Q200 Grade 3 (-40°C to +85°C) with no thermal aging

Need parts for space, military or other critical applications?
See Coilcraft ST358PWA Series

立即购买:

零件号

查找我的元件

计数	单价
1	$0.73
250	$0.60
500	$0.37
1000	$0.28
2000	$0.25
4000	$0.23

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

M = 20%

Termination

L = Tin-silver-copper (96.5/3/0.5) over tin over nickel over silver-platinum

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C413	12 (5 of each)	$45.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2 (公差: ±20%)	DCR (Ω) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
零件号 1	电感 (µH) 2 (公差: ±20%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
EPL2014-271ML_	0.27	0.030	0.036	570	1.5	2.3	2.8	2.0	2.7
EPL2014-421ML_	0.42	0.037	0.044	438	1.4	2.0	2.4	1.9	2.6
EPL2014-601ML_	0.60	0.043	0.052	290	1.2	1.8	2.3	1.8	2.4
EPL2014-821ML_	0.82	0.051	0.061	163	0.95	1.4	1.8	1.5	2.0
EPL2014-102ML_	1.0	0.059	0.071	153	0.90	1.3	1.7	1.4	1.9
EPL2014-152ML_	1.5	0.075	0.086	109	0.72	1.2	1.6	1.3	1.9
EPL2014-222ML_	2.2	0.120	0.132	80.0	0.60	0.98	1.3	1.1	1.4
EPL2014-332ML_	3.3	0.152	0.167	62.0	0.54	0.80	1.1	0.92	1.2
EPL2014-472ML_	4.7	0.231	0.254	46.0	0.38	0.65	0.88	0.79	1.1
EPL2014-682ML_	6.8	0.287	0.316	44.0	0.35	0.59	0.80	0.68	0.92
EPL2014-822ML_	8.2	0.378	0.416	39.0	0.29	0.50	0.68	0.64	0.85
EPL2014-103ML_	10	0.440	0.459	33.0	0.25	0.45	0.60	0.56	0.73

注释

When ordering, please specify termination and packaging codes: e.g. EPL2014-103MLC
Inductance tested at 1 MHz, 0.1 Vrms, 0 Adc.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 4395A or equivalent.
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

L = Tin-silver-copper (96.5/3/0.5) over tin over nickel over silver-platinum.
S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (7500 parts per full reel).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +85°C with (40°C rise) Irms current

储存温度范围:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

最高元件温度:

+125°C (ambient + temperature rise).

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

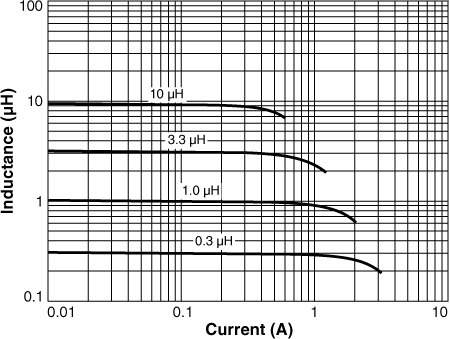

Inductance vs Current

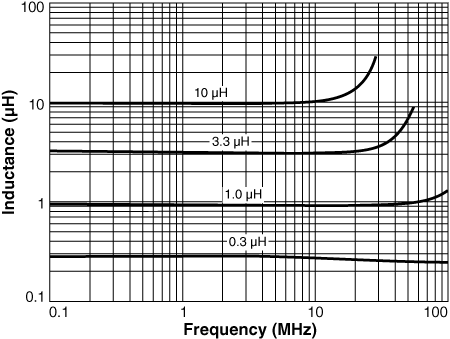

Inductance vs. Frequency

物理特性

For optional tin-lead and tin-silver-copper terminations, dimensions are for the mounted part. Dimensions before mounting can be an additional 0.005 inch / 0.13 mm.

Small surface blemishes are not unusual and do not adversely affect performance.
Wire may be visible inside the voids.
Acceptable void sizes:
Top: 0.01 in / 0,254 mm × 0.01 in / 0,254 mm
Sides: 0.02 in / 0,5 mm × 0.047 in / 1,2 mm

元件标识

(Parts manufactured prior to October 20, 2009 may not be marked.)

Part number	Value	1st digit	2nd digit	Multiplier
EPL2014-271	0.27 µH	Red	Violet	Brown
EPL2014-421	0.42 µH	Yellow	Red	Brown
EPL2014-601	0.60 µH	Blue	Black	Brown
EPL2014-821	0.82 µH	Gray	Red	Brown
EPL2014-102	1.0 µH	Brown	Black	Red
EPL2014-152	1.5 µH	Brown	Green	Red
EPL2014-222	2.2 µH	Red	Red	Red
EPL2014-332	3.3 µH	Orange	Orange	Red
EPL2014-472	4.7 µH	Yellow	Violet	Red
EPL2014-682	6.8 µH	Blue	Gray	Red
EPL2014-822	8.2 µH	Gray	Red	Red
EPL2014-103	10 µH	Brown	Black	Orange

Note: All marked parts have three dots. Black dot, used only on -601, -102 and -103 as the second significant digit, may be very difficult to see.

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	7500*	178/330	60/100	13	14,4	8,4	8	4	4	2	1,65	0,28

* Special order

一般规格

核心材料:

Ferrite

重量:

20 – 25 mg

包装:

2000/7″ reel; 7500/13″ reel Plastic tape: 8 mm wide, 0.28 mm thick, 4 mm pocket spacing, 1.65 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
