1008PS Series

High SRF, High Current Inductors

Coilcraft 1008PS Series shielded power inductors offer a unique construction that achieves exceptionally high self resonant frequencies (SRFs). Full magnetic shielding assures the lowest possible EMI.

Higher SRF series
High inductance with tight tolerance
Excellent current handling
Full magnetic shielding minimizes EMI
AEC-Q200 Grade 2 (-40°C to +105°C)

Need parts for space, military or other critical applications?
See Coilcraft ST413PHA Series

立即购买:

零件号

查找我的元件

计数	单价
1	$1.07
250	$0.92
750	$0.74
1500	$0.59
3000	$0.44
6000	$0.37

对于大批量采购或非库存产品，点击这里请求报价。

Termination

R = Matte tin over nickel over silver-platinum-glass frit

L = Not halogen-free. Silver-palladium-platinum-glass frit

Packaging

C = 7" machine-ready reel

Tolerance

K = 10%

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C341	28 (6 of each)	$80.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2 (公差: ±10%)	DCR max (Ω) 3	SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
零件号 1	电感 (µH) 2 (公差: ±10%)	DCR max (Ω) 3	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
1008PS-102KR_	1.0	0.050	387	3.5	3.9	4.2	1.4	2.0
1008PS-152KR_	1.5	0.060	276	2.7	3.2	3.5	1.4	2.0
1008PS-182KR_	1.8	0.090	253	2.3	2.7	3.0	0.98	1.4
1008PS-222KR_	2.2	0.10	228	2.4	2.8	3.1	1.2	1.7
1008PS-272KR_	2.7	0.14	207	1.6	2.0	2.3	1.0	1.4
1008PS-332KR_	3.3	0.84	199	1.5	1.6	1.6	0.51	0.67
1008PS-392KR_	3.9	0.26	185	1.5	1.8	2.0	0.82	1.1
1008PS-472KR_	4.7	0.35	160	1.3	1.6	1.7	0.70	0.95
1008PS-562KR_	5.6	0.36	150	1.5	1.7	1.8	0.66	0.87
1008PS-682KR_	6.8	0.58	120	1.3	1.5	1.6	0.45	0.76
1008PS-103KR_	10	0.92	105	0.84	1.0	1.1	0.40	0.59
1008PS-153KR_	15	1.2	35.0	0.81	0.87	0.90	0.36	0.51
1008PS-223KR_	22	1.4	26.0	0.67	0.75	0.79	0.33	0.44
1008PS-333KR_	33	1.6	20.0	0.53	0.61	0.68	0.30	0.42
1008PS-393KR_	39	1.9	16.0	0.49	0.56	0.60	0.28	0.39
1008PS-473KR_	47	2.5	19.0	0.47	0.52	0.54	0.23	0.31
1008PS-683KR_	68	3.8	12.0	0.38	0.42	0.45	0.21	0.26
1008PS-823KR_	82	4.3	9.0	0.33	0.38	0.42	0.18	0.26
1008PS-104KR_	100	5.8	7.0	0.35	0.38	0.39	0.16	0.20
1008PS-124KR_	120	6.3	7.0	0.30	0.33	0.35	0.14	0.20
1008PS-154KR_	150	7.5	6.0	0.27	0.30	0.33	0.13	0.18
1008PS-224KR_	220	10.0	5.0	0.21	0.24	0.27	0.13	0.17
1008PS-334KR_	330	11.5	4.0	0.19	0.21	0.23	0.11	0.15
1008PS-474KR_	470	16.3	3.0	0.14	0.17	0.19	0.10	0.13
1008PS-564KR_	560	18.1	3.0	0.13	0.15	0.17	0.093	0.12
1008PS-684KR_	680	24.0	2.0	0.11	0.15	0.17	0.073	0.11
1008PS-824KR_	820	26.0	2.0	0.10	0.12	0.13	0.073	0.10
1008PS-105KR_	1000	29.0	2.0	0.11	0.13	0.14	0.070	0.10

注释

When ordering, please specify termination and packaging codes: e.g. 1008PS-105KRC
nductance measured at 100 kHz, 0.1 Vrms, using a Coilcraft SMD-A fixture in an Agilent/HP 4263B LCR meter with Coilcraft-provided correlation pieces.
DCR measured at 25°C on micro-ohmmeter and Coilcraft CCF840 test fixture. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 8753D network analyzer and a Coilcraft SMD-D test fixture.
Isat: DC current at 25°C that causes a 10% (typ)inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

R = Halogen free component. Matte tin over nickel over silver-platinum-glass frit.
L = RoHS compliant, not halogen-free. Silver-palladium-platinum-glass frit.

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (750 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (2500 parts per full reel).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +105°C with (40°C rise) Irms current

储存温度范围:

Component: –40°C to +145°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+145°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

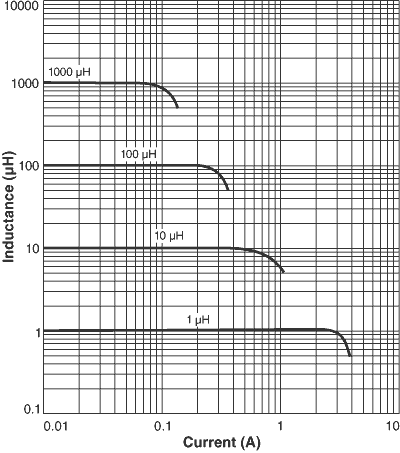

Inductance vs. Current

Inductance vs. Frequency

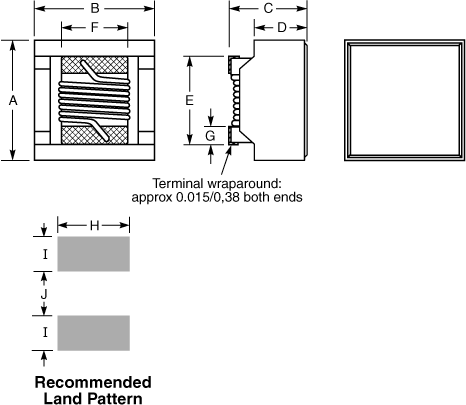

物理特性

A max	B max	C max	D max	E max	F max	G typ	H	I	J
0.150	0.149	0.108	0.070	0.102	0.084	0.020	0.100	0.040	0.050	inches
3,81	3,78	2,74	1,78	2,59	2,13	0,51	2,54	1,02	1,27	mm

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
750	2500*	178/330	60/100	13	18,4	12,4	12	8	4	2	3,3	0,3

*Special order

一般规格

核心材料:

Ceramic/Ferrite

重量:

122– 132 mg

包装:

750/7″ reel; 2500/13″ reel Plastic tape: 12 mm wide, 0.3 mm thick, 8 mm pocket spacing, 3.3 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
