SER1360 Series

High Current Shielded Power Inductors

SER1360 Series high-current, high-inductance power inductors feature a flat-wire construction, resulting in exceptionally low DC resistance. They come in a wide range of sizes and inductance values for POL, VRM, VRD, and other high power applications.

Rugged flat wire construction
Exceptionally low DC resistance
Ferrite core for flat L vs. I characteristics
Magnetically shielded to minimize EMI
SER1360-602 specified by TI for LM3433 LED Driver in applications up to 6 A
AEC-Q200 qualified

Need parts for space, military or other critical applications?
See Coilcraft AE598PTA Series | See Coilcraft ML598PTA Series | See Coilcraft MS598PTA Series | See Coilcraft ST598PTA Series

立即购买:

零件号

查找我的元件

计数	单价
1	$1.30
250	$1.20
500	$1.05
1000	$0.85
2500	$0.77
5000	$0.72

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

K = 10%

Termination

L = Tin-silver-copper over tin over nickel

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C365	13 (3 of each)	$65.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2 (公差: ±10%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
零件号 1	电感 (µH) 2 (公差: ±10%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
SER1360-331KL_	0.33	0.77	0.85	200	36.0	41.0	43.0	13.0	16.9
SER1360-651KL_	0.65	0.77	0.85	160	23.0	27.0	28.0	13.0	16.9
SER1360-102KL_	1.0	2.4	2.6	75.0	32.0	33.0	33.5	9.5	13.0
SER1360-182KL_	1.8	2.4	2.6	50.0	17.0	19.0	20.0	9.5	13.0
SER1360-272KL_	2.7	2.4	2.6	42.0	12.0	13.0	14.0	9.5	13.0
SER1360-402KL_	4.0	5.5	6.1	34.0	11.0	12.0	13.0	7.1	9.4
SER1360-472KL_	4.7	5.5	6.1	32.0	9.5	11.0	12.0	7.1	9.4
SER1360-602KL_	6.0	5.5	6.1	28.0	8.0	9.0	9.5	7.1	9.4
SER1360-802KL_	8.0	9.8	10.8	26.0	7.5	8.5	9.0	5.5	7.6
SER1360-103KL_	10	9.8	10.8	24.0	6.2	7.0	7.5	4.4	7.2

注释

When ordering, please specify termination and packaging codes: e.g. SER1360-103KLD
Inductance measured at 100 kHz, 0.1 Vrms, using an Agilent/HP 4284A or equivalent.
DCR measured at 25°C on a micro-ohmmeter and a Coilcraft CCF840 test fixture. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 4395A network analyzer and an Agilent/HP 16193A test fixture. Details
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

L = RoHS compliant tin-silver-copper over tin over nickel over phos bronze (pins 1 and 2); matte tin over nickel over phos bronze (pin 3).
T = RoHS tin-silver-copper over copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (500 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

−40°C to +85°C with (40°C rise) Irms

储存温度范围:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

最高元件温度:

+125°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

Inductance vs Current

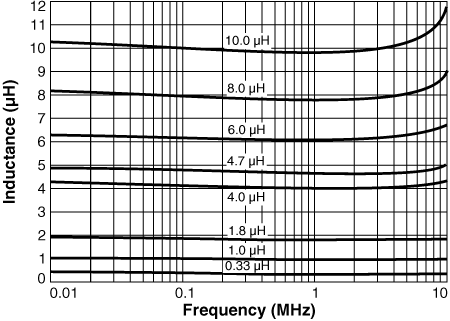

Inductance vs Frequency

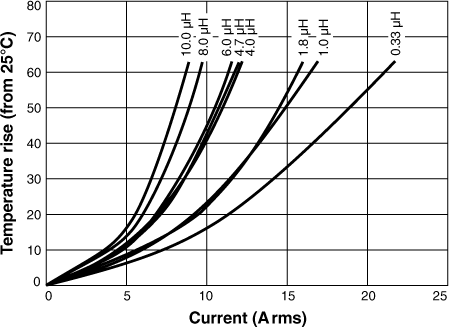

Temperature Rise vs Current

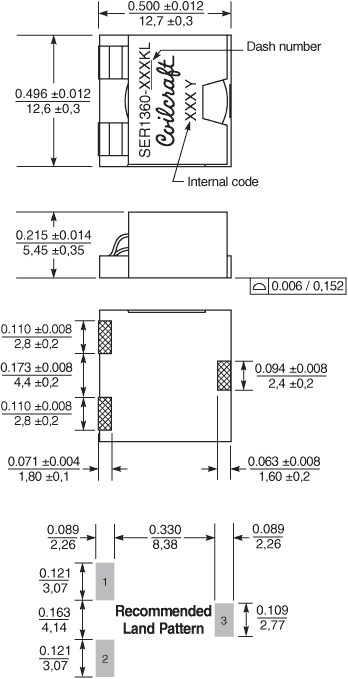

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
500	330	100	13	30,4	24,4	24	16	4	2	6,6	0,4

一般规格

核心材料:

Ferrite

重量:

2.6 – 2.8 g

包装:

500 per 13″ reel; Plastic tape: 24 mm wide, 0.4 mm thick, 16 mm pocket spacing, 6.6 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
