AGP2923 Series

TH Shielded High Current Power Inductors

Coilcraft AEC-Q200 qualified AGP2923 Series power inductor is ideal for automotive applications and other high-temperature environments. AGP2923 power inductor, along with VER2923 and HA3588, is designed for high-efficiency power supplies requiring high current and high inductance.

Four mounting pins for additional stability in high-vibration environments
Flat wire windings provide extremely low DC and AC resistance.
Low loss ferrite cores provide flat L vs I
Magnetic shielding to minimize EMI
Through-hole (TH) mounting with small footprint
Exceeds AEC-Q200 requirements – up to 140°C ambient

Need parts for space, military or other critical applications?
See Coilcraft ST710PGP Series

立即购买:

零件号

查找我的元件

计数	单价
1	$5.94
250	$5.09
500	$4.44
1000	$3.51
2500	$3.02
5000	$2.77

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

K = 10%

Termination

L = Tin-silver

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

零件号	电感 (µH) 1 (公差: ±10%)	DCR (mΩ) 2		SRF typ (MHz) 3	Isat (A) 4			Irms (A) 5
零件号	电感 (µH) 1 (公差: ±10%)	typ	max	SRF typ (MHz) 3	10% drop	20% drop	30% drop	20°C rise	40°C rise
AGP2923-332KL	3.3	2.3	2.6	40.0	95.0	104	108	19	26
AGP2923-472KL	4.7	2.3	2.6	30.0	63.0	69.0	72.0	19	26
AGP2923-682KL	6.8	2.3	2.6	25.0	48.0	53.0	56.0	19	26
AGP2923-103KL	10	2.3	2.6	20.0	30.0	34.0	37.0	19	26
AGP2923-153KL	15	2.3	2.6	16.0	20.5	23.0	24.5	19	26
AGP2923-223KL	22	2.3	2.6	13.0	12.2	14.7	16.4	19	26
AGP2923-333KL	33	2.3	2.6	10.0	7.5	9.2	10.3	19	26

注释

Inductance measured at 300 kHz, 0.1 Vrms, using an Agilent/HP 4192A LCR meter or equivalent.
DCR measured at 25°C on a Keithley 580 micro-ohmmeter or equivalent. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 8753ES network analyzer. Details
Isat: DC current at 25°C that causes the specified inductance drop from its value without current.
Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

RoHS compliant tin-silver over copper.

环境

环境:

符合RoHS

环境温度范围:

−40°C to +140°C with Irms current

储存温度范围:

Component: –40°C to +180°C.
Tray packaging: –40°C to +80°C

最高元件温度:

+180°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

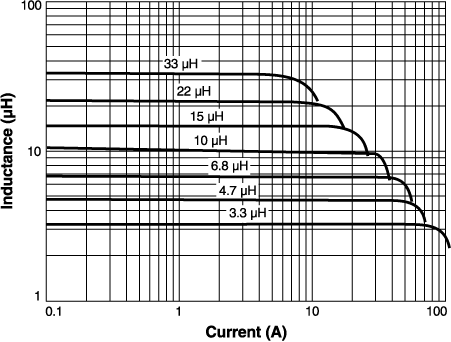

Inductance vs Current

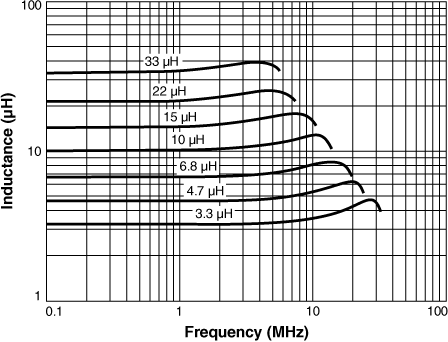

Inductance vs Frequency

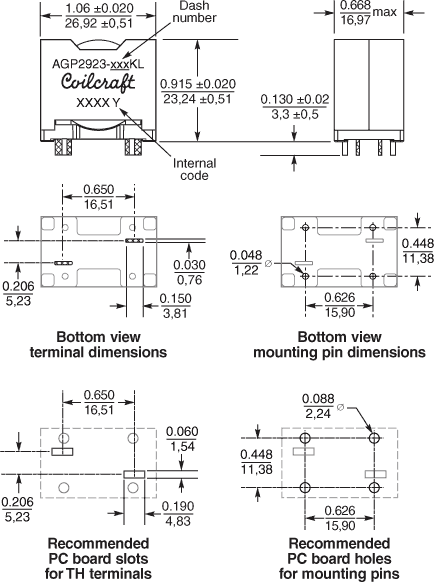

物理特性

一般规格

核心材料:

Ferrite

重量:

37 g

包装:

25 parts per tray

清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
