MSS6122 Series

Shielded Surface Mount Power Inductors

Coilcraft MSS6122 Series shielded surface-mount power inductors feature low DC resistance and excellent current handling in a wide range of inductance values, making them a cost-effective option for a variety of general-purpose applications.

Low-loss ferrite drum core for flat inductance vs current
Low DC resistance for greater efficiency
Excellent current handling
Magnetic shielding allows high-density mounting
AEC-Q200 Grade 3 (-40°C to +85°C)

立即购买:

零件号

查找我的元件

计数	单价
1	$1.53
250	$1.03
500	$0.62
1000	$0.48
2500	$0.42
5000	$0.39

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

M = 20%

Termination

L = Matte tin over nickel

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C363	17 (3 of each)	$50.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2 (公差: ±20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
零件号 1	电感 (µH) 2 (公差: ±20%)	DCR max (Ω) 3	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
MSS6122-472ML_	4.7	0.065	65.0	1.4	1.7	1.8	1.6	2.3
MSS6122-562ML_	5.6	0.083	60.0	1.2	1.5	1.6	1.5	2.1
MSS6122-682ML_	6.8	0.10	48.0	1.2	1.4	1.5	1.4	2.0
MSS6122-822ML_	8.2	0.12	44.0	1.1	1.2	1.4	1.3	1.8
MSS6122-103ML_	10	0.15	42.0	0.98	1.1	1.2	1.2	1.7
MSS6122-123ML_	12	0.18	40.0	0.97	1.1	1.1	1.1	1.6
MSS6122-153ML_	15	0.21	38.0	0.85	0.97	1.0	1.1	1.5
MSS6122-183ML_	18	0.28	35.0	0.78	0.89	0.97	0.99	1.4
MSS6122-223ML_	22	0.31	32.0	0.64	0.75	0.82	0.92	1.3
MSS6122-273ML_	27	0.35	26.0	0.62	0.71	0.77	0.85	1.2
MSS6122-333ML_	33	0.46	22.0	0.60	0.69	0.74	0.77	1.1
MSS6122-393ML_	39	0.54	19.0	0.50	0.59	0.64	0.70	1.0
MSS6122-473ML_	47	0.68	18.0	0.47	0.55	0.60	0.63	0.90
MSS6122-563ML_	56	0.74	17.0	0.43	0.50	0.54	0.56	0.80
MSS6122-683ML_	68	1.0	16.0	0.40	0.46	0.50	0.49	0.70
MSS6122-823ML_	82	1.2	15.0	0.37	0.43	0.46	0.42	0.60
MSS6122-104ML_	100	1.4	12.0	0.32	0.37	0.40	0.35	0.50

注释

When ordering, please specify termination and packaging codes: e.g. MSS6122-104MLC
Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/HP 4263B LCR meter or equivalent.
DCR measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 4191A or equilvalent.
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

L = RoHS compliant matte tin over nickel over phos bronze (current production) or gold over nickel over phos bronze (prior production).
T = RoHS tin-silver-copper (95.5/4/0.5) over gold over nickel over phos bronze. (Special order, added cost)
S = non-RoHS tin-lead (63/37) over gold over nickel over phos bronze. (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (500 per full reel).
B = Less than full reel In tape, but not machine-ready. To have a leader and trailer added ($25 charge), use code letter C instead.
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (1500 per full reel).

环境

环境:

符合RoHS

环境温度范围:

–40°C to +85°C with (40°C rise) Irms current.

储存温度范围:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+125°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

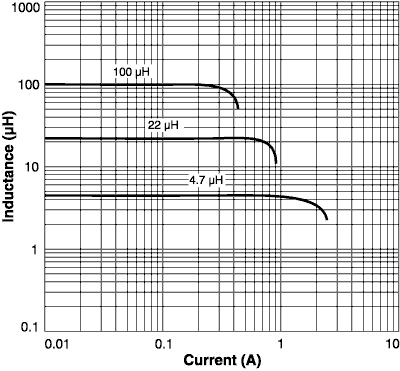

Inductance vs. Current

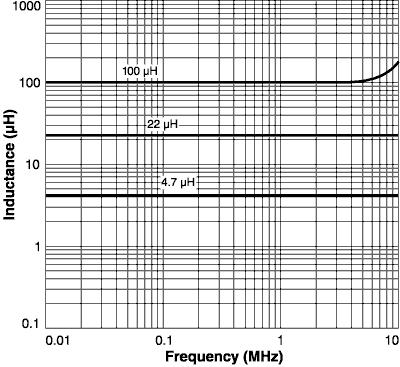

Inductance vs. Frequency

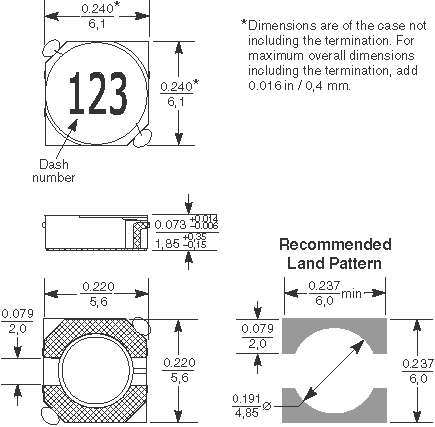

物理特性

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation ‡
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
500	1500*	178/330	60/100	13	22,4	16,4	16	12	4	2	2,1	0,3

* Special order
‡ Part marking does not indicate polarity

一般规格

核心材料:

Ferrite

重量:

0.19 - 0.23 g

包装:

500/7″ reel, 1500/13″ reel; Plastic tape: 16 mm wide, 0.3 mm thick, 12 mm pocket spacing, 2.1 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
