MSS5131 Series

Shielded Surface Mount Power Inductors

Coilcraft MSS5131 Series shielded surface-mount power inductors feature low DC resistance and excellent current handling in a wide range of inductance values, making them a cost-effective option for a variety of general-purpose applications.

Low-loss ferrite drum core for flat inductance vs current
Low DC resistance for greater efficiency
Excellent current handling
Magnetic shielding allows high-density mounting
AEC-Q200 Grade 3 (-40°C to +85°C)

Need parts for space, military or other critical applications?
See Coilcraft ST480PNA Series

立即购买:

零件号

查找我的元件

计数	单价
1	$1.50
300	$1.00
600	$0.60
1200	$0.47
2400	$0.41
4800	$0.38

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

M = 20%

Termination

L = Matte tin over nickel

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C362	26 (3 of each)	$80.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2 (公差: ±20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
零件号 1	电感 (µH) 2 (公差: ±20%)	DCR max (Ω) 3	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
MSS5131-222ML_	2.2	0.020	65.0	1.8	2.1	2.3	2.0	3.3
MSS5131-332ML_	3.3	0.028	60.0	1.3	1.6	1.7	1.6	2.9
MSS5131-472ML_	4.7	0.038	48.0	1.1	1.3	1.4	1.4	2.5
MSS5131-562ML_	5.6	0.042	44.0	1.0	1.2	1.3	1.3	2.3
MSS5131-682ML_	6.8	0.050	42.0	0.98	1.1	1.2	1.2	2.2
MSS5131-822ML_	8.2	0.058	40.0	0.90	1.0	1.2	1.1	2.0
MSS5131-103ML_	10	0.070	38.0	0.85	0.98	1.1	1.0	1.9
MSS5131-123ML_	12	0.080	35.0	0.72	0.85	0.94	0.97	1.6
MSS5131-153ML_	15	0.10	32.0	0.67	0.78	0.86	0.94	1.5
MSS5131-183ML_	18	0.12	26.0	0.61	0.72	0.79	0.89	1.4
MSS5131-223ML_	22	0.15	22.0	0.54	0.64	0.70	0.87	1.3
MSS5131-273ML_	27	0.16	19.0	0.48	0.56	0.62	0.85	1.2
MSS5131-333ML_	33	0.20	18.0	0.44	0.52	0.58	0.80	1.1
MSS5131-393ML_	39	0.22	17.0	0.42	0.50	0.55	0.74	1.0
MSS5131-473ML_	47	0.28	16.0	0.38	0.46	0.51	0.71	0.95
MSS5131-563ML_	56	0.28	15.0	0.34	0.42	0.47	0.70	0.90
MSS5131-683ML_	68	0.37	12.5	0.31	0.38	0.42	0.66	0.85
MSS5131-823ML_	82	0.42	12.0	0.27	0.32	0.35	0.62	0.80
MSS5131-104ML_	100	0.52	11.5	0.26	0.30	0.33	0.55	0.69
MSS5131-124ML_	120	0.61	11.0	0.23	0.27	0.30	0.51	0.62
MSS5131-154ML_	150	0.82	10.0	0.21	0.26	0.28	0.47	0.58
MSS5131-184ML_	180	1.0	9.0	0.19	0.23	0.25	0.43	0.54
MSS5131-224ML_	220	1.1	8.0	0.18	0.21	0.23	0.39	0.50
MSS5131-274ML_	270	1.4	7.5	0.15	0.18	0.20	0.35	0.45
MSS5131-334ML_	330	1.6	6.8	0.13	0.17	0.19	0.32	0.42
MSS5131-394ML_	390	1.8	5.4	0.12	0.15	0.16	0.30	0.38

注释

When ordering, please specify termination and packaging codes: e.g. MSS5131-394MLC
Inductance measured at 100 kHz, 0.1 Vrms using an Agilent/HP 4263B LCR meter or equivalent.
DCR measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using Agilent/HP 4191A or equilvalent.
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves

端子:

L = RoHS compliant matte tin over nickel over phos bronze (current production) or gold over nickel over phos bronze (prior production).
T = RoHS tin-silver-copper (95.5/4/0.5) over gold over nickel over phos bronze. (Special order, added cost)
S = non-RoHS tin-lead (63/37) over gold over nickel over phos bronze. (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (600 per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (2500 per full reel).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +85°C with (40°C rise) Irms current.

储存温度范围:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+125°C (ambient + temp rise).

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

Inductance vs. Current

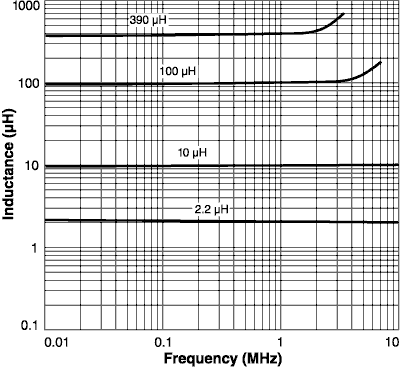

Inductance vs. Frequency

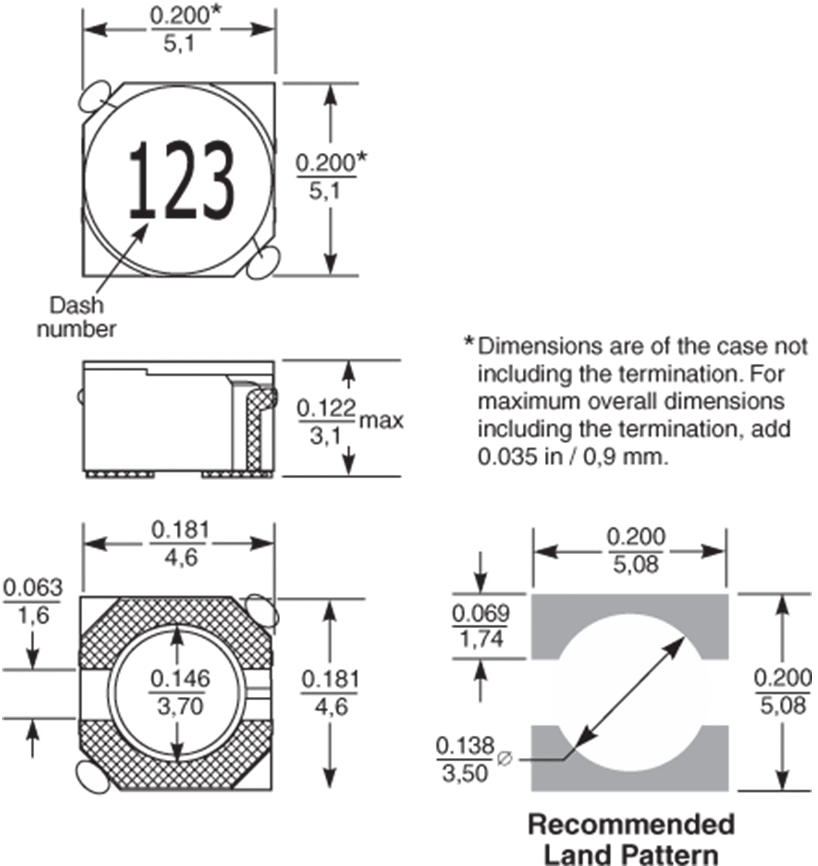

物理特性

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation ‡
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
600	2500*	178/330	60/100	13	18,4	12,4	12	8	4	2	3,25	0,35

* Special order
‡ Part marking does not indicate polarity.

一般规格

核心材料:

Ferrite

重量:

0.20 - 0.24 g

包装:

600/7″ reel, 2500/13″ reel; Plastic tape: 12 mm wide, 0.35 mm thick, 8 mm pocket spacing, 3.25 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
