MSS1260 Series

Shielded Surface Mount Power Inductors

Coilcraft MSS1260 Series shielded surface-mount power inductors feature low DC resistance and excellent current handling in a wide range of inductance values, making them a cost-effective option for a variety of general-purpose applications.

Low-loss ferrite drum core for flat inductance vs current
Low DC resistance for greater efficiency
Excellent current handling
Magnetic shielding allows high-density mounting
AEC-Q200 Grade 3 (-40°C to +85°C)

立即购买:

零件号

查找我的元件

计数	单价
1	$2.23
250	$1.48
500	$0.88
1000	$0.69
2500	$0.60
5000	$0.55

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

N = 30%

Termination

L = Matte tin over nickel

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C360	33 (3 of each)	$100.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2	公差 (%)	DCR (mΩ) 3		SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
零件号 1	电感 (µH) 2	公差 (%)	typ	max	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
MSS1260-102NL_	1.0	30	5.8	6.5	100	19.1	21.4	22.7	6.0	8.0
MSS1260-152NL_	1.5	30	8.8	9.8	80.0	15.0	16.6	17.6	6.0	7.5
MSS1260-222NL_	2.2	30	11.5	12.8	55.0	11.7	13.0	13.9	5.5	7.0
MSS1260-332NL_	3.3	30	12.6	14.0	42.0	10.4	11.7	12.5	5.0	7.0
MSS1260-472ML_	4.7	20	13.9	15.5	33.0	9.2	10.1	10.8	4.5	7.0
MSS1260-562ML_	5.6	20	14.9	16.6	30.0	7.9	9.0	9.7	4.0	6.4
MSS1260-682ML_	6.8	20	16.6	18.5	27.0	7.4	8.3	8.8	3.8	5.9
MSS1260-822ML_	8.2	20	17.0	20.0	26.0	7.1	8.0	8.5	3.4	4.8
MSS1260-103ML_	10	20	21.5	23.9	22.0	6.2	6.9	7.4	3.0	4.0
MSS1260-123ML_	12	20	24.5	27.3	20.0	5.2	5.9	6.4	2.8	3.7
MSS1260-153ML_	15	20	27.0	32.0	18.0	4.8	5.4	5.8	2.6	3.5
MSS1260-183ML_	18	20	30.0	33.0	16.0	4.6	5.2	5.6	2.5	3.3
MSS1260-223ML_	22	20	36.6	40.7	15.0	4.1	4.6	5.0	2.3	3.1
MSS1260-273ML_	27	20	48.0	52.0	13.0	3.5	4.0	4.3	2.1	2.9
MSS1260-333ML_	33	20	54.0	57.0	12.0	3.2	3.7	4.0	2.0	2.7
MSS1260-393ML_	39	20	58.0	64.5	12.0	3.1	3.6	3.8	1.9	2.6
MSS1260-473ML_	47	20	75.0	82.0	12.0	2.7	3.0	3.3	1.9	2.5
MSS1260-563ML_	56	20	85.0	89.0	10.0	2.5	3.0	3.1	1.8	2.4
MSS1260-683ML_	68	20	94.5	105	10.0	2.4	2.7	2.9	1.7	2.3
MSS1260-823ML_	82	20	120	129	9.0	2.2	2.5	2.6	1.6	2.2
MSS1260-104ML_	100	20	139	146	8.0	1.9	2.2	2.3	1.5	2.1
MSS1260-124KL_	120	10	193	195	7.0	1.7	1.9	2.1	1.4	1.9
MSS1260-154KL_	150	10	209	216	6.0	1.6	1.8	2.0	1.2	1.7
MSS1260-184KL_	180	10	234	246	6.0	1.4	1.6	1.7	1.1	1.6
MSS1260-224KL_	220	10	306	335	6.0	1.3	1.4	1.6	1.0	1.4
MSS1260-274KL_	270	10	349	355	4.0	1.1	1.3	1.4	0.90	1.5
MSS1260-334KL_	330	10	482	494	4.0	1.0	1.1	1.2	0.84	1.2
MSS1260-394KL_	390	10	515	533	4.0	0.93	1.1	1.2	0.78	1.1
MSS1260-474KL_	470	10	705	733	3.0	0.87	0.99	1.1	0.70	0.96
MSS1260-564KL_	560	10	776	800	3.0	0.81	0.92	1.0	0.64	0.88
MSS1260-684KL_	680	10	887	910	3.0	0.74	0.85	0.92	0.58	0.80
MSS1260-824KL_	820	10	1130	1152	2.0	0.66	0.76	0.81	0.53	0.73
MSS1260-105KL_	1000	10	1295	1335	2.0	0.60	0.69	0.74	0.48	0.68

注释

When ordering, please specify termination and packaging codes: e.g. MSS1260-105KLD
Inductance measured at 100 kHz, 0.1 Vrms using an Agilent/HP 4263B LCR meter or equivalent.
DCR measured at 25°C on a micro-ohmmeter and a Coilcraft CCF858 test fixture. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using Agilent/HP4191A or equivalent.
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

L = RoHS compliant matte tin over nickel over phos bronze.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

D = 13" reel, machine-ready
EIA-481 embossed plastic tape (500 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel
In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +85°C with (40°C rise) Irms current

储存温度范围:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+125°C (ambient + temp rise). Derating.

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

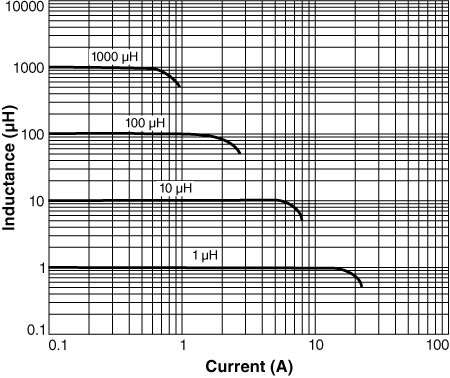

Inductance vs. Current

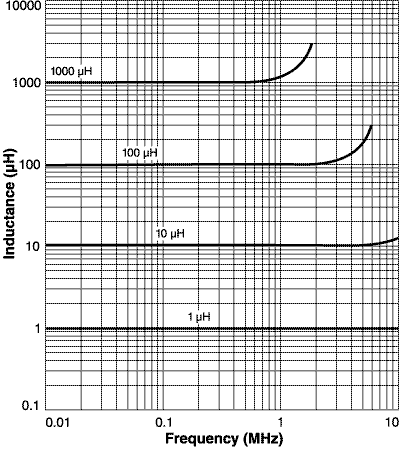

Inductance vs. Frequency

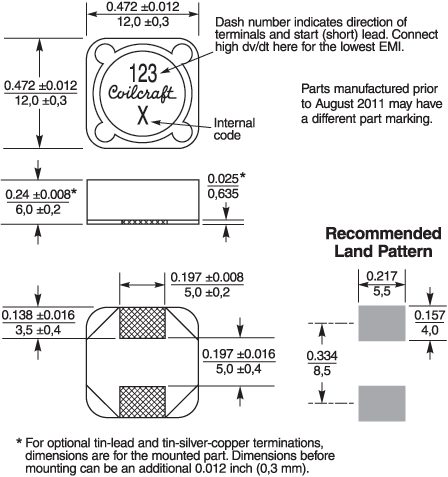

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation ‡
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
500	330	100	13	30,4	24,4	24	16	4	2	6,9	0,5

‡ Part marking does not indicate polarity.

一般规格

核心材料:

Ferrite

重量:

2.8 - 3.3 g

包装:

500/13″ reel; Plastic tape: 24 mm wide, 0.5 mm thick, 16 mm pocket spacing, 6.9 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
