MOS6020 Series

Surface Mount Power Inductors

Coilcraft MOS6020 Series shielded surface-mount power inductors feature low DC resistance and excellent current handling in a wide range of inductance values, making them a cost-effective option for a variety of general-purpose applications.

Low-loss ferrite drum core for flat inductance vs current
Low DC resistance for greater efficiency
Excellent current handling
Magnetic shielding allows high-density mounting

立即购买:

零件号

查找我的元件

计数	单价
1	$1.10
250	$1.02
500	$0.81
1000	$0.67
2500	$0.57
5000	$0.52

对于大批量采购或非库存产品，点击这里请求报价。

Termination

L = Matte tin over nickel

Packaging

C = 7" machine-ready reel

Tolerance

M = 20%

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C359	16 (3 of each)	$50.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2 (公差: ±20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
零件号 1	电感 (µH) 2 (公差: ±20%)	DCR max (Ω) 3	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
MOS6020-222ML_	2.2	0.035	110	2.9	3.3	3.6	3.0	4.1
MOS6020-332ML_	3.3	0.046	85.0	1.9	2.3	2.5	2.6	3.6
MOS6020-472ML_	4.7	0.050	60.0	1.5	1.8	1.9	2.3	3.1
MOS6020-682ML_	6.8	0.078	55.0	1.3	1.6	1.7	1.9	2.7
MOS6020-822ML_	8.2	0.085	45.0	0.94	1.2	1.3	1.7	2.2
MOS6020-103ML_	10	0.092	36.0	0.79	0.95	1.1	1.6	2.2
MOS6020-153ML_	15	0.13	30.0	0.83	0.95	1.0	1.3	1.8
MOS6020-223ML_	22	0.18	22.0	0.79	0.92	0.97	1.0	1.4
MOS6020-333ML_	33	0.29	20.0	0.57	0.67	0.74	0.80	1.1
MOS6020-473ML_	47	0.42	16.0	0.45	0.56	0.62	0.50	0.70
MOS6020-683ML_	68	0.52	15.0	0.37	0.45	0.51	0.45	0.63
MOS6020-104ML_	100	0.80	13.0	0.35	0.40	0.44	0.40	0.56
MOS6020-154ML_	150	1.3	10.0	0.26	0.30	0.33	0.35	0.49
MOS6020-224ML_	220	2.0	8.0	0.22	0.26	0.28	0.30	0.42
MOS6020-334ML_	330	2.8	7.0	0.18	0.22	0.24	0.25	0.35
MOS6020-474ML_	470	4.4	5.0	0.15	0.17	0.19	0.22	0.29

注释

When ordering, please specify termination and packaging codes: e.g. MOS6020-104MLC
Inductance measured at 100 kHz, 0.1 Vrms using an Agilent/HP 4263B or equivalent.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using Agilent/HP 8753D network analyzer. Details
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

L = RoHS compliant matte tin over nickel over phos bronze.
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (500 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order, not stocked (2000 parts per reel).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +85°C with (40°C rise) Irms current

储存温度范围:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+125°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

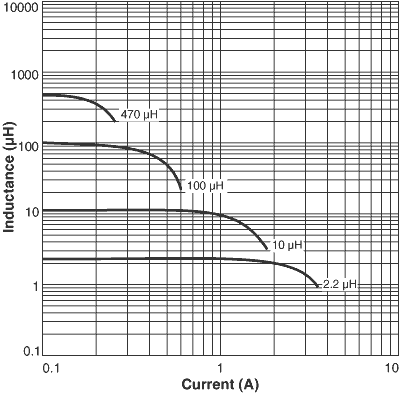

Inductance vs. Current

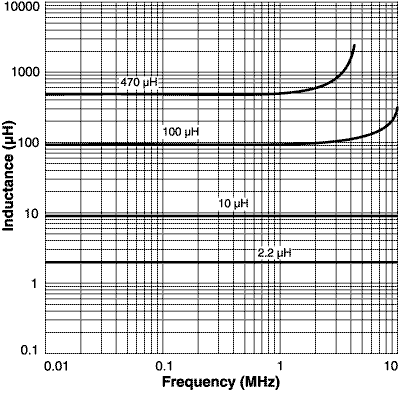

Inductance vs. Frequency

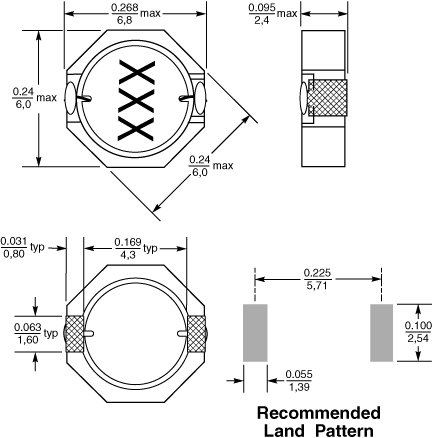

物理特性

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation ‡
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
500	2000*	178/330	60/100	13	22,4	16,4	16	12	4	2	2,5	0,3

* Special order
‡ Part marking does not indicate polarity

一般规格

核心材料:

Ferrite

重量:

0.21 g

包装:

500 per 7″ reel; 2000 per 13″ reel; Plastic tape: 16 mm wide, 0.3 mm thick, 12 mm pocket spacing, 2.5 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
