LPZ Series

High-Inductance Low Profile Shielded Power Inductors

Coilcraft LPZ Series shielded surface-mount power inductors offer high performance in a low-profile package, including higher inductance values than our LPS family (up to 4,700 µH).

Higher inductance values than LPS series
For lower inductances please see each corresponding LPS series
Magnetic shielding allows high-density mounting
LPZ3010, LPZ3015, LPZ4012 and LPZ4018 are rated AEC-Q200 Grade 3 (−40°C to +85°C)

立即购买:

零件号

查找我的元件

计数	单价
1	$1.30
250	$1.04
500	$0.65
1000	$0.52
2000	$0.43
5000	$0.40

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

M = 20%

Termination

R = RoHS compliant matte tin over nickel over silver

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2 (公差: ±20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
零件号 1	电感 (µH) 2 (公差: ±20%)	DCR max (Ω) 3	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
LPZ3008-224MR_	220	11.5	9.0	0.067	0.073	0.076	0.10	0.15
LPZ3008-334MR_	330	18.0	7.0	0.059	0.064	0.066	0.090	0.13
LPZ3010-334MR_	330	18.5	7.0	0.10	0.11	0.12	0.085	0.11
LPZ3015-334MR_	330	23.0	5.0	0.10	0.11	0.11	0.070	0.095
LPZ3314-105MR_	1000	31.0	3.0	0.090	0.099	0.10	0.082	0.10
LPZ5010-105MR_	1000	28.0	3.0	0.087	0.096	0.10	0.080	0.11
LPZ3314-155MR_	1500	44.0	2.7	0.080	0.086	0.090	0.060	0.080
LPZ4018-155MR_	1500	25.0	2.4	0.095	0.10	0.11	0.080	0.11
LPZ4414-155MR_	1500	26.4	2.2	0.096	0.099	0.10	0.085	0.11
LPZ4018-185MR_	1800	31.5	2.3	0.090	0.095	0.10	0.070	0.095
LPZ4414-185MR_	1800	35.0	1.9	0.089	0.094	0.097	0.075	0.10
LPZ4018-225MR_	2200	32.5	2.1	0.088	0.094	0.10	0.070	0.090
LPZ4414-225MR_	2200	42.5	1.9	0.082	0.089	0.092	0.065	0.080
LPZ4012-335MR_	3300	65.0	0.95	0.074	0.078	0.080	0.050	0.065
LPZ4018-335MR_	3300	48.0	1.6	0.082	0.092	0.094	0.055	0.075
LPZ4414-335MR_	3300	56.0	1.3	0.072	0.078	0.083	0.055	0.070
LPZ5015-335MR_	3300	55.0	1.7	0.064	0.072	0.076	0.055	0.075
LPZ5015-475MR_	4700	80.0	1.4	0.062	0.069	0.072	0.045	0.065

注释

When ordering, please specify termination and packaging codes: e.g. LPZ5015-475MRD
Inductance tested at 100 kHz, 0.1 Vrms using an Agilent/HP 4192A.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator
SRF measured using an Agilent/HP 8753ES or equivalent
Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

R = RoHS compliant matte tin over nickel over silver.
Q = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
P = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape. Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked.
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.

环境

环境:

符合RoHS , 无卤素

环境温度范围:

−40°C to +85°C with (40°C rise) Irms Derating curves

储存温度范围:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+125°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

物理特性

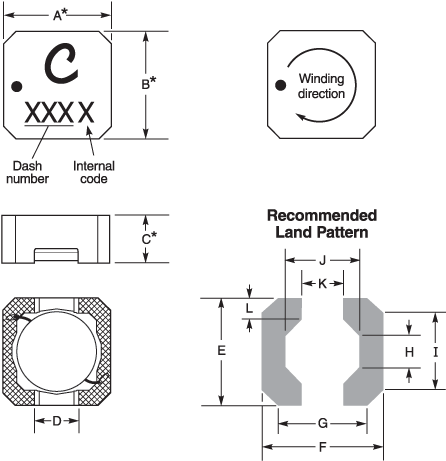

Part	A	B	C max	D	E	F	G	H	I	J	K	L
LPZ3008	0.116 ±0.003 2,95 ±0,076	0.116 ±0.003 2,95 ±0,076	0.0315 0,80	0.046 1,17	0.120 3,05	0.130 3,30	0.110 2,79	0.040 1,02	0.10 2,54	0.070 1,78	0.040 1,02	0.0275 0,70
LPZ3010	0.116 ±0.003 2,95 ±0,076	0.116 ±0.003 2,95 ±0,076	0.039 1,0	0.046 1,17	0.120 3,05	0.130 3,30	0.110 2,79	0.040 1,02	0.10 2,54	0.070 1,78	0.040 1,02	0.0275 0,70
LPZ3015	0.116 ±0.003 2,95 ±0,076	0.116 ±0.003 2,95 ±0,076	0.059 1,5	0.046 1,17	0.120 3,05	0.130 3,30	0.110 2,79	0.040 1,02	0.10 2,54	0.070 1,78	0.040 1,02	0.0275 0,70
LPZ3314	0.130 ±0.004 3,30 ±0,10	0.130 ±0.004 3,30 ±0,10	0.0512 1,4	0.063 1,60	0.146 3,70	0.146 3,70	0.104 2,65	0.0347 0,881	0.104 2,65	0.098 2,50	0.063 1,60	0.0381 0,968
LPS4012	0.1535 ± 0.003 3,90 ±0,076	0.1535 ± 0.003 3,90 ±0,076	0.0473 1,2	0.060 1,52	0.153 3,89	0.173 4,40	0.129 3,28	0.045 1,15	0.110 2,79	0.105 2,66	0.059 1,50	0.0305 0,775
LPS4018	0.1535 ± 0.003 3,90 ±0,076	0.1535 ± 0.003 3,90 ±0,076	0.0673 1,8	0.060 1,52	0.153 3,89	0.173 4,40	0.129 3,28	0.045 1,15	0.110 2,79	0.105 2,66	0.059 1,50	0.0305 0,775
LPS4414	0.169 ± 0.004 4,30 ±0,10	0.169 ± 0.004 4,30 ±0,10	0.0551 1,4	0.059 1,50	0.185 4,70	0.185 4,70	0.118 3,00	0.055 1,40	0.118 3,00	0.128 3,25	0.059 1,50	0.0305 0,775
LPS5010	0.189 ± 0.003 4,80 ±0,076	0.189 ± 0.003 4,80 ±0,076	0.0555 1,5	0.059 1,50	0.217 5,51	0.217 5,51	0.134 3,40	0.0665 1,689	0.134 3,40	0.134 3,40	0.060 1,52	0.0415 1.054

* Dimensions are of the case not including the termination. For maximum overall dimensions including the termination, add 0.005 in / 0,13 mm. For optional tin-lead and tin-silver-copper terminations, dimensions are for the mounted part. Dimensions before mounting can be an additional 0.005 inch / 0,13 mm).

卷装规格

	Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)
	7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
LPZ3008	1000	3500*	178/330	60/100	13	18,4	12,4	12	8	4	2	1,27	0,23
LPZ3010	1000	3500*	178/330	60/100	13	18,4	12,4	12	8	4	2	1,27	0,23
LPZ3015	1000	3500*	178/330	60/100	13	18,4	12,4	12	8	4	2	1,65	0,26
LPZ3314	1000	3500*	178/330	60/100	13	18,4	12,4	12	8	4	2	1,52	0,30
LPZ4012	1000	3500*	178/330	60/100	13	18,4	12,4	12	8	4	2	1,32	0,25
LPZ4018	1000	3500*	178/330	60/100	13	18,4	12,4	12	8	4	2	1,90	0,23
LPZ4414	1000	3500*	178/330	60/100	13	18,4	12,4	12	8	4	2	1,52	0,30
LPZ5010	1000	3500*	178/330	60/100	13	18,4	12,4	12	8	4	2	1,02	0,30
LPZ5015	1000	3500*	178/330	60/100	13	18,4	12,4	12	8	4	2	1,57	0,30

* Special order

一般规格

核心材料:

Ferrite

重量:

22 – 25 mg

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

推荐的取放吸嘴:

LPZ3008 OD: 3 mm; ID: <1.5 mm	LPZ4018 OD: 4 mm; ID: <2 mm
LPZ3010 OD: 3 mm; ID: <1.5 mm	LPZ4414 OD: 4.5 mm; ID: <2 mm
LPZ3015 OD: 3 mm; ID: <1.5 mm	LPZ5010 OD: 5 mm; ID: <2.5 mm
LPZ3314 OD: 3.3 mm; ID: <1.65 mm	LPZ5015 OD: 5 mm; ID: <2.5 mm
LPZ4012 OD: 4 mm; ID: <2 mm

PCB清洗:

Tested with pure water or alcohol only. More info

LPZ Series

High-Inductance Low Profile Shielded Power Inductors

规格

端子:

包装:

性能曲线

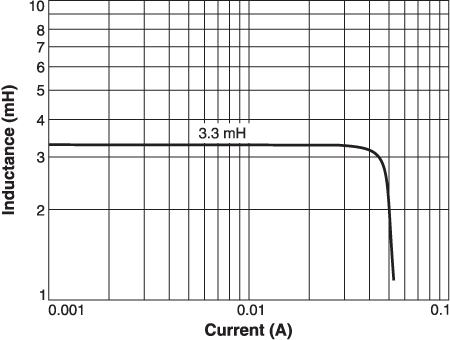

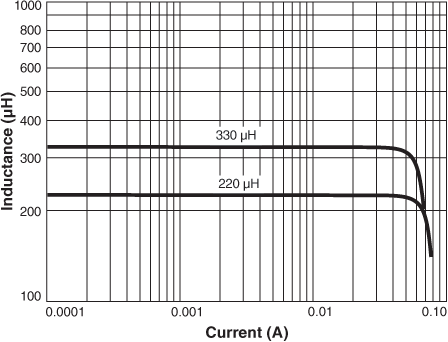

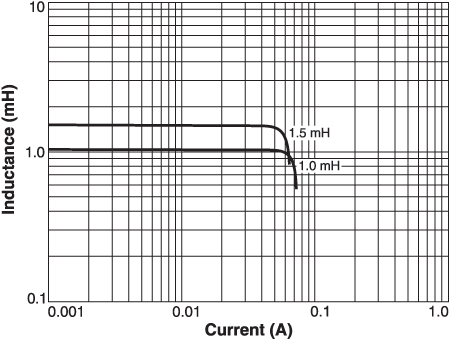

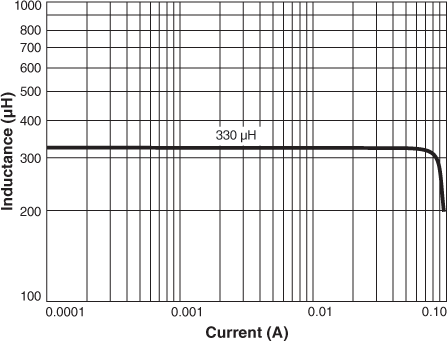

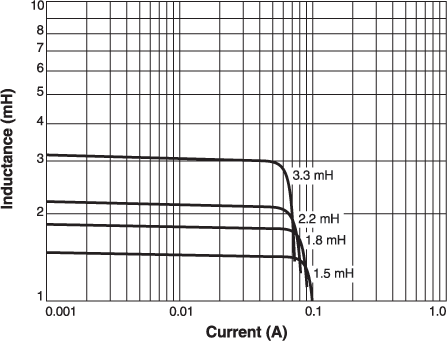

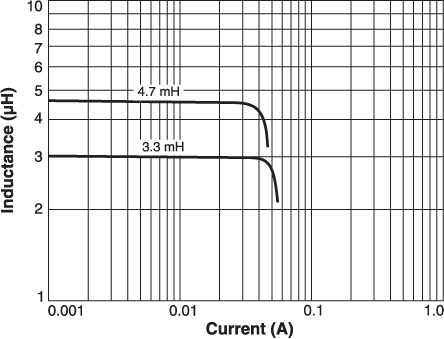

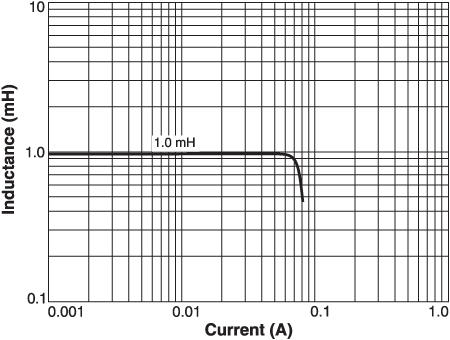

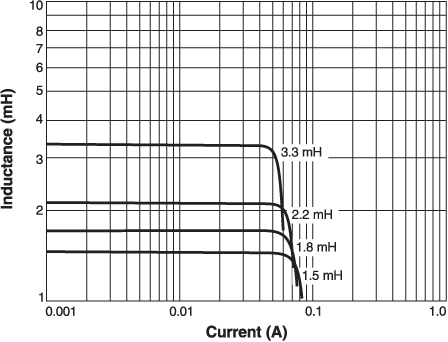

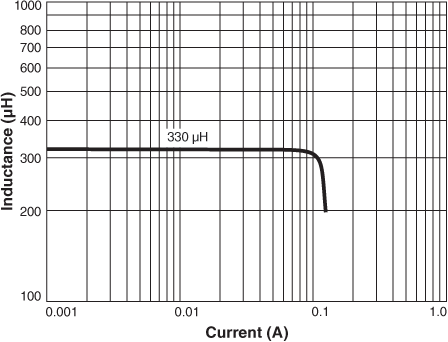

Inductance vs. Current

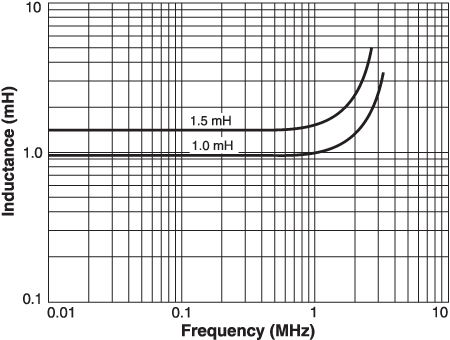

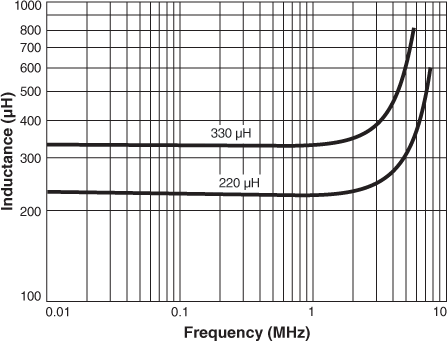

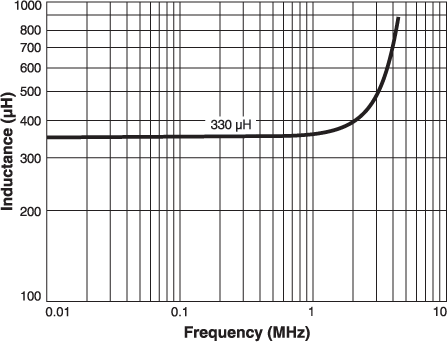

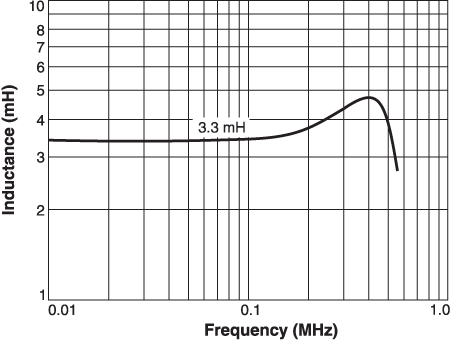

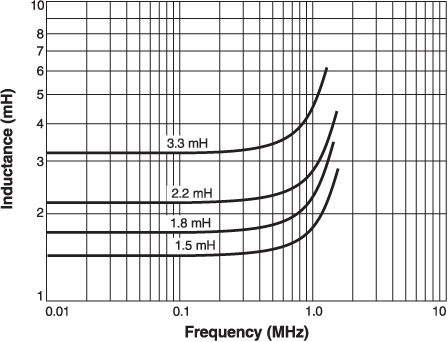

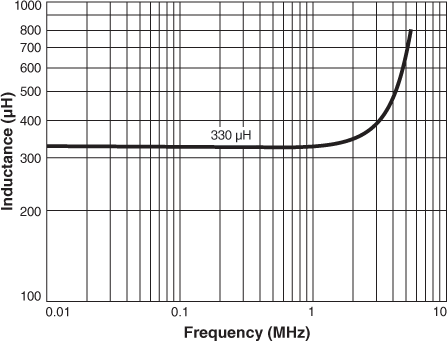

Inductance vs. Frequency
