LPS5030 Series

Low Profile Shielded Power Inductors

This is a new halogen free version recommended for new designs. Only the termination material, part number, and orientation in the packing tape have changed. The previous version is available only to current customers.

Coilcraft LPS5030 Series surface-mount power inductors offer high performance in a low-profile package. These compact power inductors offer excellent current handling, low DC resistance, a low profile, and magnetic shielding for high-density mounting.

High performance in low profile
High energy storage and low DC resistance
Magnetic shielding allows high-density mounting
AEC-Q200 qualified

Need parts for space, military or other critical applications?
See Coilcraft ML466PJB Series | See Coilcraft MS466PJB Series

立即购买:

零件号

查找我的元件

计数	单价
1	$1.20
375	$1.01
750	$0.63
1500	$0.51
3000	$0.45
6000	$0.42

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

M = 20%

Termination

R = Matte tin over nickel over silver

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C420	32 (3 of each)	$95.00

规格

Electrical specifications at 25°C.

零件号 1	电感 (µH) 2 (公差: ±20%)	DCR max (Ω) 3	SRF typ (MHz) 4	Isat (A) 5			Irms (A) 6
零件号 1	电感 (µH) 2 (公差: ±20%)	DCR max (Ω) 3	SRF typ (MHz) 4	10% drop	20% drop	30% drop	20°C rise	40°C rise
LPS5030-901MR_	0.90	0.040	250	3.8	4.0	4.1	2.1	2.8
LPS5030-122MR_	1.2	0.043	210	3.5	3.6	3.7	2.0	2.7
LPS5030-172MR_	1.7	0.051	190	3.0	3.2	3.3	1.9	2.5
LPS5030-222MR_	2.2	0.057	168	2.9	3.1	3.2	1.6	2.2
LPS5030-332MR_	3.3	0.066	125	2.3	2.5	2.6	1.4	1.8
LPS5030-472MR_	4.7	0.083	84.0	1.9	2.0	2.0	1.3	1.8
LPS5030-562MR_	5.6	0.089	70.0	1.8	1.8	1.9	1.3	1.7
LPS5030-682MR_	6.8	0.099	56.0	1.6	1.7	1.7	1.2	1.6
LPS5030-822MR_	8.2	0.13	45.0	1.6	1.7	1.7	1.1	1.6
LPS5030-103MR_	10	0.13	30.0	1.4	1.4	1.4	1.0	1.5
LPS5030-123MR_	12	0.16	24.0	1.3	1.4	1.4	0.95	1.4
LPS5030-153MR_	15	0.16	32.0	0.80	0.90	0.90	0.92	1.4
LPS5030-183MR_	18	0.17	27.0	0.80	0.82	0.87	0.90	1.3
LPS5030-223MR_	22	0.19	24.0	0.70	0.75	0.78	0.88	1.3
LPS5030-333MR_	33	0.26	19.0	0.60	0.63	0.64	0.85	1.2
LPS5030-473MR_	47	0.33	16.0	0.50	0.53	0.55	0.75	1.0
LPS5030-683MR_	68	0.44	12.0	0.40	0.43	0.44	0.65	0.90
LPS5030-823MR_	82	0.47	11.0	0.38	0.40	0.40	0.60	0.83
LPS5030-104MR_	100	0.60	10.0	0.27	0.31	0.32	0.55	0.75
LPS5030-124MR_	120	0.80	9.0	0.26	0.29	0.30	0.45	0.66
LPS5030-154MR_	150	0.86	7.5	0.22	0.25	0.26	0.42	0.57
LPS5030-224MR_	220	1.4	6.0	0.21	0.24	0.25	0.36	0.50
LPS5030-334MR_	330	1.8	5.0	0.16	0.16	0.20	0.32	0.42
LPS5030-474MR_	470	2.8	4.0	0.12	0.13	0.15	0.28	0.37
LPS5030-564MR_	560	3.2	3.6	0.11	0.13	0.14	0.23	0.32
LPS5030-684MR_	680	3.8	3.0	0.10	0.12	0.13	0.20	0.29
LPS5030-105MR_	1000	5.1	2.5	0.10	0.11	0.11	0.18	0.25
LPS5030-155MR_	1500	7.6	2.0	0.068	0.080	0.089	0.15	0.21
LPS5030-185MR_	1800	10.0	1.8	0.069	0.081	0.086	0.13	0.17
LPS5030-225MR_	2200	11.0	1.6	0.063	0.074	0.080	0.10	0.15
LPS5030-335MR_	3300	19.5	1.3	0.056	0.063	0.067	0.090	0.13
LPS5030-475MR_	4700	26.0	1.1	0.049	0.056	0.059	0.080	0.11

注释

When ordering, please specify termination and packaging codes: e.g. LPS5030-475MRC
Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/HP 4192A impedance analyzer or equivalent.
DCR measured at 25°C on a micro-ohmmeter. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 8753ES or equivalent.
Isat: DC current at which the inductance drops the specified amount from its value without current. Details
Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

端子:

R = Matte tin over nickel over silver.
Q = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
P = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (750 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (2500 parts per full reel).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +85°C with (40°C rise) Irms current

储存温度范围:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

最高元件温度:

+125°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

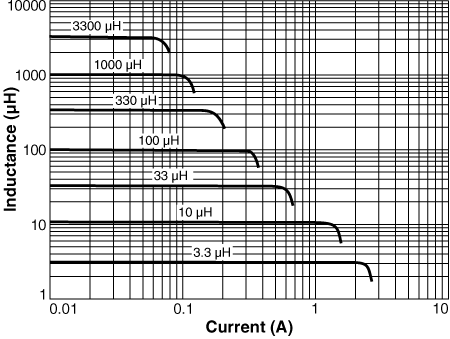

Inductance vs Current

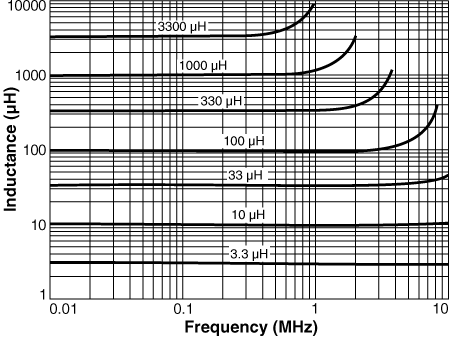

Inductance vs Frequency

物理特性

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
750	2500*	178/330	60/100	13	18,4	12,4	12	8	4	2	3,1	0,32

* Special order

一般规格

核心材料:

Ferrite

重量:

226 – 244 mg

包装:

750/7″ reel; 2500/13″ reel Plastic tape: 12 mm wide, 0.32 mm thick, 8 mm pocket spacing, 3.1 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

推荐的取放吸嘴:

OD: 5 mm; ID: < 2.5 mm

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
