LPR6235 Series

Coupled Inductors for Step-Up & Flyback Applications

This is a new halogen free version recommended for new designs. Only the termination material and part number have changed. The previous version is available only to current customers.

Coilcraft LPR6235 Series low-profile 1:N shielded coupled power inductors are ideal for a variety of voltage step-up and step-down applications, including low voltage step-up in energy harvesting designs. They offer excellent coupling coefficient (K > 0.95) and 300 Vrms, one-minute isolation (hipot) between windings.

Different turns ratios for a variety of voltage step-up and step-down applications.
Perfect for low voltage step-up in energy harvesting applications
Selected by Linear Technology for their LTC3108 and LTC3109 Ultralow Voltage Step-Up Converter and Power Managers
Excellent coupling coefficient: K > 0.95

立即购买:

零件号

查找我的元件

计数	单价
1	$2.10
350	$1.56
700	$1.16
1400	$0.96
2800	$0.87
5000	$0.80

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

M = 20%

Termination

R = Matte tin over nickel over silver

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

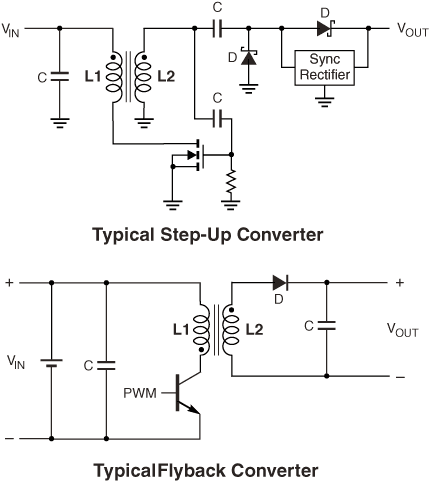

反激式应用

零件号 1 (Hover for schematics)	电感 (µH) 2 (公差: ±20%)	DCR (Ω) 3		隔离电压 (V)	匝数比
零件号 1 (Hover for schematics)	电感 (µH) 2 (公差: ±20%)	L1 max	L2 max	隔离电压 (V)	匝数比
LPR6235-752RMR_	7.5	0.085	285	300	1 : 90
LPR6235-752SMR_	7.5	0.085	340	300	1 : 100
LPR6235-123QMR_	12.5	0.085	200	300	1 : 50
LPR6235-253LMR_	25.0	0.74	13.7	300	1 : 10
LPR6235-253PMR_	25.0	0.20	72.0	300	1 : 20

SEPIC应用

零件号 1 (Hover for schematics)	电感 (µH) 2 (公差: ±20%)	DCR max (Ω) 3		SRF typ (kHz) 4	Isat (A) 5
零件号 1 (Hover for schematics)	电感 (µH) 2 (公差: ±20%)	L1	L2	SRF typ (kHz) 4	Isat (A) 5
LPR6235-752RMR_	7.5	0.085	285	257	1.6
LPR6235-752SMR_	7.5	0.085	340	230	1.6
LPR6235-123QMR_	13	0.085	200	360	0.9
LPR6235-253LMR_	25	0.74	13.7	1300	1.3
LPR6235-253PMR_	25	0.20	72.0	580	0.7

注释

When ordering, please specify termination and packaging codes: e.g. LPR6235-253PMRC
Inductance is measured at 100 kHz, 0.1 Vrms, 0 Adc for -253LMR. All other values are measured at 10 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A LCR meter or equivalent.
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 4191A or equivalent.
Isat: DC current applied to L1 at which the inductance drops 10% from its value without current.

端子:

R = Matte tin over nickel over silver
Q = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
P = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (350 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (1500 parts per full reel).

环境

环境:

符合RoHS , 无卤素

环境温度范围:

−40°C to +85°C with Irms current.

储存温度范围:

Component: −40°C to +125°C. Tape and reel packaging: −40°C to +80°C

最高元件温度:

+125°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

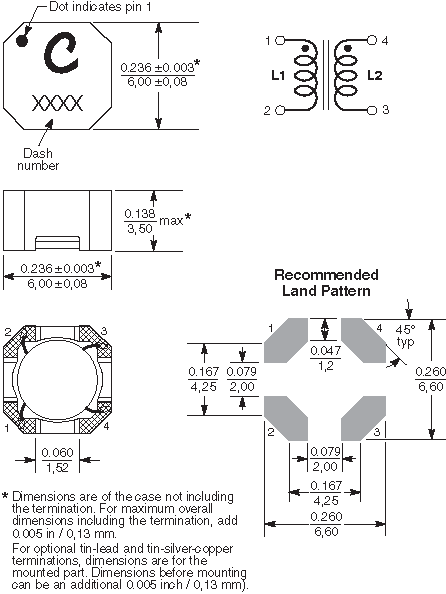

原理图

物理特性

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
350	1500*	178/330	60/100	13	22,4	16,4	16	12	4	2	3,68	0,3

* Special order

一般规格

核心材料:

Ferrite

重量:

460 - 480 mg

包装:

350/7″ reel; 1500/13″ reel Plastic tape: 16 mm wide, 0.3 mm thick, 12 mm pocket spacing, 3.68 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

推荐的取放吸嘴:

OD: 6.2 mm; ID: ≤ 3.1 mm

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
