PFD2015 Series

Coupled Power Inductors

Coilcraft PFD2015 Series of miniature 1:1 coupled power inductors are used as low-power isolation transformers in SEPIC applications, or as common mode chokes. A wide range of inductance values means a large selection of bandwidths, all with low insertion loss.

Smallest coupled shielded power inductor – 2.2 × 1.45 mm footprint, 1.5 mm high
Excellent as low-power isolation transformers
Great for Flyback, SEPIC, Ćuk, Zeta and other applications
Magnetically shielded for compact size and minimized EM

立即购买:

零件号

查找我的元件

计数	单价
1	$0.94
100	$0.76
250	$0.59
500	$0.41
1000	$0.34
2000	$0.29
5000	$0.27

对于大批量采购或非库存产品，点击这里请求报价。

Termination

R = Matte tin over nickel over silver-platinum-glass frit (Special order, added cost)

E = Silver-palladium-platinum-glass frit

Packaging

C = 7" machine-ready reel

B = Less than full reel

Tolerance

M = 20%

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

反激式应用

零件号 1 (Hover for schematics)	电感 (µH) 2 (公差: ±20%)	DCR max (Ω) 3	隔离电压 (V)	漏电感 (nH) 5	匝数比
零件号 1 (Hover for schematics)	电感 (µH) 2 (公差: ±20%)	DCR max (Ω) 3	隔离电压 (V)	漏电感 (nH) 5	匝数比
PFD2015-102ME_	1.0	0.17	250	65	1 : 1
PFD2015-122ME_	1.2	0.18	250	71	1 : 1
PFD2015-182ME_	1.8	0.29	250	110	1 : 1
PFD2015-272ME_	2.7	0.48	250	162	1 : 1
PFD2015-332ME_	3.3	0.67	250	200	1 : 1
PFD2015-472ME_	4.7	1.0	250	285	1 : 1
PFD2015-682ME_	6.8	1.8	250	415	1 : 1
PFD2015-822ME_	8.2	2.5	250	500	1 : 1
PFD2015-103ME_	10	3.4	250	590	1 : 1

SEPIC应用

零件号 1 (Hover for schematics)	电感 (µH) 2 (公差: ±20%)	DCR max (Ω) 3	SRF typ (MHz) 4	耦合系数	漏电感 (nH) 5	Isat (A) 6			Irms (A)
零件号 1 (Hover for schematics)	电感 (µH) 2 (公差: ±20%)	DCR max (Ω) 3	SRF typ (MHz) 4	耦合系数	漏电感 (nH) 5	10% drop	20% drop	30% drop	两个绕组 7	一个绕组 8
PFD2015-102ME_	1.0	0.17	380	0.97	65	0.85	1.1	1.3	0.80	1.1
PFD2015-122ME_	1.2	0.18	310	0.97	71	0.80	1.1	1.2	0.75	1.1
PFD2015-182ME_	1.8	0.29	265	0.97	110	0.70	0.85	1.0	0.49	0.69
PFD2015-272ME_	2.7	0.48	220	0.97	162	0.65	0.82	0.88	0.41	0.58
PFD2015-332ME_	3.3	0.67	180	0.97	200	0.57	0.71	0.77	0.37	0.53
PFD2015-472ME_	4.7	1.0	160	0.97	285	0.44	0.55	0.60	0.26	0.37
PFD2015-682ME_	6.8	1.8	130	0.97	415	0.37	0.42	0.47	0.19	0.27
PFD2015-822ME_	8.2	2.5	125	0.97	500	0.35	0.38	0.42	0.15	0.21
PFD2015-103ME_	10	3.4	110	0.97	590	0.30	0.34	0.37	0.13	0.19

注释

When ordering, please specify packaging code: e.g. PFD2015-103MEC
Inductance shown for each winding, measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A LCR meter or equivalent.
For SEPIC: When leads are connected in parallel, inductance is the same value. When leads are connected in series, inductance is four times the value.
DCR is for each winding. DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
For SEPIC: When leads are connected in parallel, DCR is half the value. When leads are connected in series, DCR is twice the value.
For SEPIC: SRF measured using an Agilent/HP 4191A or equivalent. When leads are connected in parallel, SRF is the same value.
Leakage inductance is for L1 and is measured with L2 shorted.
For SEPIC: DC current, at which the inductance drops the specified amount from its value without current. It is the sum of the current flowing in both windings.
For SEPIC: Irms, both windings: Equal current when applied to each winding simultaneously that causes a 40°C temperature rise from 25°C ambient. Determine temperature rise.
For SEPIC: Irms, one winding: Maximum current when applied to one winding that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Determine temperature rise.

端子:

E = RoHS compliant silver-palladium-platinum-glass frit.
R = RoHS compliant matte tin over nickel over silver-platinum-glass frit. (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (2000 parts per full reel).
B = Less than full reel. In tape, but not machine ready. To have a leader and trailer added ($25 charge), use code letter D instead.
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (7500 parts per full reel).

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +85°C with Irms current

储存温度范围:

Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+125°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

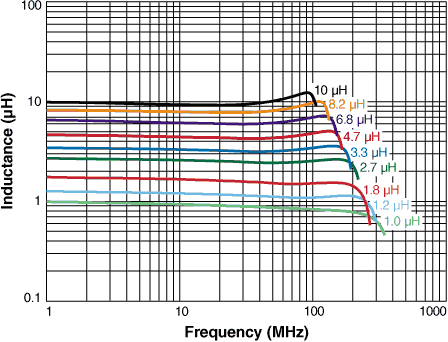

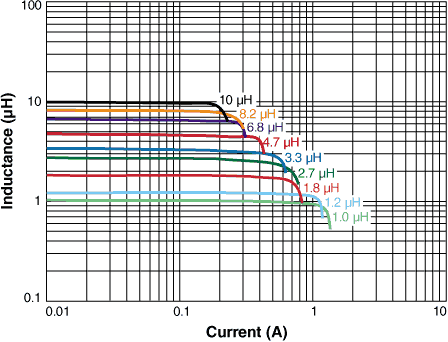

Inductance vs Current

Inductance vs. Frequency

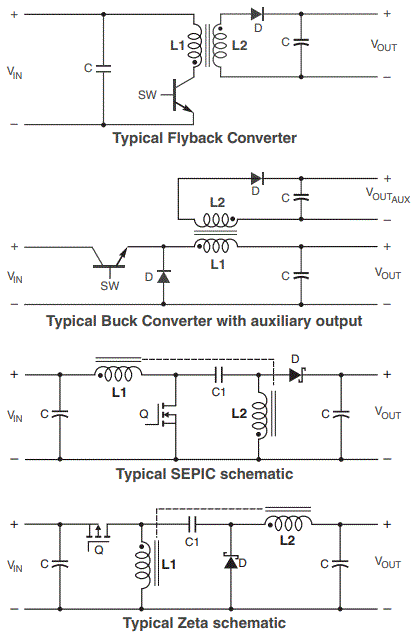

原理图

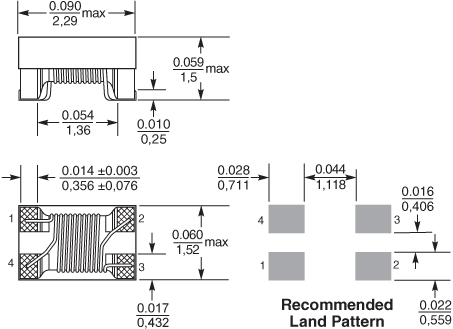

物理特性

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	7500*	178/330	60/100	13	14,4	8,4	8	4	4	2	1,63	0,23

* Special order

一般规格

核心材料:

Ferrite

重量:

13 – 23 mg

包装:

2000/7″ reel; 7500/13″ reel Plastic tape: 8 mm wide, 0.23 mm thick, 4 mm pocket spacing, 1.63 mm pocket depth

Winding to Winding Isolation:

250 Vrms, one minute

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested with pure water or alcohol only. More info.

PFD2015 Series

Coupled Power Inductors
