MSD1514 Series

Shielded Coupled Power Inductors

Coilcraft's MSD1514 Series of 1:1 coupled power inductors feature magnetic shielding for compact packaging and tight winding-to-winding coupling. They are ideal for Flyback, SEPIC, Ćuk, Zeta and other applications.

Ideal for Flyback, SEPIC, Ćuk, Zeta and other applications
Magnetic shielding allows high-density mounting
Tight winding coupling
Industry standard footprint

See Selecting inductors for SEPIC

立即购买:

零件号

查找我的元件

计数	单价
1	$4.39
175	$3.86
700	$1.74
1400	$1.36
2800	$1.17
5250	$1.08

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

M = 20%

Termination

E = Matte tin over nickel

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C463	41 (3 of each)	$160.00

规格

Electrical specifications at 25°C.

反激式应用

零件号 1 (Hover for schematics)	电感 (µH) 2	公差 (%)	DCR (Ω) 3		隔离电压 (V)	漏电感 (µH) 5	匝数比
零件号 1 (Hover for schematics)	电感 (µH) 2	公差 (%)	typ	max	隔离电压 (V)	漏电感 (µH) 5	匝数比
MSD1514-252ME_	2.5	20	0.010	0.012	500	0.20	1 : 1
MSD1514-472ME_	4.7	20	0.012	0.014	500	0.20	1 : 1
MSD1514-103ME_	10	20	0.015	0.018	500	0.40	1 : 1
MSD1514-123ME_	12	20	0.018	0.022	500	0.40	1 : 1
MSD1514-153ME_	15	20	0.024	0.028	500	0.42	1 : 1
MSD1514-223ME_	22	20	0.031	0.036	500	0.45	1 : 1
MSD1514-273ME_	27	20	0.034	0.039	500	0.45	1 : 1
MSD1514-333ME_	33	20	0.045	0.052	500	0.45	1 : 1
MSD1514-473ME_	47	20	0.065	0.075	500	0.55	1 : 1
MSD1514-683ME_	68	20	0.078	0.090	500	0.55	1 : 1
MSD1514-104KE_	100	10	0.12	0.13	500	0.55	1 : 1
MSD1514-224KE_	220	10	0.26	0.29	500	0.70	1 : 1
MSD1514-334KE_	330	10	0.33	0.37	500	0.80	1 : 1
MSD1514-474KE_	470	10	0.50	0.55	500	1.2	1 : 1
MSD1514-105KE_	1000	10	1.1	1.3	500	2.0	1 : 1

SEPIC应用

零件号 1 (Hover for schematics)	电感 (µH) 2	公差 (%)	DCR (Ω) 3		SRF typ (MHz) 4	耦合系数	漏电感 (µH) 5	Isat (A) 6			Irms (A)
零件号 1 (Hover for schematics)	电感 (µH) 2	公差 (%)	typ	max	SRF typ (MHz) 4	耦合系数	漏电感 (µH) 5	10% drop	20% drop	30% drop	两个绕组 7	一个绕组 8
MSD1514-252ME_	2.5	20	0.010	0.012	34.0	0.97	0.20	25.0	28.0	30.5	6.0	7.8
MSD1514-472ME_	4.7	20	0.012	0.014	25.0	0.98	0.20	19.5	21.8	23.7	5.4	7.6
MSD1514-103ME_	10	20	0.015	0.018	16.5	0.99	0.40	13.4	15.0	16.2	4.8	6.8
MSD1514-123ME_	12	20	0.018	0.022	14.5	0.99	0.40	12.2	13.7	14.8	4.7	6.6
MSD1514-153ME_	15	20	0.024	0.028	11.0	>0.99	0.42	10.9	12.2	13.3	4.1	5.8
MSD1514-223ME_	22	20	0.031	0.036	10.0	>0.99	0.45	9.0	10.1	11.0	3.6	5.1
MSD1514-273ME_	27	20	0.034	0.039	8.5	>0.99	0.45	8.1	9.1	9.9	3.5	4.7
MSD1514-333ME_	33	20	0.045	0.052	7.2	>0.99	0.45	7.4	8.2	9.0	3.0	3.9
MSD1514-473ME_	47	20	0.065	0.075	5.6	>0.99	0.55	6.2	6.9	7.5	2.6	3.5
MSD1514-683ME_	68	20	0.078	0.090	5.2	>0.99	0.55	5.1	5.7	6.2	2.2	3.2
MSD1514-104KE_	100	10	0.12	0.13	3.8	>0.99	0.55	4.2	4.8	5.2	2.0	2.5
MSD1514-224KE_	220	10	0.26	0.29	2.3	>0.99	0.70	2.9	3.2	3.5	1.3	1.7
MSD1514-334KE_	330	10	0.33	0.37	2.1	>0.99	0.80	2.3	2.6	2.8	1.2	1.6
MSD1514-474KE_	470	10	0.50	0.55	1.7	>0.99	1.2	2.0	2.2	2.4	0.92	1.3
MSD1514-105KE_	1000	10	1.1	1.3	1.1	>0.99	2.0	1.3	1.5	1.6	0.66	0.77

注释

When ordering, please specify termination and packaging codes: e.g. MSD1583-105KEC
Inductance shown for each winding, measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A LCR meter or equivalent. When leads are connected in parallel, inductance is the same value. When leads are connected in series, inductance is four times the value
DCR is for each winding. When leads are connected in parallel, DCR is half the value. When leads are connected in series, DCR is twice the value.
SRF measured using an Agilent/HP 4191A or equivalent. When leads are connected in parallel, SRF is the same value.
Leakage Inductance is for L1 and is measured with L2 shorted.
Isat: DC current, at which the inductance drops the specified amount from its value without current. It is the sum of the current flowing in both windings.
Irms, both windings: Equal current when applied to each winding simultaneously that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Determine temperature rise.
Irms, one winding: Current when applied to one winding that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Determine temperature rise.

端子:

E = Matte tin over nickel over phos bronze.
Q = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
P = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (175 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +85°C with (40°C rise) Irms current.

储存温度范围:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+125°C (ambient + temp rise).

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

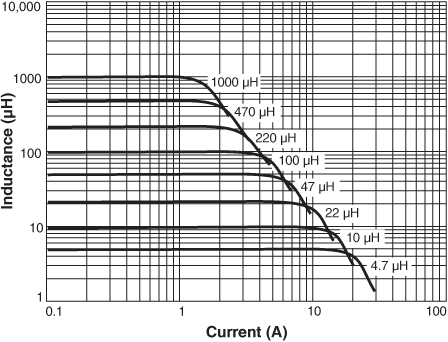

Inductance vs Current

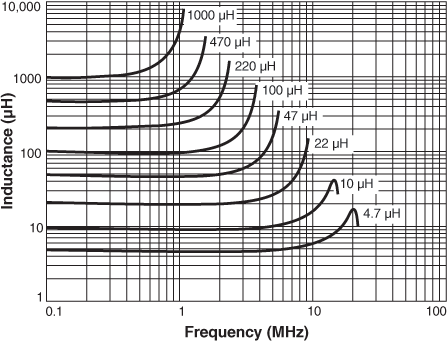

Inductance vs Frequency

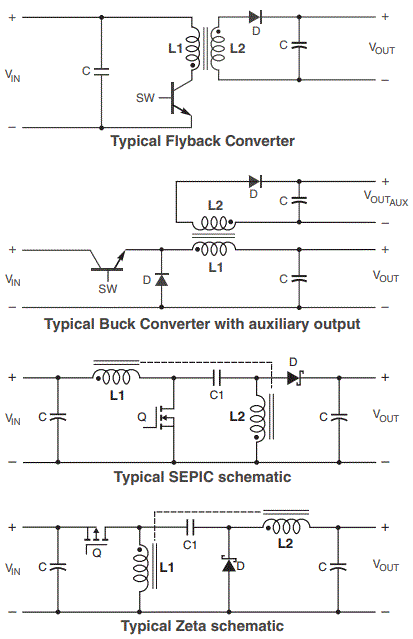

原理图

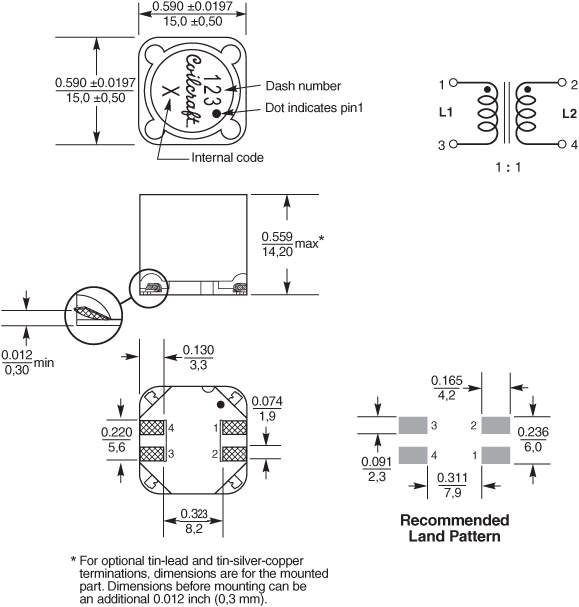

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
175	330	100	13	38,4	32,4	32	24	4	2	14.3	0,5

一般规格

核心材料:

Ferrite

重量:

9.0 – 11.8 g

包装:

175/13″ reel; Plastic tape: 32 mm wide, 0.5 mm thick, 24 mm pocket spacing, 14.3 mm pocket depth

Winding to Winding Isolation:

500 Vrms, one minute

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested with pure water or alcohol only. More info.

MSD1514 Series

Shielded Coupled Power Inductors
