LPD4012 Series

Shielded Coupled Power Inductors

These are new halogen-free parts, recommended for new designs. They are identical in form, fit and function to the old LPD4012 parts. Existing customers will continue to be supported. (View old data sheet here.)

Coilcraft LPD4012 Series surface-mount 1:1 coupled power inductors are ideal for Flyback, SEPIC, Cuk, Zeta and other applications. Their compact, low-profile design and magnetic shielding make them ideal for high-density circuits.

Low-profile design with smaller footprint than MSD Family
Ideal for Flyback, SEPIC, Ćuk, Zeta and other applications
Magnetically shielded to minimize EMI
AEC-Q200 Grade 1 (–40°C to +125°C)

See Selecting inductors for SEPIC

Need parts for space, military or other critical applications?
See Coilcraft AE416PJD Series | See Coilcraft ML416PJD Series | See Coilcraft MS416PJD Series

立即购买:

零件号

查找我的元件

计数	单价
1	$2.92
250	$2.46
500	$1.83
1000	$1.37

对于大批量采购或非库存产品，点击这里请求报价。

Termination

R = Matte tin over nickel over silver

Packaging

C = 7" machine-ready reel

Tolerance

N = 30%

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C463	41 (3 of each)	$160.00

规格

Electrical specifications at 25°C.

反激式应用

零件号 1 (Hover for schematics)	电感 (µH) 2	公差 (%)	DCR max (Ω) 3	隔离电压 (V)	漏电感 (µH) 5	匝数比
零件号 1 (Hover for schematics)	电感 (µH) 2	公差 (%)	DCR max (Ω) 3	隔离电压 (V)	漏电感 (µH) 5	匝数比
LPD4012-331NR_	0.33	30	0.042	100	0.060	1 : 1
LPD4012-561NR_	0.56	30	0.087	100	0.080	1 : 1
LPD4012-821NR_	0.82	30	0.10	100	0.090	1 : 1
LPD4012-152NR_	1.5	30	0.19	100	0.11	1 : 1
LPD4012-222NR_	2.2	30	0.24	100	0.14	1 : 1
LPD4012-332NR_	3.3	30	0.32	100	0.16	1 : 1
LPD4012-472MR_	4.7	20	0.50	100	0.18	1 : 1
LPD4012-562MR_	5.6	20	0.62	100	0.20	1 : 1
LPD4012-682MR_	6.8	20	0.53	100	0.22	1 : 1
LPD4012-822MR_	8.2	20	0.60	100	0.24	1 : 1
LPD4012-103MR_	10	20	0.75	100	0.26	1 : 1
LPD4012-153MR_	15	20	1.1	100	0.30	1 : 1
LPD4012-223MR_	22	20	1.6	100	0.34	1 : 1
LPD4012-333MR_	33	20	1.8	100	0.41	1 : 1
LPD4012-473MR_	47	20	2.5	100	0.51	1 : 1
LPD4012-683MR_	68	20	3.2	100	0.66	1 : 1
LPD4012-823MR_	82	20	3.7	100	0.75	1 : 1
LPD4012-104MR_	100	20	4.8	100	0.86	1 : 1
LPD4012-124MR_	120	20	5.5	100	0.98	1 : 1
LPD4012-154MR_	150	20	6.9	100	1.2	1 : 1
LPD4012-184MR_	180	20	8.8	100	1.4	1 : 1
LPD4012-224MR_	220	20	11.2	100	1.7	1 : 1
LPD4012-334MR_	330	20	17.0	100	2.5	1 : 1

SEPIC应用

零件号 1 (Hover for schematics)	电感 (µH) 2	公差 (%)	DCR max (Ω) 3	SRF typ (MHz) 4	耦合系数	漏电感 (µH) 5	Isat (A) 6			Irms (A)
零件号 1 (Hover for schematics)	电感 (µH) 2	公差 (%)	DCR max (Ω) 3	SRF typ (MHz) 4	耦合系数	漏电感 (µH) 5	10% drop	20% drop	30% drop	两个绕组 7	一个绕组 8
LPD4012-331NR_	0.33	30	0.042	255	0.94	0.060	5.2	5.4	5.6	1.9	2.7
LPD4012-561NR_	0.56	30	0.087	185	0.95	0.080	3.7	3.8	3.9	1.3	1.8
LPD4012-821NR_	0.82	30	0.10	130	0.97	0.090	3.2	3.3	3.4	1.2	1.7
LPD4012-152NR_	1.5	30	0.19	86.0	0.97	0.11	2.5	2.8	2.9	1.2	1.6
LPD4012-222NR_	2.2	30	0.24	70.0	0.98	0.14	2.3	2.4	2.5	0.95	1.4
LPD4012-332NR_	3.3	30	0.32	48.0	0.98	0.16	1.8	1.9	2.0	0.75	1.1
LPD4012-472MR_	4.7	20	0.50	39.0	0.98	0.18	1.7	1.8	1.9	0.65	0.92
LPD4012-562MR_	5.6	20	0.62	32.0	0.99	0.20	1.6	1.7	1.8	0.55	0.78
LPD4012-682MR_	6.8	20	0.53	31.0	0.99	0.22	1.2	1.5	1.6	0.60	0.86
LPD4012-822MR_	8.2	20	0.60	29.0	0.99	0.24	1.1	1.2	1.3	0.55	0.78
LPD4012-103MR_	10	20	0.75	25.0	0.99	0.26	0.98	1.0	1.1	0.50	0.71
LPD4012-153MR_	15	20	1.1	21.0	0.99	0.30	0.90	0.92	0.93	0.43	0.60
LPD4012-223MR_	22	20	1.6	15.0	0.99	0.34	0.70	0.82	0.84	0.34	0.48
LPD4012-333MR_	33	20	1.8	12.0	>0.99	0.41	0.37	0.57	0.58	0.31	0.44
LPD4012-473MR_	47	20	2.5	8.8	>0.99	0.51	0.33	0.39	0.40	0.28	0.39
LPD4012-683MR_	68	20	3.2	7.8	>0.99	0.66	0.27	0.36	0.37	0.25	0.36
LPD4012-823MR_	82	20	3.7	7.3	>0.99	0.75	0.27	0.27	0.29	0.23	0.31
LPD4012-104MR_	100	20	4.8	6.1	>0.99	0.86	0.22	0.28	0.29	0.20	0.27
LPD4012-124MR_	120	20	5.5	5.3	>0.99	0.98	0.21	0.26	0.27	0.19	0.27
LPD4012-154MR_	150	20	6.9	4.6	>0.99	1.2	0.18	0.26	0.27	0.17	0.23
LPD4012-184MR_	180	20	8.8	4.1	>0.99	1.4	0.16	0.21	0.23	0.14	0.18
LPD4012-224MR_	220	20	11.2	3.3	>0.99	1.7	0.15	0.16	0.17	0.12	0.17
LPD4012-334MR_	330	20	17.0	2.8	>0.99	2.5	0.13	0.16	0.16	0.10	0.14

注释

When ordering, please specify termination and packaging codes: e.g. LPD4012-564MRC
Inductance shown for each winding, measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A LCR meter or equivalent. When leads are connected in parallel, inductance is the same value. When leads are connected in series, inductance is four times the value
DCR is for each winding. When leads are connected in parallel, DCR is half the value. When leads are connected in series, DCR is twice the value. DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
SRF measured using an Agilent/HP 4191A or equivalent. When leads are connected in parallel, SRF is the same value.
Leakage Inductance is for L1 and is measured with L2 shorted.
Isat: DC current, at which the inductance drops the specified amount from its value without current. It is the sum of the current flowing in both windings.
Irms, both windings: Equal current when applied to each winding simultaneously that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Determine temperature rise.
Irms, one winding: Current when applied to one winding that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Determine temperature rise.

端子:

R = Matte tin over nickel over silver.
Q = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
P = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (1000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (3500 parts per full reel).

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +125°C with (40°C rise) Irms current

储存温度范围:

Component: –40°C to +165°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+165°C (ambient + temperature rise).

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

Inductance vs. Current

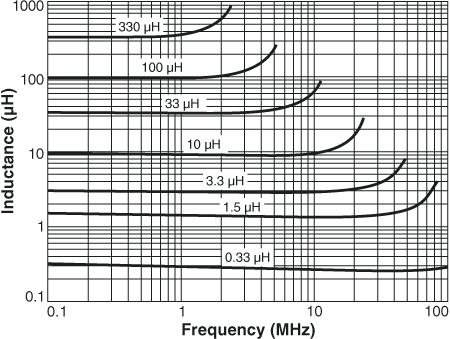

Inductance vs. Frequency

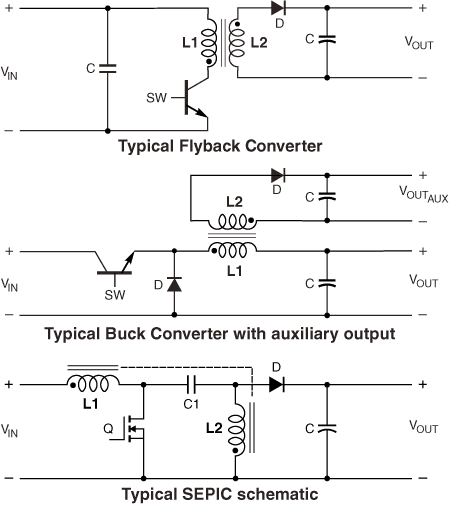

原理图

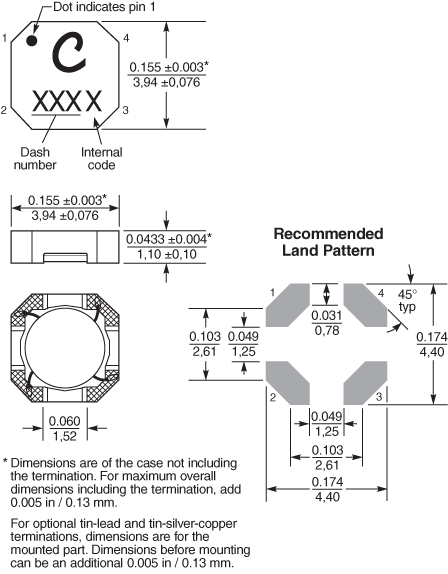

物理特性

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
1000	3500*	178/330	60/100	13	18,4	12,4	12	8	4	2	1,45	0,25

* Special order

一般规格

核心材料:

Ferrite

重量:

54 - 64 mg

包装:

1000/7″ reel; 3500/13″ reel Plastic tape: 12 mm wide, 0.25 mm thick, 8 mm pocket spacing, 1.45 mm pocket depth

Winding to Winding Isolation:

100 Vrms, one minute

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

推荐的取放吸嘴:

OD: 4 mm; ID: ≤2 mm

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
