PFD2015 Series

Miniature Common Mode Chokes

Our PFD2015 Series miniature common mode chokes provide both common mode and differential mode filtering in a single device that measures just 2.29 x 1.52 x 1.5 mm. They are ideal for use in both power line and signal line applications, providing 250 Vrms, one minute winding-to-winding isolation.

Common mode and differential mode filtering in a single device
Compact package measures just 2.29 x 1.52 x 1.5 mm
Ideal for use in both power line and signal line applications
Up to 550 MHz differential mode cutoff frequency
250 Vrms, one minute interwinding isolation

Refer to Designing Common Mode Filters for design guidance.

立即购买:

零件号

查找我的元件

计数	单价
1	$0.94
100	$0.76
250	$0.59
500	$0.41
1000	$0.34
2000	$0.29
5000	$0.27

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

M = 20%

Termination

R = Matte tin over nickel over silver-platinum-glass frit (Special order, added cost)

E = Silver-palladium-platinum-glass frit

Packaging

C = 7" machine-ready reel

B = Less than full reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

零件号 1	线组数	共模峰值阻抗 (kΩ)	截止频率 (MHz) 2	最小电感 (µH) 3	Irms (A) 4	DCR max (Ω) 5	隔离电压 (Vrms) 6
零件号 1	线组数	共模峰值阻抗 (kΩ)	截止频率 (MHz) 2	最小电感 (µH) 3	Irms (A) 4	DCR max (Ω) 5	隔离电压 (Vrms) 6
PFD2015-102ME_	2	2.30 @ 400 MHz	550	0.80	0.800	0.165	250
PFD2015-122ME_	2	3.45 @ 350 MHz	560	0.96	0.750	0.175	250
PFD2015-182ME_	2	4.21 @ 510 MHz	350	1.44	0.490	0.294	250
PFD2015-272ME_	2	6.16 @ 660 MHz	380	2.16	0.410	0.477	250
PFD2015-332ME_	2	7.14 @ 610 MHz	330	2.64	0.370	0.670	250
PFD2015-472ME_	2	9.78 @ 460 MHz	230	3.76	0.260	1.000	250
PFD2015-682ME_	2	14.18 @ 290 MHz	260	5.44	0.187	1.750	250
PFD2015-822ME_	2	13.81 @ 250 MHz	170	6.56	0.150	2.500	250
PFD2015-103ME_	2	14.73 @ 470 MHz	220	8.00	0.130	3.400	250

注释

When ordering, please specify packaging code: e.g. PFD2015-103MEC
Frequency at which the differential mode attenuation equals 3 dB
Inductance shown for each winding, measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A LCR meter or equivalent.
Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
DCR is for each winding, measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Interwinding isolation (hipot) tested for one minute.

端子:

E = RoHS compliant silver-palladium-platinum-glass frit.
R = RoHS compliant matte tin over nickel over silver-platinum-glass frit. (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (2000 parts per full reel).
B = Less than full reel. In tape, but not machine ready. To have a leader and trailer added ($25 charge), use code letter C instead.
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (7500 parts per full reel).

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +125°C

储存温度范围:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+125°C (Ambient + temperature rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

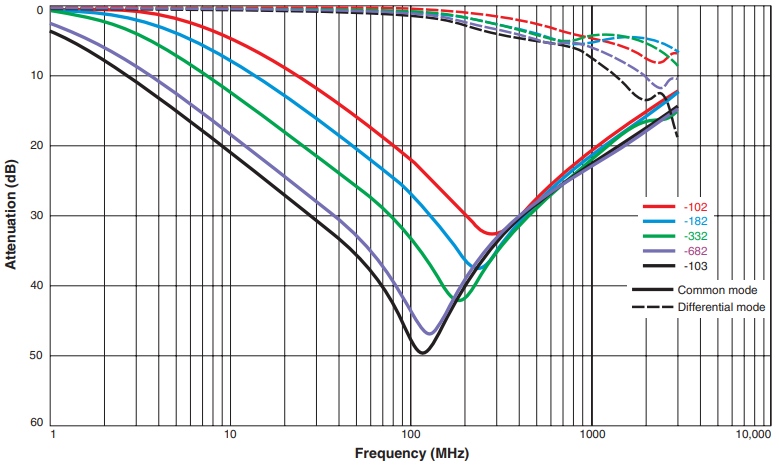

Attenuation (Ref: 50 Ohms)

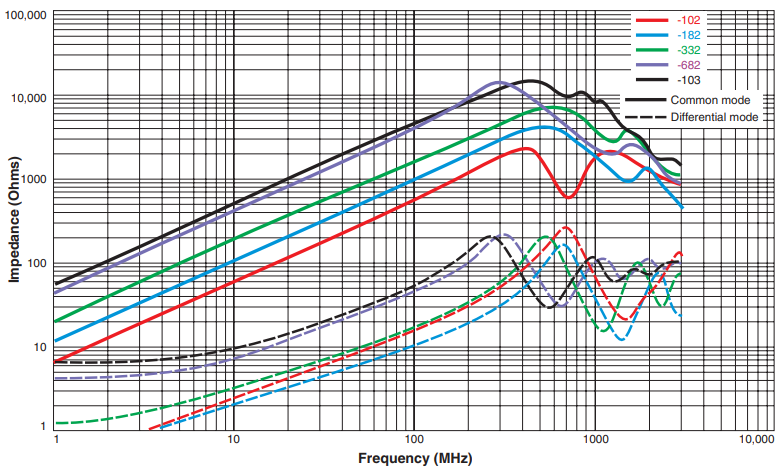

Impedance vs Frequency

原理图

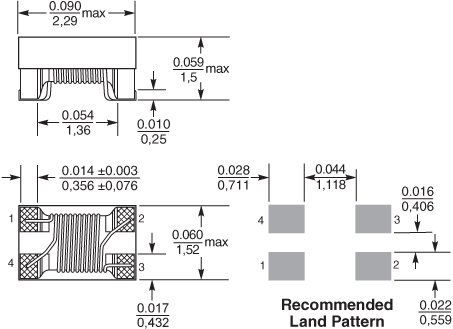

物理特性

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	7500*	178/330	60/100	13	14,4	8,4	8	8	4	2	1,63	0,23

* Special order

一般规格

核心材料:

Ferrite

重量:

13 – 23 mg

Winding to Winding Isolation:

250 Vrms, one minute

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
