MSD1583 Series

Common Mode Chokes

Our MSD1583 Series common mode chokes provide both common mode and differential mode filtering in a single device. They are ideal for use in both power line and signal line applications, providing 500 Vrms, one minute winding-to-winding isolation.

Common- and differential-mode filtering in a single device
Ideal for use in both power line and signal line applications
Up to 44 MHz differential mode cutoff frequency
500 Vrms, one minute winding-to-winding isolation

Refer to Designing Common Mode Filters for design guidance.

立即购买:

零件号

查找我的元件

计数	单价
1	$3.95
300	$2.59
600	$1.56
1200	$1.21
2400	$1.04
4800	$0.96

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

M = 20%

Termination

E = Matte tin over nickel

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

零件号 1	线组数	共模峰值阻抗 (kΩ)	截止频率 (MHz) 2	最小电感 (µH) 3	Irms (A) 4	DCR max (Ω) 5	隔离电压 (Vrms) 6
零件号 1	线组数	共模峰值阻抗 (kΩ)	截止频率 (MHz) 2	最小电感 (µH) 3	Irms (A) 4	DCR max (Ω) 5	隔离电压 (Vrms) 6
MSD1583-103ME_	2	10.86 @ 17.0 MHz	38.0	8.0	3.68	0.031	500
MSD1583-123ME_	2	12.11 @ 16.0 MHz	30.0	9.6	3.54	0.037	500
MSD1583-153ME_	2	12.31 @ 14.0 MHz	25.0	12	3.18	0.045	500
MSD1583-183ME_	2	15.77 @ 13.0 MHz	25.0	14	3.04	0.048	500
MSD1583-223ME_	2	14.47 @ 12.0 MHz	28.0	18	2.44	0.065	500
MSD1583-333ME_	2	33.82 @ 9.0 MHz	28.0	26	2.16	0.095	500
MSD1583-473ME_	2	39.79 @ 7.6 MHz	23.0	38	1.98	0.115	500
MSD1583-683ME_	2	49.24 @ 5.9 MHz	17.0	54	1.56	0.165	500
MSD1583-104KE_	2	69.83 @ 5.0 MHz	16.0	90	1.24	0.260	500
MSD1583-154KE_	2	73.09 @ 3.9 MHz	12.0	135	1.06	0.380	500
MSD1583-224KE_	2	78.91 @ 3.3 MHz	9.7	198	0.92	0.460	500
MSD1583-474KE_	2	104.90 @ 2.2 MHz	7.4	423	0.65	1.040	500
MSD1583-105KE_	2	129.00 @ 1.5 MHz	5.8	900	0.42	2.400	500

注释

When ordering, please specify termination and packaging codes: e.g. MSD1583-105KEC
Frequency at which the differential mode attenuation equals 3 dB
Inductance shown for each winding, measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A LCR meter or equivalent.
Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
DCR is for each winding, measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Interwinding isolation (hipot) tested for one minute.

端子:

E = RoHS compliant matte tin over nickel over phos bronze.
Q = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
P = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (300 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +85°C with Irms current

储存温度范围:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+125°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

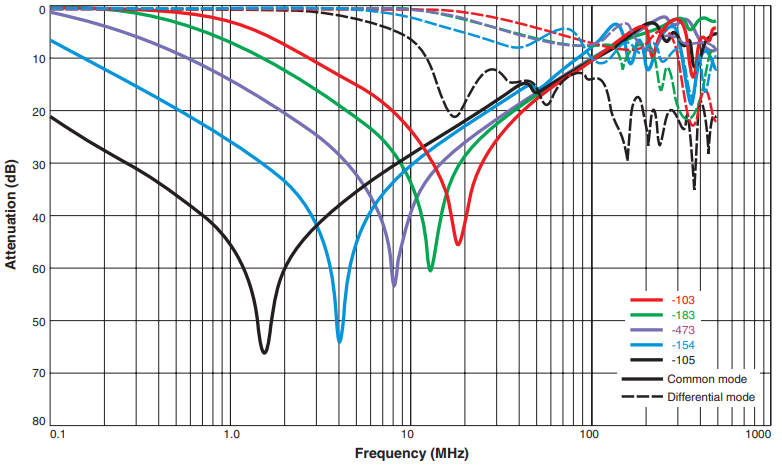

Typical Attenuation (Ref: 50 Ohms)

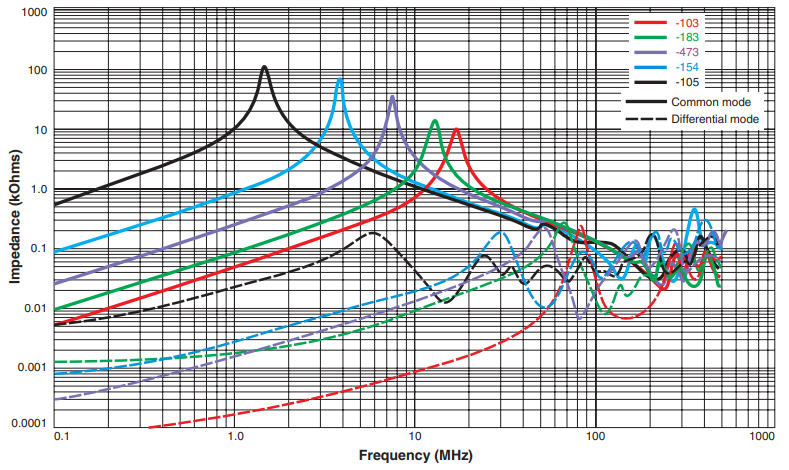

Typical Impedance vs Frequency

原理图

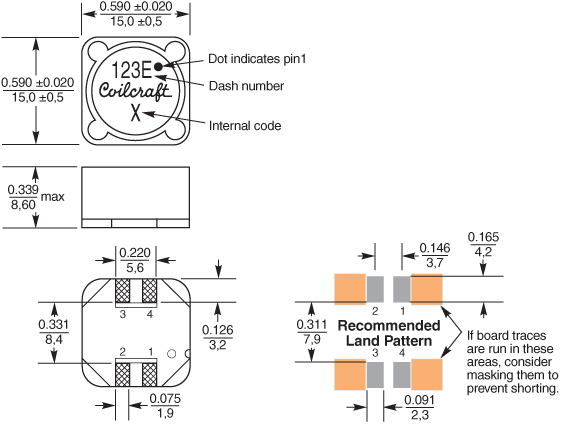

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
300	330	100	13	38,4	32,4	32	24	4	2	8,6	0,5

一般规格

核心材料:

Ferrite

重量:

3.7 – 4.4 g

Winding to Winding Isolation:

500 Vrms, one minute

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
