MSD1260 Series

Common Mode Chokes

符合RoHS AEC-Q flag
Our MSD1260 Series common mode chokes provide both common mode and differential mode filtering in a single device. They are ideal for use in both power line and signal line applications, providing 500 Vrms, one minute winding-to-winding isolation.

  • Common mode and differential mode filtering in a single device
  • Ideal for use in both power line and signal line applications
  • Up to 180 MHz differential mode cutoff frequency
  • 500 Vrms, one minute winding-to-winding isolation
  • AEC-Q200 Grade 3 (−40°C to +85°C)
Refer to Designing Common Mode Filters for design guidance.

立即购买:
查找我的元件
计数 单价
1 $2.68
250 $1.74
500 $1.05
1000 $0.81
2500 $0.70
5000 $0.64

对于大批量采购或非库存产品，点击这里请求报价。

. 现货，可今天发货.
索取样品:
查找我的元件

规格

Electrical specifications at 25°C.

零件号 1 线组数 共模
峰值阻抗 (kΩ) 		截止
频率 (MHz) 2 		最小
电感 (µH) 3 		Irms (A) 4 DCR max (Ω) 5 隔离
电压 (Vrms) 6
MSD1260-472ML_ 2 7.39 @ 43.0 MHz 180 3.8 3.16 0.036 500
MSD1260-562ML_ 2 8.07 @ 33.0 MHz 160 4.5 3.00 0.040 500
MSD1260-682ML_ 2 7.45 @ 21.0 MHz 100 5.4 2.75 0.048 500
MSD1260-822ML_ 2 12.74 @ 27.0 MHz 120 6.6 2.63 0.052 500
MSD1260-103ML_ 2 10.36 @ 19.0 MHz 95.0 8.0 2.45 0.060 500
MSD1260-123ML_ 2 11.72 @ 18.0 MHz 74.0 9.6 2.21 0.074 500
MSD1260-153ML_ 2 15.88 @ 21.0 MHz 75.0 12 2.06 0.085 500
MSD1260-183ML_ 2 19.22 @ 17.0 MHz 58.0 14 1.93 0.097 500
MSD1260-223ML_ 2 23.97 @ 17.0 MHz 68.0 18 1.76 0.116 500
MSD1260-273ML_ 2 23.83 @ 13.0 MHz 48.0 22 1.70 0.124 500
MSD1260-333ML_ 2 28.87 @ 13.0 MHz 43.0 26 1.64 0.134 500
MSD1260-393ML_ 2 24.31 @ 11.0 MHz 39.0 31 1.59 0.142 500
MSD1260-473ML_ 2 27.25 @ 10.0 MHz 45.0 38 1.44 0.174 500
MSD1260-563ML_ 2 39.80 @ 8.9 MHz 33.0 45 1.35 0.198 500
MSD1260-683ML_ 2 41.12 @ 7.7 MHz 31.0 54 1.29 0.216 500
MSD1260-823ML_ 2 57.65 @ 8.0 MHz 31.0 66 1.15 0.274 500
MSD1260-104ML_ 2 58.69 @ 6.5 MHz 21.0 80 1.06 0.322 500
MSD1260-124KL_ 2 51.20 @ 4.9 MHz 24.0 108 0.93 0.418 500
MSD1260-154KL_ 2 41.37 @ 4.0 MHz 29.0 135 0.87 0.476 500
MSD1260-184KL_ 2 52.76 @ 4.3 MHz 19.0 162 0.82 0.536 500
MSD1260-224KL_ 2 92.17 @ 4.5 MHz 33.0 198 0.72 0.691 500
MSD1260-274KL_ 2 46.65 @ 3.3 MHz 27.0 243 0.67 0.806 500
MSD1260-334KL_ 2 118.00 @ 3.4 MHz 32.0 297 0.57 1.090 500
MSD1260-394KL_ 2 67.94 @ 2.4 MHz 14.0 351 0.55 1.200 500
MSD1260-474KL_ 2 114.70 @ 2.7 MHz 13.0 423 0.48 1.590 500
MSD1260-564KL_ 2 76.40 @ 2.3 MHz 11.0 504 0.45 1.810 500
MSD1260-684KL_ 2 218.90 @ 2.5 MHz 14.0 612 0.42 2.060 500
MSD1260-824KL_ 2 212.50 @ 2.2 MHz 4.9 738 0.37 2.650 500
MSD1260-105KL_ 2 124.20 @ 1.8 MHz 6.6 900 0.34 3.060 500
注释
  1. When ordering, please specify termination and packaging codes: e.g. MSD1260-105KLC
  2. Frequency at which the differential mode attenuation equals 3 dB
  3. Inductance shown for each winding, measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A LCR meter or equivalent.
  4. Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
  5. DCR is for each winding, measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
  6. Interwinding isolation (hipot) tested for one minute.



端子:

  • L = RoHS compliant matte tin over nickel over phos bronze.
  • T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
  • S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

  • D = 13" reel, machine-ready
    EIA-481 embossed plastic tape (500 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • B = Less than full reel
    In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.
环境
环境:
符合RoHS
环境温度范围:
–40°C to +85°C with Irms current
储存温度范围:
Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C
最高元件温度:
+125°C (ambient + temp rise)
故障率（FIT）/平均故障间隔时间（MTBF）:
See FIT/MTBF Calculations

性能曲线

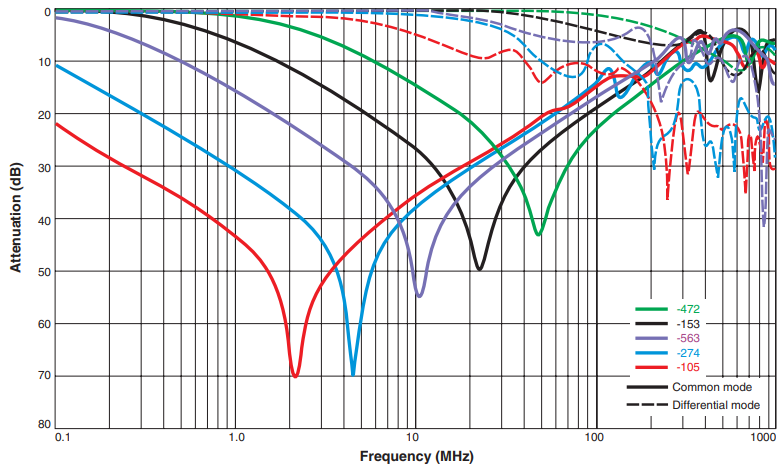

Attenuation (Ref: 50 Ohms)

Attenuation (Ref: 50 Ohms)

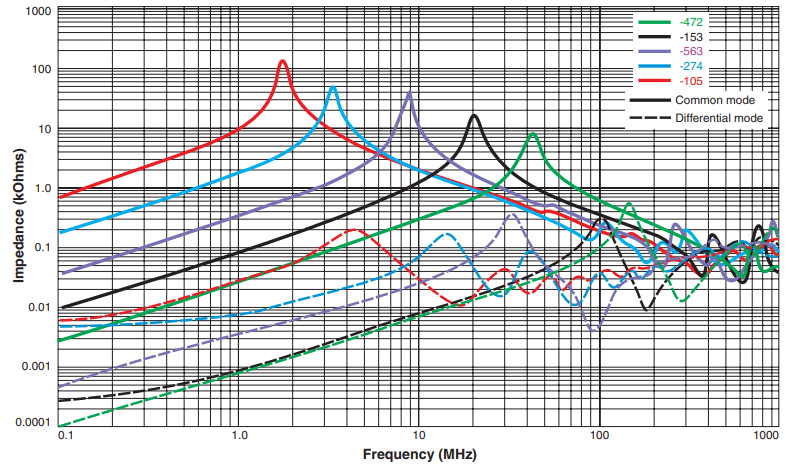

Impedance vs Frequency

Impedance vs Frequency

原理图

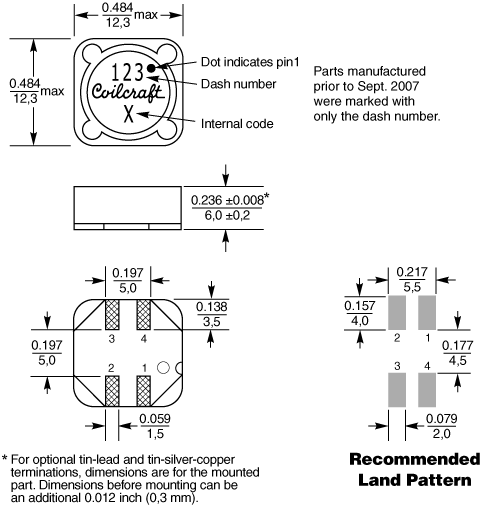

物理特性



卷装规格



Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
13" (330 mm) A B C D E W P Po P1 H T part_or_ak.gif
500 330 100 13 30,4 24,4 24 16 4 2 6,9 0,5

一般规格

核心材料:
Ferrite
重量:
2.8 – 3.2 g
包装:
500/13″ reel; Plastic tape: 24 mm wide, 0.5 mm thick, 16 mm pocket spacing, 6.9 mm pocket depth
Winding to Winding Isolation:
500 Vrms, one minute

焊接/清洗

湿气敏感度等级（MSL）:
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
焊接之前，请参阅焊接线艺元件。
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
