LPD5010 Series

Low-profile Common Mode Chokes

Coilcraft LPD5010 Series common mode chokes provide both common mode and differential mode filtering in a single miniature, low-profile device.

Low-profile miniature CM choke; measures only 4.8 mm square and 0.9 mm high
Common mode and differential mode filtering in a single device
Up to 530 MHz differential mode cutoff frequency
100 Vrms, one minute winding-to-winding isolation

Refer to Designing Common Mode Filters for design guidance.

Need parts for space, military or other critical applications?
See Coilcraft AE420PJD Series

立即购买:

零件号

查找我的元件

计数	单价
1	$1.71
250	$1.54
500	$1.28
1000	$1.06
2000	$0.96
5000	$0.87

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

M = 20%

Termination

R = Matte tin over nickel over silver

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

零件号 1	线组数	共模峰值阻抗 (kΩ)	截止频率 (MHz) 2	最小电感 (µH) 3	Irms (A) 4	DCR max (Ω) 5	隔离电压 (Vrms) 6
零件号 1	线组数	共模峰值阻抗 (kΩ)	截止频率 (MHz) 2	最小电感 (µH) 3	Irms (A) 4	DCR max (Ω) 5	隔离电压 (Vrms) 6
LPD5010-681NR_	2	0.88 @ 200 MHz	470	0.54	1.95	0.07	100
LPD5010-102MR_	2	1.43 @ 160 MHz	530	0.80	1.50	0.10	100
LPD5010-152MR_	2	2.05 @ 110 MHz	380	1.20	1.20	0.15	100
LPD5010-222MR_	2	3.03 @ 100 MHz	260	1.76	1.10	0.20	100
LPD5010-332MR_	2	4.60 @ 80.0 MHz	190	2.64	0.95	0.27	100
LPD5010-472MR_	2	6.47 @ 64.0 MHz	160	3.76	0.75	0.40	100
LPD5010-562MR_	2	7.27 @ 64.0 MHz	140	4.48	0.70	0.45	100
LPD5010-682MR_	2	8.76 @ 54.0 MHz	150	5.44	0.60	0.53	100
LPD5010-822MR_	2	10.97 @ 49.0 MHz	180	6.56	0.50	0.70	100
LPD5010-103MR_	2	12.53 @ 46.0 MHz	130	8.00	0.50	0.78	100
LPD5010-153MR_	2	18.79 @ 36.0 MHz	96.0	12.00	0.42	1.19	100
LPD5010-223MR_	2	18.52 @ 28.0 MHz	80.0	17.60	0.35	1.58	100
LPD5010-333MR_	2	26.33 @ 20.0 MHz	55.0	26.40	0.30	2.50	100
LPD5010-473MR_	2	35.62 @ 18.0 MHz	43.0	37.60	0.25	3.48	100
LPD5010-683MR_	2	48.54 @ 15.0 MHz	58.0	54.40	0.19	5.10	100
LPD5010-104MR_	2	78.14 @ 13.0 MHz	50.0	80.00	0.15	8.00	100
LPD5010-154MR_	2	116.80 @ 9.8 MHz	26.0	120.00	0.12	11.70	100
LPD5010-224MR_	2	129.40 @ 7.2 MHz	28.0	176.00	0.11	15.20	100

注释

When ordering, please specify termination and packaging codes: e.g. LPD5010-224MRC
Frequency at which the differential mode attenuation equals 3 dB
Inductance shown for each winding, measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A LCR meter or equivalent.
Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
DCR is for each winding, measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Interwinding isolation (hipot) tested for one minute.

端子:

R = Matte tin over nickel over silver
Q = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
P = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (1000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (3500 parts per full reel).

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +85°C with (40°C rise) Irms current

储存温度范围:

Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+125°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

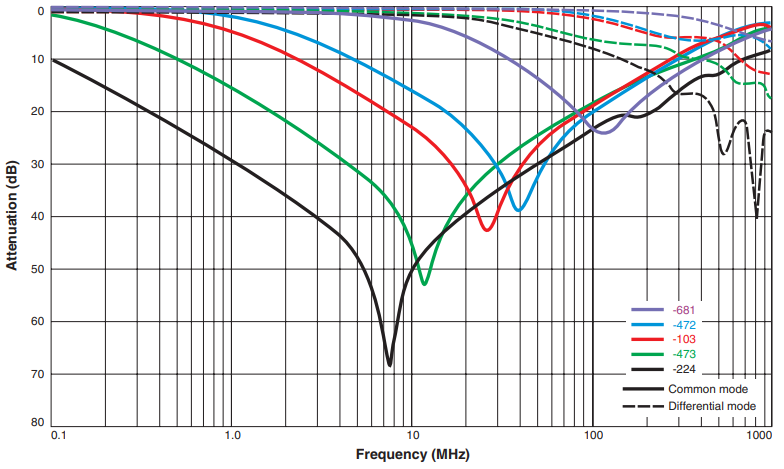

Attenuation (Ref: 50 Ohms)

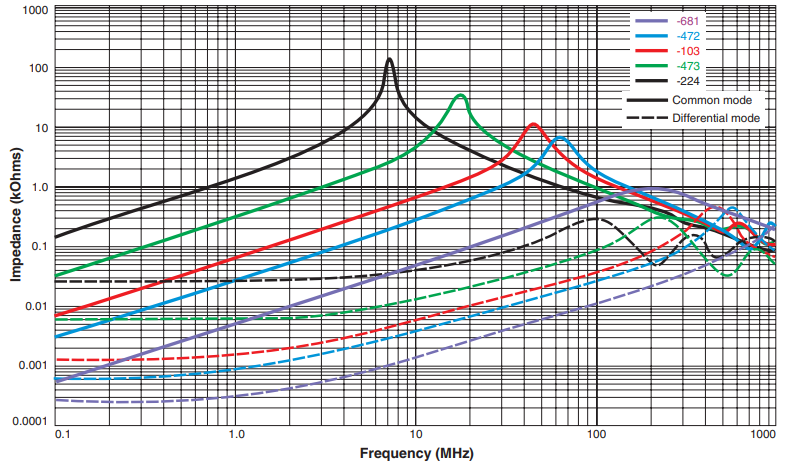

Impedance vs Frequency

原理图

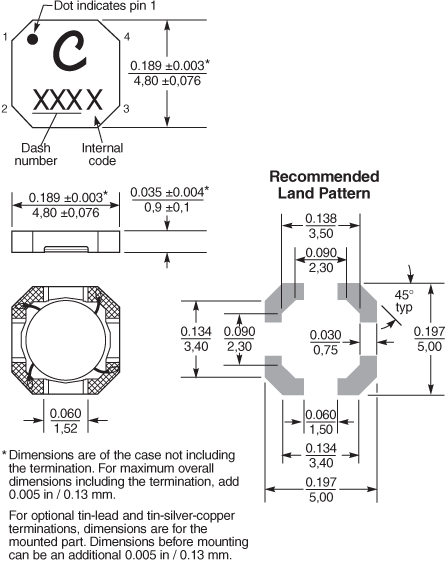

物理特性

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
1000	3500*	178/330	60/100	13	18,4	12,4	12	8	4	2	1,02	0,3

* Special order

一般规格

核心材料:

Ferrite

重量:

60 – 70 mg

Winding to Winding Isolation:

100 Vrms, one minute

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

推荐的取放吸嘴:

OD: 5 mm; ID: ≤ 2.5 mm

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
