LPD3015 Series

Low-profile Common Mode Chokes

Coilcraft LPD3015 Series common mode chokes provide both common mode and differential mode filtering in a single low-profile miniature device.

Low-profile miniature CM choke measures just 3 × 3 × 1.4 mm
Common mode and differential mode filtering in a single device
Up to 530 MHz differential mode cutoff frequency
100 Vrms, one minute winding-to-winding isolation

Refer to Designing Common Mode Filters for design guidance.

立即购买:

零件号

查找我的元件

计数	单价
1	$1.04
250	$0.84
500	$0.56
1000	$0.41
2000	$0.35
5000	$0.31

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

M = 20%

Termination

R = Matte tin over nickel over silver

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

零件号 1	线组数	共模峰值阻抗 (kΩ)	截止频率 (MHz) 2	最小电感 (µH) 3	Irms (A) 4	DCR max (Ω) 5	隔离电压 (Vrms) 6
零件号 1	线组数	共模峰值阻抗 (kΩ)	截止频率 (MHz) 2	最小电感 (µH) 3	Irms (A) 4	DCR max (Ω) 5	隔离电压 (Vrms) 6
LPD3015-391MR_	2	1.03 @ 330 MHz	540	0.31	1.45	0.071	100
LPD3015-561MR_	2	1.44 @ 240 MHz	540	0.45	1.37	0.079	100
LPD3015-102MR_	2	2.43 @ 160 MHz	330	0.80	1.08	0.129	100
LPD3015-152MR_	2	3.56 @ 130 MHz	330	1.2	0.86	0.204	100
LPD3015-182MR_	2	4.37 @ 110 MHz	280	1.4	0.78	0.273	100
LPD3015-222MR_	2	4.67 @ 100 MHz	330	1.8	0.75	0.300	100
LPD3015-332MR_	2	7.28 @ 81.0 MHz	220	2.6	0.67	0.337	100
LPD3015-472MR_	2	10.7 @ 66.0 MHz	210	3.8	0.54	0.503	100
LPD3015-682MR_	2	12.1 @ 54.0 MHz	290	5.4	0.49	0.622	100
LPD3015-103MR_	2	17.8 @ 47.0 MHz	330	8.0	0.38	1.040	100
LPD3015-153MR_	2	22.6 @ 33.0 MHz	140	12	0.32	1.420	100
LPD3015-183MR_	2	29.0 @ 31.0 MHz	94.0	14	0.31	1.550	100
LPD3015-223MR_	2	27.3 @ 24.0 MHz	88.0	18	0.28	1.890	100
LPD3015-333MR_	2	41.1 @ 21.0 MHz	59.0	26	0.23	2.840	100
LPD3015-473MR_	2	48.7 @ 18.0 MHz	50.0	38	0.19	4.030	100
LPD3015-683MR_	2	64.5 @ 14.0 MHz	48.0	54	0.16	6.110	100
LPD3015-104MR_	2	94.7 @ 13.0 MHz	47.0	80	0.13	8.540	100
LPD3015-124MR_	2	116 @ 11.0 MHz	37.0	96	0.13	9.230	100
LPD3015-154MR_	2	135 @ 9.3 MHz	27.0	120	0.11	12.400	100
LPD3015-184MR_	2	170 @ 8.0 MHz	39.0	144	0.10	15.320	100
LPD3015-224MR_	2	155 @ 7.1 MHz	27.0	176	0.09	18.560	100
LPD3015-334MR_	2	222 @ 5.9 MHz	16.0	264	0.07	27.700	100

注释

When ordering, please specify termination and packaging codes: e.g. LPD3015-334MRC
Frequency at which the differential mode attenuation equals 3 dB
Inductance shown for each winding, measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A LCR meter or equivalent.
Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
DCR is for each winding, measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Interwinding isolation (hipot) tested for one minute.

端子:

R = Matte tin over nickel over silver
Q = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
P = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (1000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (3500 parts per full reel).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +85°C with (40°C rise) Irms current

储存温度范围:

Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+125°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

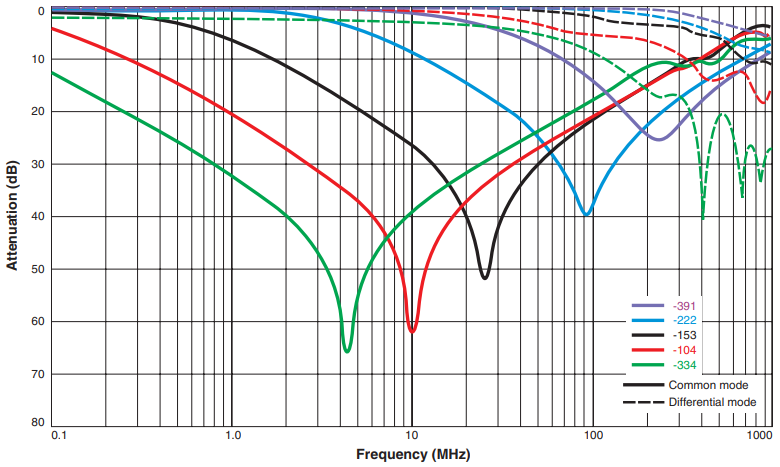

Attenuation (Ref: 50 Ohms)

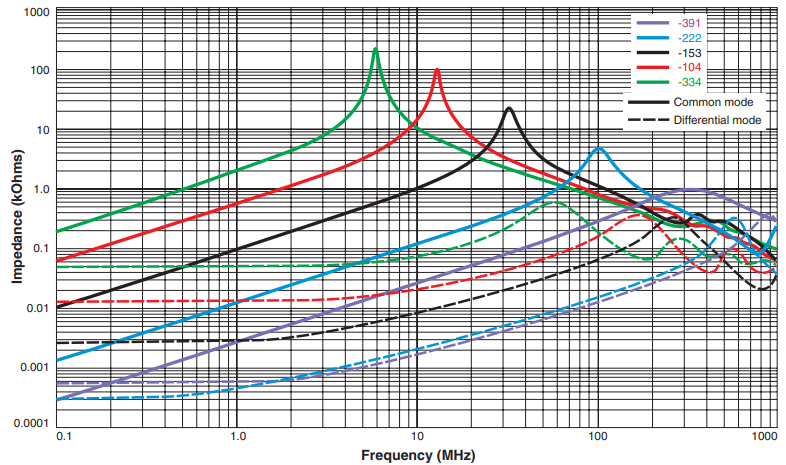

Impedance vs Frequency

原理图

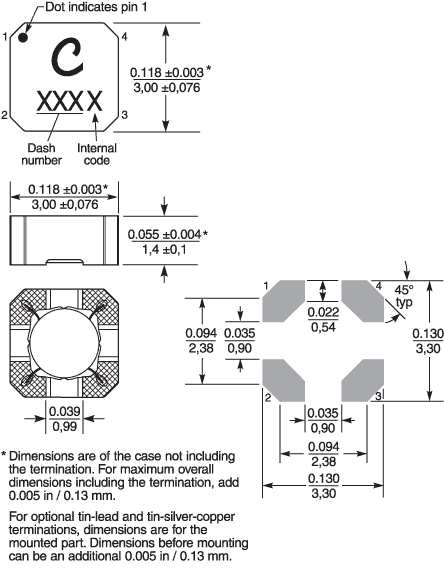

物理特性

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
1000	3500*	178/330	60/100	13	18,4	12,4	12	8	4	2	1,65	0,26

* Special order

一般规格

核心材料:

Ferrite

重量:

45 – 52 mg

包装:

1000/7″ reel; 3500/13″ reel Plastic tape: 12 mm wide, 0.26 mm thick, 8 mm pocket spacing, 1.65 mm pocket depth

Winding to Winding Isolation:

100 Vrms, one minute

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

推荐的取放吸嘴:

OD: 3 mm; ID: ≤ 1.5 mm

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
