Toroidal Common Mode Line Chokes

Standard & High L Series

Available in two series: standard inductance and high inductance
Single layer windings provide highest common mode impedance over the widest frequency range
Ideal for switching power supplies in the 100 – 300 kHz range of switching frequencies
UL1446 Class B (130°C) Insulation System (UL File E83628)
Creepage and clearance = 3.2 mm
Refer to Designing Common Mode Filters for design guidance.
RoHS-compliant. Tin-silver over copper terminations.
Samples of several values are available in Coilcraft Designer's Kit P402

立即购买:

零件号

查找我的元件

计数	单价
1	$5.88
250	$5.04
500	$4.39
1000	$3.41
2500	$2.92
5000	$2.70

对于大批量采购或非库存产品，点击这里请求报价。

Termination

L = Tin-silver

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
P402	8 (1 - 2 of each)	$100.00

规格

Electrical specifications at 25°C.

Standard Series

零件号	线组数	最小电感 (mH)	最大漏电感 (µH)	Irms (A)	DCR max (Ω) 1	隔离电压 (Vrms) 2
零件号	线组数	最小电感 (mH)	最大漏电感 (µH)	Irms (A)	DCR max (Ω) 1	隔离电压 (Vrms) 2
P3213-AL	2	3.5	62	1.3	0.150	1250
P3215-AL	2	1.0	22	3.2	0.036	1250
P3214-AL	2	1.7	32	2.0	0.065	1250
P3216-AL	2	0.75	19	5.0	0.022	1250
P3217-AL	2	0.43	10	8.1	0.012	1250
P3218-AL	2	0.28	8	13.0	0.008	1250

High Inductance Series

零件号	线组数	最小电感 (mH)	最大漏电感 (µH)	Irms (A)	DCR max (Ω) 1	隔离电压 (Vrms) 2
零件号	线组数	最小电感 (mH)	最大漏电感 (µH)	Irms (A)	DCR max (Ω) 1	隔离电压 (Vrms) 2
P3219-AL	2	11	165	1.3	0.290	1250
P3220-AL	2	7.0	100	2.0	0.150	1250
P3221-AL	2	3.7	60	3.2	0.080	1250
P3222-AL	2	2.2	35	5.0	0.040	1250
P3223-AL	2	1.1	20	8.1	0.020	1250
P3224-AL	2	0.58	10	13.0	0.010	1250

注释

DCR measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
1250 Vrms, one minute isolation between windings.

All parts have #16 AWG solder coated copper wire leads except P3217-A and P3223-A, which has #18 AWG leads.

环境

环境:

符合RoHS

环境温度范围:

−40°C to +85°C

储存温度范围:

Component: −40°C to +85°C
Packaging trays: −40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

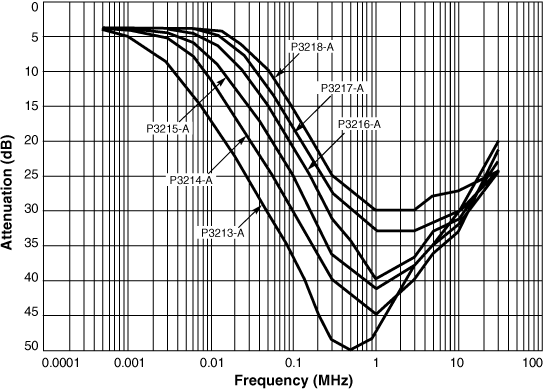

Common Mode Attenuation

Standard Series

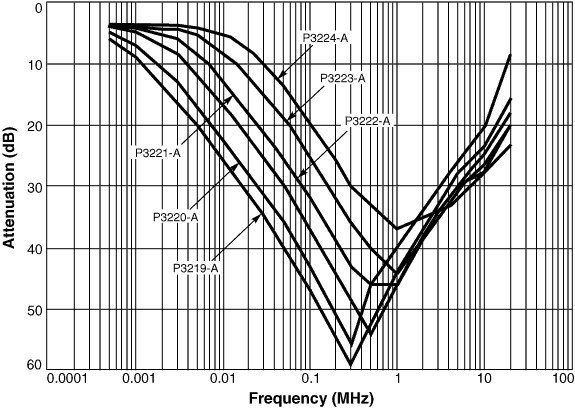

Common Mode Attenuation

High Inductance

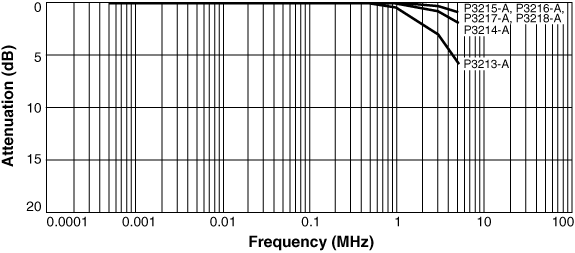

Differential Mode Attenuation

Standard Series

Differential Mode Insertion Loss

High Inductance

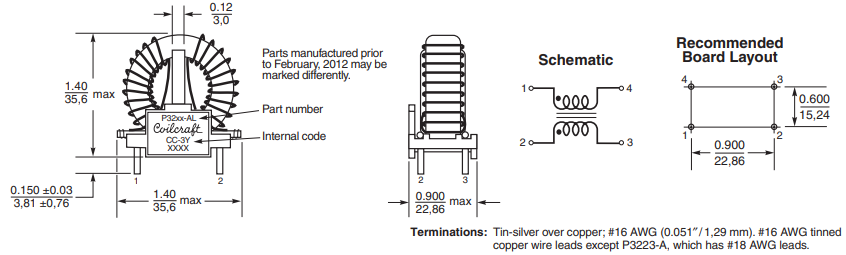

物理特性
