CE1759-AL Common Mode Choke

for Power Line Applications

Low profile toroid construction
Surface mount, magnetically shielded package
Up to 5.65 kOhms impedance at 1.8 MHz
1000 Vrms isolation (hipot) between windings
Refer to Designing Common Mode Filters for design guidance.
RoHS-compliant. 260°C compatible. Tin-silver-copper over copper terminations.

立即购买:

计数	单价
1	$6.30
120	$6.08
240	$5.18
600	$3.12
1200	$2.42
2500	$2.08
5000	$1.92

对于大批量采购或非库存产品，点击这里请求报价。

Termination

L = Tin-silver-copper

Packaging

D = 13" machine-ready reel

. 现货，可今天发货.

索取样品:

规格

Electrical specifications at 25°C.

零件号 1	线组数	共模峰值阻抗 (kΩ)	最小电感 (mH) 2	Irms (A) 3	DCR max (mΩ) 4	隔离电压 (Vrms) 5
零件号 1	线组数	共模峰值阻抗 (kΩ)	最小电感 (mH) 2	Irms (A) 3	DCR max (mΩ) 4	隔离电压 (Vrms) 5
CE1759-AL	2	4.82 @ 0.99 MHz	0.52	6.0	14.0	1000

注释

When ordering, please specify packaging code: e.g. CE1759-ALD
Inductance shown for each winding, measured at 10 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4263B LCR meter or equivalent.
Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
DCR is specified per winding at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Isolation (hipot) measured for two seconds

端子:

RoHS compliant tin-silver-copper over copper.

包装:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (600 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +85°C with Irms current

储存温度范围:

Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+125°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

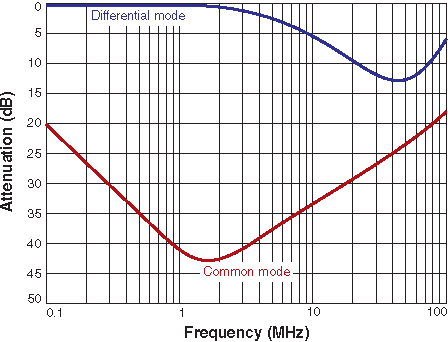

Attenuation (Ref: 50 Ohms)

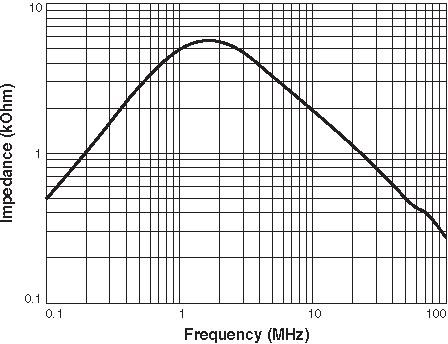

Impedance Curve

原理图

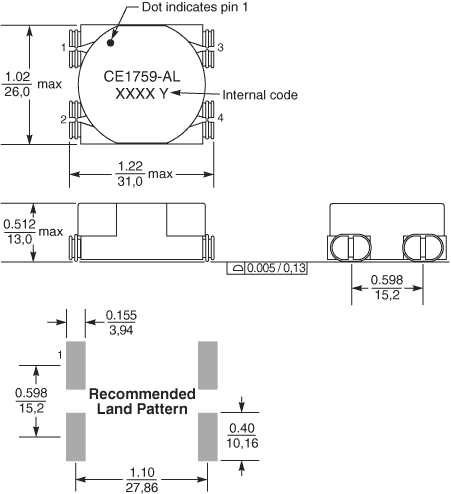

物理特性

卷装规格

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
120	330	100	13	52,4	44,4	44	32	4	2	12,4	0,5

一般规格

核心材料:

Ferrite

重量:

12.9 g

包装:

120/13″ reel Plastic tape: 44 mm wide, 0.5 mm thick, 32 mm pocket spacing, 12.4 mm pocket depth

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.

CE1759-AL Common Mode Choke

for Power Line Applications

规格

端子:

包装:

性能曲线

Attenuation (Ref: 50 Ohms)

Impedance Curve

原理图

物理特性

卷装规格

一般规格

焊接/清洗
