BU Series

Power Line Common Mode Chokes

Significant noise attenuation over a wide range of frequencies
Compact size and light weight
Independent windings allow use in high-voltage signal lines
1000 Vrms, one minute isolation (hipot) between windings
Refer to Designing Common Mode Filters for design guidance.
RoHS-compliant. Tin-silver over copper terminations.

立即购买:

零件号

查找我的元件

计数	单价
1	$1.44
100	$1.23
400	$1.08
1200	$0.85
2400	$0.73
5000	$0.65

对于大批量采购或非库存产品，点击这里请求报价。

Termination

L = Tin-silver

Packaging

B = Less than full reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

BU9S, BU9HS

零件号	线组数	共模峰值阻抗 (kΩ)	最小电感 (mH) 1	Irms (A)	DCR max (Ω) 2	隔离电压 (Vrms) 3
零件号	线组数	共模峰值阻抗 (kΩ)	最小电感 (mH) 1	Irms (A)	DCR max (Ω) 2	隔离电压 (Vrms) 3
BU9S-153R15BL	2	106 @ 200 kHz	15	0.15	5.0	1000
BU9S-7020R3BL	2	59.8 @ 370 kHz	7.0	0.30	2.5	1000
BU9HS-153R15BL	2	147 @ 220 kHz	15	0.15	5.0	1000
BU9HS-7020R3BL	2	61.9 @ 380 kHz	7.0	0.30	2.5	1000

BU9, BU9H

零件号	线组数	共模峰值阻抗 (kΩ)	最小电感 (mH) 1	Irms (A)	DCR max (Ω) 2	隔离电压 (Vrms) 3
零件号	线组数	共模峰值阻抗 (kΩ)	最小电感 (mH) 1	Irms (A)	DCR max (Ω) 2	隔离电压 (Vrms) 3
BU9-103R25BL	2	124 @ 250 kHz	10	0.25	3.5	1000
BU9-2820R5BL	2	25.1 @ 660 kHz	2.8	0.50	1.0	1000
BU9-1320R7BL	2	17.3 @ 910 kHz	1.3	0.70	0.50	1000
BU9-6011R0BL	2	5.43 @ 2100 kHz	0.60	1.0	0.20	1000
BU9-2011R6BL	2	3.62 @ 4000 kHz	0.20	1.6	0.10	1000
BU9H-103R25BL	2	148 @ 230 kHz	10	0.25	3.5	1000
BU9H-2820R5BL	2	29.8 @ 600 kHz	2.8	0.50	1.0	1000
BU9H-1320R7BL	2	12.3 @ 980 kHz	1.3	0.70	0.50	1000
BU9H-6011R0BL	2	5.47 @ 2000 kHz	0.60	1.0	0.20	1000
BU9H-2011R6BL	2	4.43 @ 2700 kHz	0.20	1.6	0.10	1000

BU10

零件号	线组数	共模峰值阻抗 (kΩ)	最小电感 (mH) 1	Irms (A)	DCR max (Ω) 2	隔离电压 (Vrms) 3
零件号	线组数	共模峰值阻抗 (kΩ)	最小电感 (mH) 1	Irms (A)	DCR max (Ω) 2	隔离电压 (Vrms) 3
BU10-1811R2BL	2	5.27 @ 1200 kHz	0.18	1.2	0.20	1000
BU10-1311R6BL	2	3.60 @ 1200 kHz	0.13	1.6	0.12	1000
BU10-1012R2BL	2	1.88 @ 1500 kHz	0.100	2.2	0.080	1000
BU10-6003R0BL	2	1.15 @ 2100 kHz	0.060	3.0	0.040	1000

BU15

零件号	线组数	共模峰值阻抗 (kΩ)	最小电感 (mH) 1	Irms (A)	DCR max (Ω) 2	隔离电压 (Vrms) 3
零件号	线组数	共模峰值阻抗 (kΩ)	最小电感 (mH) 1	Irms (A)	DCR max (Ω) 2	隔离电压 (Vrms) 3
BU15-4530R4BL	2	399 @ 130 kHz	45	0.40	3.0	1000
BU15-1430R7BL	2	70.6 @ 240 kHz	14	0.70	1.0	1000
BU15-7521R0BL	2	43.1 @ 340 kHz	7.5	1.0	0.60	1000
BU15-4421R3BL	2	41.1 @ 510 kHz	4.4	1.3	0.30	1000
BU15-2721R6BL	2	32.2 @ 620 kHz	2.7	1.6	0.20	1000

BU16

零件号	线组数	共模峰值阻抗 (kΩ)	最小电感 (mH) 1	Irms (A)	DCR max (Ω) 2	隔离电压 (Vrms) 3
零件号	线组数	共模峰值阻抗 (kΩ)	最小电感 (mH) 1	Irms (A)	DCR max (Ω) 2	隔离电压 (Vrms) 3
BU16-4530R5BL	2	270 @ 130 kHz	45	0.50	2.3	1000
BU16-2530R7BL	2	208 @ 190 kHz	25	0.70	1.3	1000
BU16-1031R0BL	2	57.1 @ 310 kHz	10	1.0	0.50	1000
BU16-4021R5BL	2	26.3 @ 470 kHz	4.0	1.5	0.30	1000
BU16-2022R0BL	2	14.5 @ 720 kHz	2.0	2.0	0.20	1000

注释

Inductance tested at 1 kHz, 1 Vrms, and it is measured on Agilent/HP 4263B LCR meter or equivalent.
DCR is per winding measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Interwinding isolation (hipot) tested for one minute.

端子:

RoHS compliant tin-silver over copper. Other terminations available at additional cost.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +125°C

储存温度范围:

Component: –40°C to +125°C
Tray packaging: –40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

物理特性

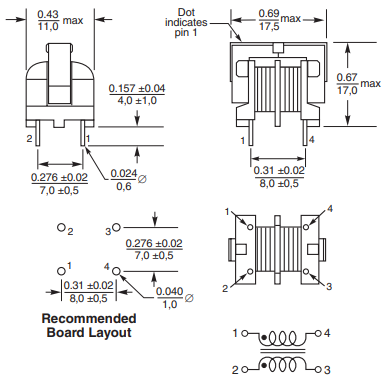

BU9S

BU9HS

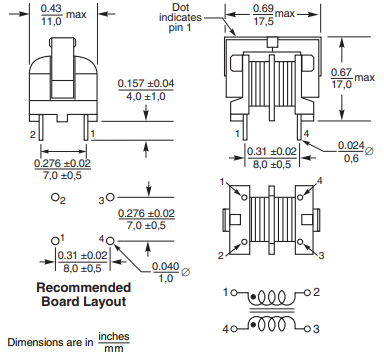

BU9

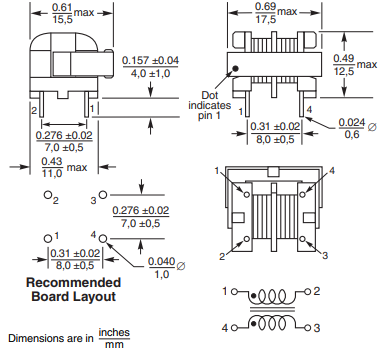

BU9H

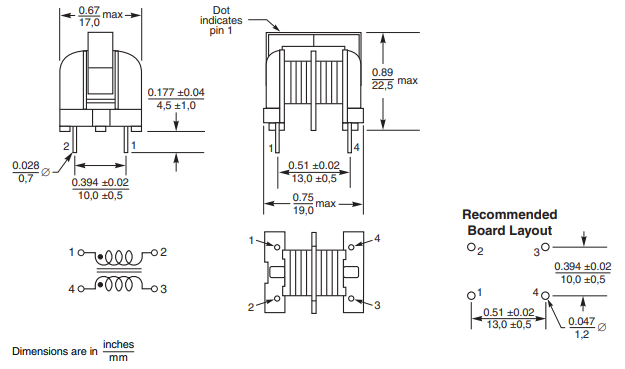

BU10

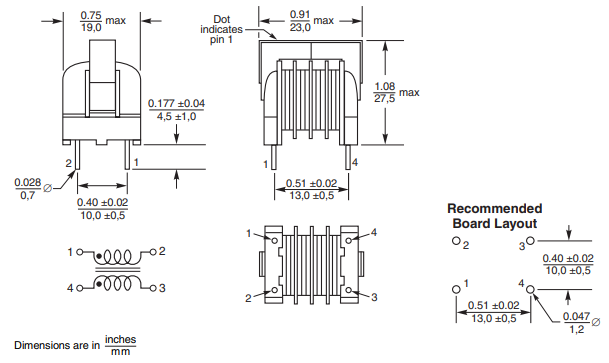

BU15

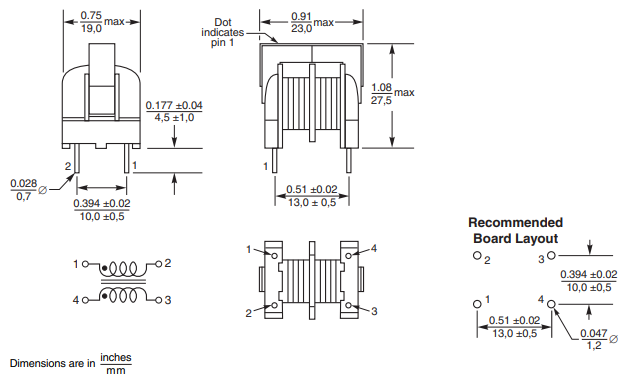

BU16

一般规格

核心材料:

Ferrite

重量:

BU9: 3.1 – 4.1 g; BU9H: 3.1 – 4.1 g; BU9HS: 3.1 – 3.8 g; BU9S: 3.1 – 3.8 g; BU10: 6.3 – 6.9 g; BU15: 14.6 – 16.1 g; BU16: 15.1 – 18.0 g

包装:

BU9/ BU9H/ BU9HS/ BU9S/ BU10: 100 per tray; BU15/ BU16: 80 per tray

清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
