PDMC

Combination Filter Chokes

Combined common and differential mode filtering in a single component
Provide differential filtering at higher frequencies (>1000 Ohms @ 50 MHz)
2000 Vrms, one minute isolation (hipot) between windings
AEC-Q200 Grade 2 (–40°C to +105°C)
Refer to Designing Common Mode Filters for design guidance.
RoHS-compliant. Tin-silver over tin over copper terminations.

立即购买:

零件号

查找我的元件

计数	单价
1	$8.51
25	$7.45
100	$6.51
250	$5.70
500	$4.99

对于大批量采购或非库存产品，点击这里请求报价。

Termination

L = Tin-silver (96.5/3.5) over copper

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

零件号	线组数	共模峰值阻抗 (kΩ)	电感 (µH) 1 (公差: ±30%)	最大漏电感 (µH) 2	Irms (A) 3	DCR max (mΩ) 4	隔离电压 (Vrms) 5
零件号	线组数	共模峰值阻抗 (kΩ)	电感 (µH) 1 (公差: ±30%)	最大漏电感 (µH) 2	Irms (A) 3	DCR max (mΩ) 4	隔离电压 (Vrms) 5
PDMC-T124NL	2	815 @ 1.5 MHz	120	5.4	20.0	1.45	2000
PDMC-T454NL	2	3570 @ 1.5 MHz	450	22	8.3	8.2	2000

注释

Inductance shown for each winding, measured at 10 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4263B LCR meter or equivalent.
Leakage inductance is measured from pin 1 to pin 2 with pins 4 and 3 shorted.
Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
DCR is for each winding.
2000 Vrms, one minute isolation (hipot) between windings.

端子:

L = RoHS compliant tin-silver (96.5/3.5) over copper
T = RoHS tin-silver-copper (95.5/4/0.5). (Special order, added cost)
S = non-RoHS tin-lead (63/37). (Special order, added cost)

包装:

25 per tray

环境

环境:

符合RoHS

环境温度范围:

–40°C to +105°C

储存温度范围:

Component: –40°C to +145°C
Tray packaging: –40°C to +80°C

最高元件温度:

+145°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

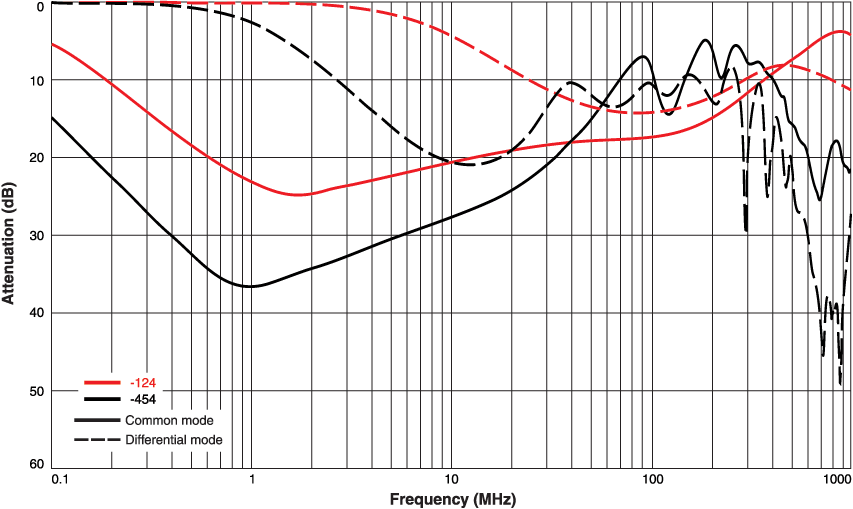

Typical Attenuation (Ref: 50 Ohms)

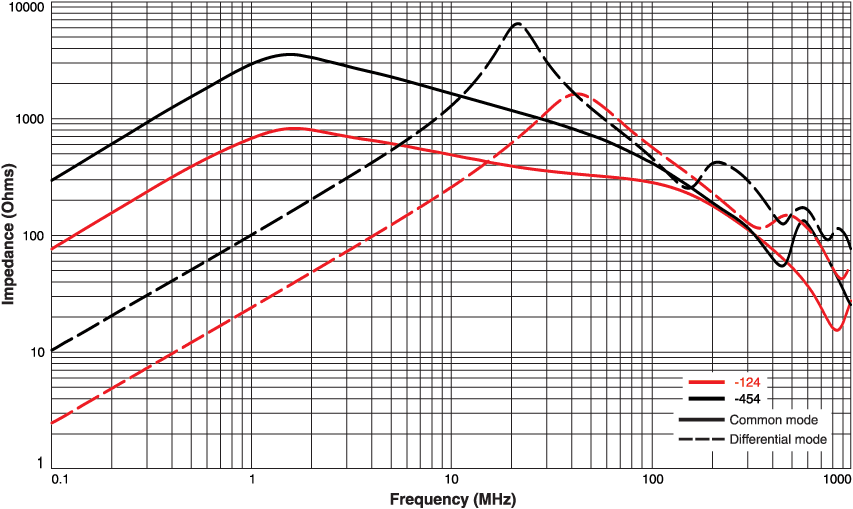

Typical Impedance vs Frequency

原理图

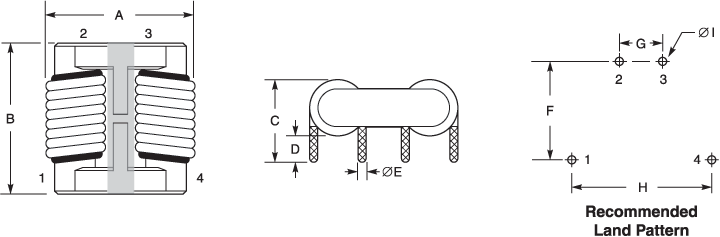

物理特性

Part Code	A		B		C		D		E	F	G	H	I	Units
Part Code	nom	max	nom	max	nom	max	nom	max	nom	nom	nom	nom	nom	Units
T124	1.000	1.063	0.960	0.984	0.550	0.630	0.177	0.197	0.071	0.570	0.236	0.976	0.090	in
T124	25.40	27.00	24.38	25.00	14.00	16.00	4.50	5.00	1.80	14.50	6.00	24.80	2.30	mm
T454	1.000	1.043	0.960	0.984	0.550	0.630	0.177	0.197	0.035	0.570	0.276	0.937	0.051	in
T454	25.40	26.50	24.38	25.00	14.00	16.00	4.50	5.00	0.900	14.50	7.00	23.80	1.30	mm

一般规格

核心材料:

Ferrite

重量:

PDMC-T124: 21.53 g, PDMC-T454: 16.25 g

包装:

25 per tray

清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
