Combination Line Filter Choke

Combines common and differential mode filtering in a single component
Can eliminate two extra filter chokes compared to standard common mode choke
Special windings and materials provides better filtering performance than common mode chokes or a single winding inductor alone
Refer to Designing Common Mode Filters for design guidance.
RoHS-compliant. Tin-silver over tin over copper terminations.

立即购买:

零件号

查找我的元件

计数	单价
1	$11.93
250	$10.33
500	$9.03
1000	$7.65

对于大批量采购或非库存产品，点击这里请求报价。

Termination

L = Tin-silver

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

零件号	线组数	共模峰值阻抗 (kΩ)	典型电感 1		Irms (A) 2	DCR max (Ω) 3	隔离电压 (Vrms) 4
零件号	线组数	共模峰值阻抗 (kΩ)	共模 (mH)	差模 (µH)	Irms (A) 2	DCR max (Ω) 3	隔离电压 (Vrms) 4
P3717-AL	2	597.7 @ 0.19 MHz	25	1000	3.0	0.30	1500
Q4007-AL	2	301.9 @ 0.65 MHz	4.5	150	5.0	0.06	1500
Q4018-AL	2	43.3 @ 1.2 MHz	1.5	35	10.0	0.02	1500

注释

Inductance measured at 15.75 kHz, 1.0 Vrms, 0 Adc.
Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
Isolation (hipot) measured for one minute.

环境

环境:

符合RoHS

环境温度范围:

–40°C to +85°C

储存温度范围:

Component: –40°C to +85°C
Tray packaging: –40°C to +80°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

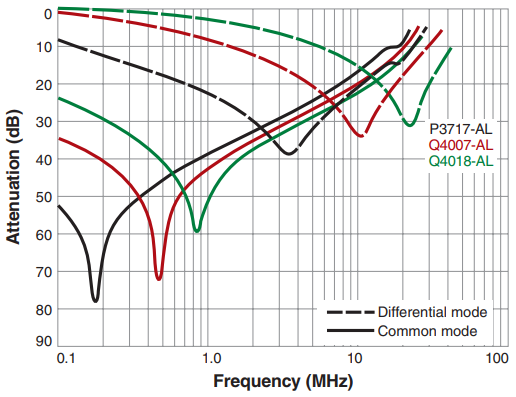

Attenuation (Ref: 50 Ohms)

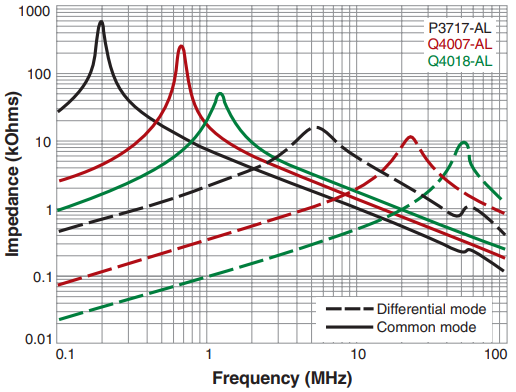

Typical Impedance

原理图

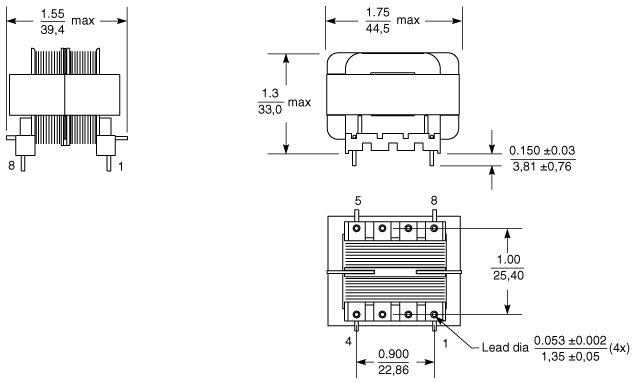

物理特性

一般规格

核心材料:

Ferrite

重量:

100 – 113 g

包装:

30 per tray (after 5/09); 16 per tray (prior to 6/09)

清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
