0805USB Series

Common Mode Choke

Our 0805USB Series was designed for common mode noise suppression in high-speed differential signal lines (USB2.0, IEEE1394, and LVDS) and provide up to 3.4 GHz differential mode 3 dB cutoff frequency. They provide up to 2 kOhms common mode peak impedance and more than 30 dB common mode noise attenuation.

For common mode noise suppression in high speed differential signal lines: USB2.0, IEEE1394, LVDS, etc.
For USB 3.x applications, consider our 0603USB, 0805USBF or 0805USBN series
Up to 3.4 GHz differential mode 3 dB cutoff frequency
Up to 2 kOhms common mode peak impedance and more than 30 dB common mode noise attenuation

Refer to Designing Common Mode Filters for design guidance.

Need parts for space, military or other critical applications?
See Coilcraft AR336FRA Series | See Coilcraft CP336FRA Series

立即购买:

零件号

查找我的元件

计数	单价
1	$0.69
200	$0.58
500	$0.41
1000	$0.32
2000	$0.28
4000	$0.25

对于大批量采购或非库存产品，点击这里请求报价。

Tolerance

M = 20%

Termination

L = Gold over nickel over silver-palladium-glass frit

Packaging

C = 7" machine-ready reel

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

设计套件:

套件	电感值	价格
C470	39 (10 of each)	$110.00

规格

Electrical specifications at 25°C.

零件号 1	线组数	共模峰值阻抗 (kΩ)	截止频率 (GHz) 2	共模典型衰减 (dB)			最小电感 (nH) 3	Irms (mA) 4	DCR max (Ω) 5	隔离电压 (Vrms) 6
零件号 1	线组数	共模峰值阻抗 (kΩ)	截止频率 (GHz) 2	10 MHz	100 MHz	500 MHz	最小电感 (nH) 3	Irms (mA) 4	DCR max (Ω) 5	隔离电压 (Vrms) 6
0805USB-421ML_	2	0.22 @ 3.0 GHz	3.5	1.1	2.3	8.4	23	500	0.12	250
0805USB-901ML_	2	0.29 @ 3.0 GHz	2.5	1.4	4.2	16.9	47	500	0.17	250
0805USB-172ML_	2	0.64 @ 1.8 GHz	1.8	2.3	6.7	22.0	84	500	0.25	250
0805USB-262ML_	2	0.82 @ 1.8 GHz	1.5	3.0	8.6	27.8	147	500	0.26	250
0805USB-372ML_	2	1.06 @ 1.4 GHz	0.82	4.5	11.9	34.3	189	500	0.32	250
0805USB-502ML_	2	1.42 @ 1.1 GHz	0.70	4.9	14.5	31.3	273	500	0.37	250
0805USB-672ML_	2	1.75 @ 0.93 GHz	0.46	8.4	16.6	30.0	322	500	0.45	250
0805USB-902ML_	2	2.06 @ 0.81 GHz	0.47	8.7	18.7	30.5	413	500	0.65	250

注释

When ordering, please specify packaging code: e.g. 0805USB-902MLC
Frequency at which the differential mode attenuation equals 3 dB
Inductance measured at 100 MHz, with windings connected in parallel, using an Agilent/HP 4286A impedance analyzer and a Coilcraft SMD-A fixture.
Irms: Current per winding that causes a 20°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
DCR is specified per winding at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
250 Vrms, 1 minute interwinding isolation (hipot).

端子:

Gold over nickel over silver-palladium-glass frit.

包装:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (2000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to C.
D = 13″ machine-ready reel. EIA-481 embossed plastic tape (7500 parts per full reel).

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +85°C with Irms current

储存温度范围:

Component: –40°C to +105°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

105°C (ambient + temp rise)

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

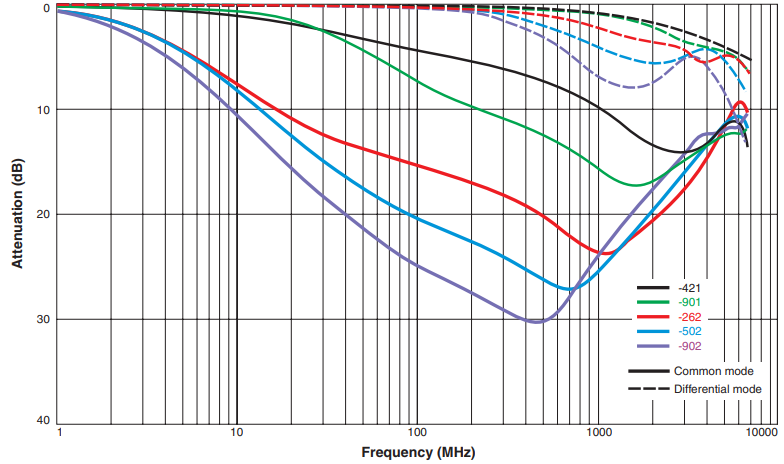

Attenuation (Ref: 50 Ohms)

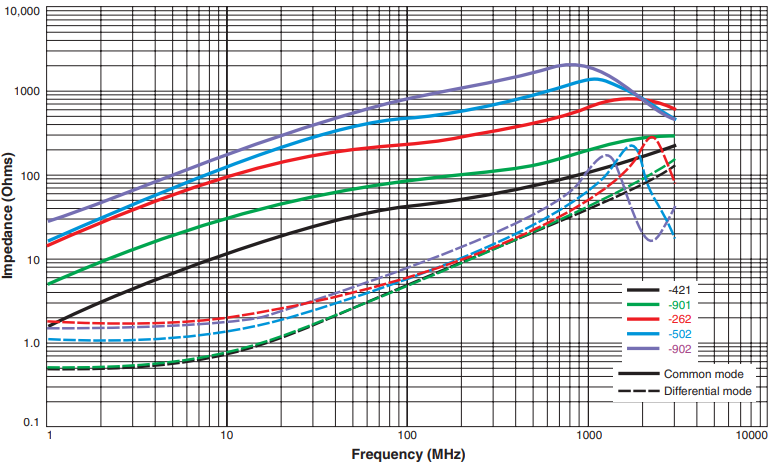

Impedance vs Frequency

原理图

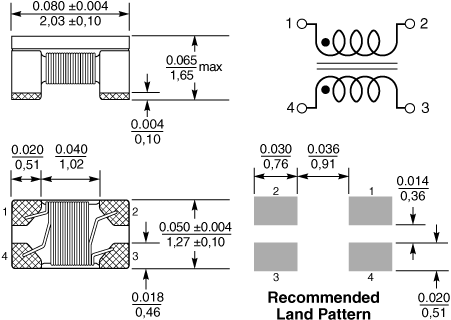

物理特性

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
2000	7500*	178/330	60/100	13	14,4	8,4	8	4	4	2	1,5	0,23

*Special order

一般规格

核心材料:

Ferrite

重量:

14.9 – 15.2 mg

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
