ZB1201-CE

Name: ZB1201-CEC
Brand: Coilcraft
SKU: ZB1201-CEC
Price: 9.64 USD
Availability: InStock

ZB1201-CEC

부품에 대한 추가 정보 및 사양.

시리즈로 이동

지금 구매:

개수	단품 가격
1	$24.49
350	$16.06
700	$9.64
1400	$7.50
2800	$6.43
4900	$5.90

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Packaging

C = 7" machine-ready reel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

사양

Electrical specifications at 25°C. Measurements are referenced to 50 Ohms.

SMT Coupler for DOCSIS 3.1 and 4.0

부품 번호 1 (Hover for schematics)	Coupling ratio (dB)	권선당 최소 L (µH) 2		DCR max (mΩ) 3		삽입 손실 (db)	대역폭 (MHz)	Input power max (W)
부품 번호 1 (Hover for schematics)	Coupling ratio (dB)	Pins 1-6, Pins 3-4	Pins 2-4, Pins 2-6	Pins 1-6, Pins 3-4	Pins 2-4, Pins 2-6	삽입 손실 (db)	대역폭 (MHz)	Input power max (W)
ZB1201-CE_	23	0.012	2.7	23	145	0.3	1.2 — 2500	1.5

메모

When ordering, please specify packaging code: e.g. ZB1201-CEC
Inductance measured per winding (ZB1200, pins 1-6, 1-4, 3-6) at 100 kHz, 0.1 V, 0 Adc on an Agilent/HP 4192 or equivalent.
DCR measured at 25°C on a micro-ohmmeter. DCR measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.

종단 처리:

E = RoHS compliant tin-silver-copper over silver-platinum-glass frit.
S = non-RoHS tin-lead (63/37). (Special order, added cost)

패키지:

C = 7″ machine-ready reel. EIA-481 embossed plastic tape (700 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13″ machine-ready reel. EIA-481 embossed plastic tape (2500 parts per full reel). Factory order only, not stocked.

환경

환경:

RoHS 준수 , 할로겐 프리

주변 온도 범위:

–40°C to +125°C

보관 온도 범위:

Component: –40°C to +140°C
Tape and reel packaging: –40°C to +80°C

최고 부품 온도:

+140°C

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

성능 곡선

ZB1201 Coupling (Pin 1 - 3)

ZB1201 Return loss: Coupling (Pin 1)

ZB1201 Return loss: Input (Pin 1)

ZB1201 Isolation (Pin 1 - 4)

ZB1201 Main line loss (Pin 1 - 6)

ZB1201 Return loss: Output (Pin 6)

회로도

물리적 특성

ZB1200

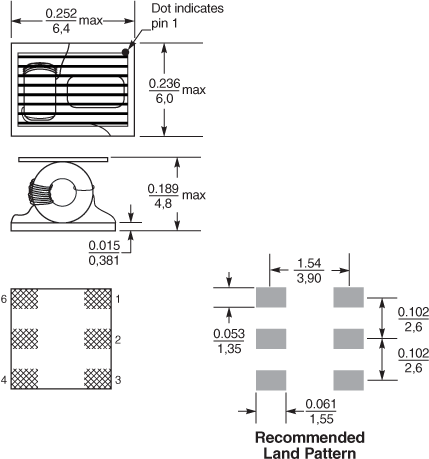

ZB1201

테이프 및 릴 사양

	Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
Part Number	7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T	Orientation
ZB1200	750	2500*	178/330	60/100	13	18,4	12,4	12	8	4	2	0,35	0,4
ZB1201	250	1000*	178/330	60/100	13	22,4	16,4	16	12	4	2	5,0	0,35

* Special order

일반 사양

코어 소재:

Ferrite

중량:

ZB1200 0.106 g, ZB1201 0.189 g

패키지:

ZB1200 700/7″ reel; 2500/13″ reel Plastic tape: 12 mm wide, 0.40 mm thick, 8 mm pocket spacing, 3.1 mm pocket depth
ZB1201 250/7″ reel; 1000/13″ reel Plastic tape: 16 mm wide, 0.35 mm thick, 12 mm pocket spacing, 5.0 mm pocket depth

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
