3D Model Datasheet

Flyback Transformers

for TI LM5072 PD Interface

Developed for Texas Instruments LM5072 PD Interface for 24 Watt PoE applications
Specified by Texas Instruments for its POE+PHYTEREV-I/-E eval board
Five different outputs to match a variety of applications
Coilcraft's DA2257-AL, DA2383-AL and FA2519-AL are also specified for LM5072

지금 구매:

부품 번호

내 부품 찾기

개수	단품 가격
1	$4.92
175	$4.44
700	$3.76
1400	$3.14
2800	$2.84
5000	$2.58

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Packaging

D = 13" machine-ready reel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

부품 번호

내 부품 찾기

통상적인 적용 분야

Texas Instruments LM5072와(과) 호환

부품 번호	입력 전압	출력 1		전력	FSW
부품 번호	입력 전압	Sec	Aux	전력	FSW
FA2677-AL_	18 V — 57 V	3.3 V , 7.5 A	11 V , 0.02 A	25 W	250 kHz
FA2898-AL_	18 V — 57 V	5 V , 5 A	11 V , 0.02 A	25 W	250 kHz
FA2899-AL_	18 V — 57 V	9 V , 2.8 A	11 V , 0.02 A	25 W	250 kHz
FA2900-AL_	18 V — 57 V	12 V , 2.1 A	11 V , 0.02 A	25 W	250 kHz
FA2901-AL_	18 V — 57 V	15 V , 1.7 A	11 V , 0.02 A	25 W	250 kHz

사양

Electrical specifications at 25°C.

부품 번호 2 (Hover for schematics)	인덕턴스 @ 0A (µH) 3 (허용 오차: ±10%)	인덕턴스 최소 @ 2.9 A (µH)	DCR max (mΩ) 4			누설 인덕턴스 최대 (µH) 5	권수비 6	절연 전압 (Vrms) 7
부품 번호 2 (Hover for schematics)	인덕턴스 @ 0A (µH) 3 (허용 오차: ±10%)	인덕턴스 최소 @ 2.9 A (µH)	Pri	Sec	Aux	누설 인덕턴스 최대 (µH) 5	Pri : Sec : Aux	절연 전압 (Vrms) 7
FA2677-AL_	50.0	40.8	26.0	2.6	328	2.200	1 : 0.12 : 0.41	1500
FA2898-AL_	50.0	40.8	26.0	4.0	315	1.050	1 : 0.18 : 0.41	1500
FA2899-AL_	50.0	40.8	26.0	13.0	315	0.473	1 : 0.35 : 0.41	1500
FA2900-AL_	50.0	40.8	26.0	20.0	315	0.409	1 : 0.47 : 0.41	1500
FA2901-AL_	50.0	40.8	26.0	37.0	305	0.381	1 : 0.59 : 0.41	1500

메모

Output is with the secondary windings connected in parallel.
When ordering, please specify packaging code: e.g. FA2677-ALD
Inductance is for the primary, measured at 250 kHz, 0.7 Vrms, 0 Adc.
DCR for the primary and the secondary is with windings connected in parallel.
Leakage inductance measured on the primary windings with all secondary pins shorted.
Turns ratios are with the primary windings and the secondary windings connected in parallel.
1500 Vrms isolation from primary and auxiliary to secondary.

종단 처리:

RoHS-compliant. 260°C compatible. Tin-silver over tin over nickel over phos bronze terminations. Other terminations available at additional cost.

패키지:

D = 13″ machine ready reel. EIA-481 embossed plastic tape (175 per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

환경

환경:

RoHS 준수

주변 온도 범위:

–40°C to +125°C

보관 온도 범위:

Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

회로도

Primary windings and secondary windings to
be connected in parallel on the PC board.

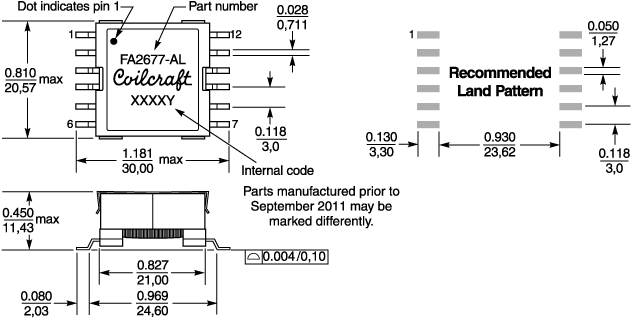

물리적 특성

테이프 및 릴 사양

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
175	330	100	13	50,4	44,4	44	32	4	2	11,9	0,4

일반 사양

코어 소재:

Ferrite

중량:

13.6 – 13.9 g

패키지:

175 per 13″ reel; Plastic tape: 44 mm wide, 0.4 mm thick, 32 mm pocket spacing, 11.9 mm pocket depth

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested with pure water or alcohol only. More Info.
