3D Model Datasheet

A9967-AL Surface Mount

Power Transformer

Can be used with Linear Technology LT1725 Flyback Controller.
Suitable for use in PoE applications.
Ideal for use in telecommunications isolated converters and isolated power supplies
Six 1:1 windings

지금 구매:

개수	단품 가격
1	$3.42
175	$3.10
700	$2.62
1400	$2.18
2800	$1.97
5000	$1.78

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Packaging

D = 13" machine-ready reel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

통상적인 적용 분야

Analog Devices LT1725와(과) 호환

입력 전압	출력 1	전력	FSW
36 V — 72 V	15 V , 2 A	30 W	100 kHz

사양

Electrical specifications at 25°C.

부품 번호 2 (Hover for schematics)	인덕턴스 @ 0A (µH) 3 (허용 오차: ±10%)	인덕턴스 최소 @ 2.3 A (µH)	DCR max (Ω)			누설 인덕턴스 최대 (µH) 4	권수비	절연 전압 (Vrms) 5
부품 번호 2 (Hover for schematics)	인덕턴스 @ 0A (µH) 3 (허용 오차: ±10%)	인덕턴스 최소 @ 2.3 A (µH)	Pri	Sec	Bias	누설 인덕턴스 최대 (µH) 4	Pri : Sec : Bias	절연 전압 (Vrms) 5
A9967-AL_	10.0	9.0	0.135	0.225	0.045	0.200	1 : 0.33 : 0.33	500

메모

Output is with both windings of the secondary connected in parallel.
When ordering, please specify packaging code: e.g. A9967-ALD
Inductance is per winding of the primary, measured at 100 kHz, 0.1 Vrms, 0 Adc. Inductance of the primary, with three windings connected in series is 90 µH.
Leakage inductance is for one winding and is measured with all other windings shorted.
500 Vrms, one minute isolation between windings.

종단 처리:

RoHS-compliant. 260°C compatible. Tin-silver over tin over nickel over phos bronze. Other terminations available at additional cost.

패키지:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (175 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.

환경

환경:

RoHS 준수

주변 온도 범위:

–40°C to +125°C

보관 온도 범위:

Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

회로도

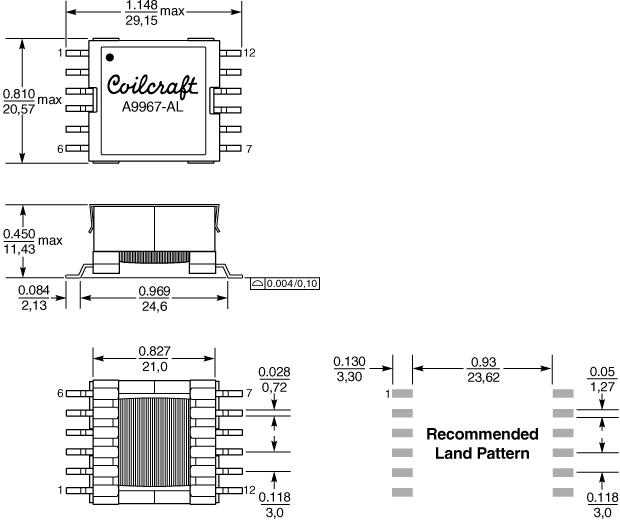

물리적 특성

테이프 및 릴 사양

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
175	330	100	13	50,4	44,4	44	32	4	2	11,9	0,4

일반 사양

코어 소재:

Ferrite

중량:

11.9 g

패키지:

175 per 13″ reel Plastic tape: 44 mm wide, 0.4 mm thick, 28 mm pocket spacing, 12.0 mm pocket depth

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested with pure water or alcohol only. More info.
