ZD2250-AE, ZE2432-AE

Flyback Transformers for Texas Instruments LM5185-Q1

Coilcraft ZD2250/ZE2432-AE flyback transformers are designed to work with the LM5185-Q1 100 V_in PSR flyback automotive DC-DC controller from Texas Instruments. These transformers have no auxiliary winding, reducing solution size and cost while achieving greater than 90% efficiency, making them suitablefor use in isolated bias power supplies for IGBT, SiC, and GaN gate drivers.

The ZD2250/ZE2432-AE are AEC qualified, making them ideal for automotive traction inverters, onboard chargers (OBC), EV charging stations, battery management systems (BMS), automotive DC-DC converters and wide range of other automotive and industrial applications.

Optimized to work with the PSR Flyback DC-DC controller LM5185-Q1 from Texas Instruments
Designed to operate with 18 – 60 V (ZD2250) and 9 – 60 V (ZE2432) input at 200 kHz
2000 Vrms one minute isolation (hipot) primary to secondary
AEC-Q200 (–40°C to +125°C), with max part temp at 165°C

지금 구매:

부품 번호

내 부품 찾기

개수	단품 가격
1	$7.86
100	$6.42
250	$4.81
500	$2.89
1000	$2.25
2500	$1.93
5000	$1.77

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Packaging

D = 13" machine-ready reel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

부품 번호

내 부품 찾기

통상적인 적용 분야

Texas Instruments LM5185-Q1와(과) 호환

부품 번호	입력 전압	출력	전력	FSW
ZD2250-AED	18 V — 60 V	16 V , 1 A	16 W	200 kHz
ZE2432-AED	9 V — 60 V	16 V , 1 A	16 W	200 kHz

사양

Electrical specifications at 25°C.

부품 번호 (Hover for schematics)	인덕턴스 @ 0A (µH) 1 (허용 오차: ±10%)	Isat (A) 2	DCR max (Ω) 3		누설 인덕턴스 최대 (µH) 4	권수비	절연 전압 (Vrms) 5
부품 번호 (Hover for schematics)	인덕턴스 @ 0A (µH) 1 (허용 오차: ±10%)	Isat (A) 2	Pri	Sec	누설 인덕턴스 최대 (µH) 4	Pri : Sec	절연 전압 (Vrms) 5
ZD2250-AED	12	5.5	0.025	0.025	0.20	1 : 1	2000
ZE2432-AED	9	7.5	0.025	0.025	0.15	1 : 1	2000

메모

Inductance is for the primary, measured at 200 kHz, 0.1 Vrms, 0 Adc.
DC current that causes an inductance drop of 30% (typ) from its value without current.
DCR values specified with windings connected in parallel.
Leakage inductance is for the primary winding (connected in parallel) with the secondary windings shorted.
2000 Vrms, isolation (hipot) measured between primary windings (connected in parallel) to secondary windings (connected in parallel).

종단 처리:

RoHS-compliant. 260°C compatible. RoHStin-silver over tin over nickel over phos bronze. Other terminations available at additional cost.

패키지:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (200 parts per reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

환경

환경:

RoHS 준수 , 할로겐 프리

주변 온도 범위:

–40°C to +125°C

보관 온도 범위:

Component: –40°C to +165°C
Tape and reel packaging: –40°C to +80°C

최고 부품 온도:

+165°C (ambient + temperature rise)

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

성능 곡선

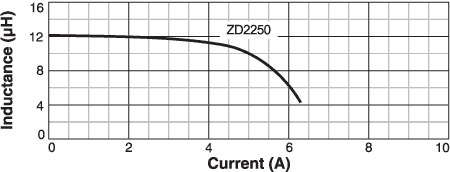

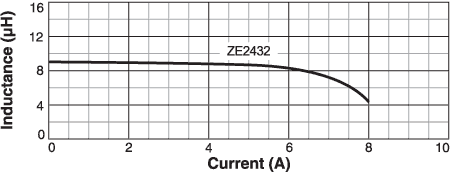

L vs Current

회로도

Connect pin 2 to 1, pin 10 to 9, and pin 6 to 7 on the PC board

물리적 특성

테이프 및 릴 사양

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
200	330	100	13	50,4	44,4	44	28	4	2	9,55	0,5

일반 사양

코어 소재:

Ferrite

중량:

5.5 g

패키지:

200 per 13″ reel Plastic tape: 44 mm wide, 0.5 mm thick, 28 mm pocket spacing, 9.55 mm pocket depth

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
