ZC1905-BE Flyback Transformers

for STMicroelectronics STEVAL-A6986IV3

Optimized for STEVAL-A6986IV3 from STMicroelectrics with an isobuck-boost topology and an input voltage of up to 28 V
Suitable for isolated IGBT/SiC gate driver, On-board charger for HEV/EV, and industrial applications
Higher isolation and creepage and clearance version is available per request
AEC-Q200 qualified

지금 구매:

샘플 신청:

통상적인 적용 분야

STMicroelectrics STEVAL-A6986IV3와(과) 호환

입력 전압	출력 1	전력	FSW
28 V	30 V , 0.1 A	3 W	500 kHz

사양

Electrical specifications at 25°C.

부품 번호 (Hover for schematics)	인덕턴스 @ 0A (µH) 2 (허용 오차: ±10%)	Isat (A) 3	DCR max (Ω)					누설 인덕턴스 최대 (µH) 4	권수비 5	절연 전압 (Vrms) 6
부품 번호 (Hover for schematics)	인덕턴스 @ 0A (µH) 2 (허용 오차: ±10%)	Isat (A) 3	Pri	Sec1	Sec2	Sec3	Sec4	누설 인덕턴스 최대 (µH) 4	Pri : Sec1	절연 전압 (Vrms) 6
ZC1905-BED	20	4.8	0.05	1.95	1.95	1.95	1.13	0.25	1 : 2.69	1500

메모

Sec1, Sec2, Sec3 outputs: 30 V, 0.10 A; Sec4 output: 30 V, 0.25 A.
Inductance is for the primary, measured at 500 kHz, 0.1 Vrms, 0 Adc.
DC current that causes the primary inductance to drop 30% from its value without current.
Leakage inductance is for the primary with the secondary windings shorted.
The turns ratio from the primary to each of the four secondaries is 1 : 2.69.
1500 Vrms, one minute isolation (hipot) between primary and secondary windings.

종단 처리:

RoHS-compliant, halogen free. 260°C compatible. Tin-silver-copper over tin over nickel over phos bronze terminations.

패키지:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (200 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

환경

환경:

RoHS 준수 , 할로겐 프리

주변 온도 범위:

–40°C to +125°C

보관 온도 범위:

Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C

최고 부품 온도:

+165°C (Ambient + temp rise)

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

성능 곡선

L vs Current

회로도

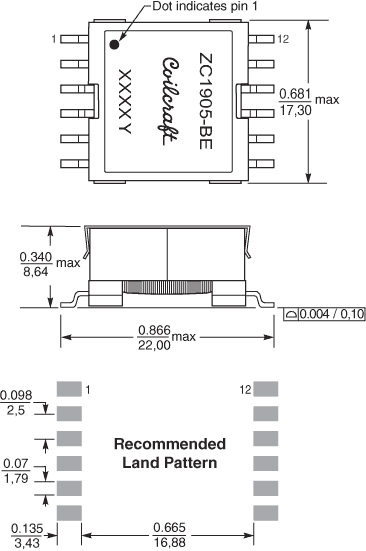

물리적 특성

테이프 및 릴 사양

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
200	330	100	13	50,4	44,4	44	28	4	2	9,3	0,4

일반 사양

코어 소재:

Ferrite

중량:

5.1 – 5.3 g

패키지:

200 per 13″ reel Plastic tape: 44 mm wide, 0.40 mm thick, 28 mm pocket spacing, 9.3 mm pocket depth

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.
