ZB1346-BE Flyback Transformers

for STMicroelectronics Iso-Buck Converter A/L6938I

Optimized for iso-buck converter A/L6938I from STMicroelectronics and designed in the evaluation board STEVAL-L6983IV1
4 to 38 V input voltage range with up to 10 W power
4000 Vrms, one minute isolation (hipot) from primary to secondary
8 mm creepage and clearance, Material Group 3a
- Insulation level may be Functional, Basic, or Reinforced depending on application variables such as working voltage, pollution degree, OVC, and altitude. Please contact Coilcraft for full details.
AEC-Q200 qualified

지금 구매:

샘플 신청:

통상적인 적용 분야

STMicroelectronics STEVAL-L6983IV1와(과) 호환

입력 전압	출력	전력	FSW
3 V — 38 V	30 V , 0.33 A	9.9 W	500 kHz

사양

Electrical specifications at 25°C.

부품 번호 (Hover for schematics)	인덕턴스 @ 0A (µH) 1 (허용 오차: ±10%)	Isat (A) 2	DCR max (Ω)		누설 인덕턴스 최대 (µH) 3	권수비	절연 전압 (Vrms) 4
부품 번호 (Hover for schematics)	인덕턴스 @ 0A (µH) 1 (허용 오차: ±10%)	Isat (A) 2	Pri	Sec	누설 인덕턴스 최대 (µH) 3	Pri : Sec	절연 전압 (Vrms) 4
ZB1346-BED	13.5	8.3	0.029	1.34	0.14	1 : 6	4000

메모

Inductance is for the primary, measured at 500 kHz, 0.1 Vrms, 0 Adc.
DC current that causes the primary inductance to drop 30% from its value without current.
Leakage inductance is for the primary with the secondary windings shorted.
4000 Vrms, one minute isolation (hipot) between primary and secondary.

종단 처리:

RoHS-compliant, halogen free. 260°C compatible. Tin-silver-copper over tin over nickel over phos bronze terminations.

패키지:

D = 13″ machine-ready reel. EIA-481 embossed plastic tape (150 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).

환경

환경:

RoHS 준수 , 할로겐 프리

주변 온도 범위:

–40°C to +125°C

보관 온도 범위:

Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C

최고 부품 온도:

+165°C (Ambient + temp rise)

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

성능 곡선

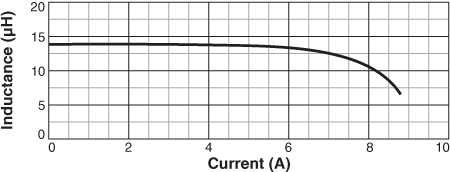

L vs Current

회로도

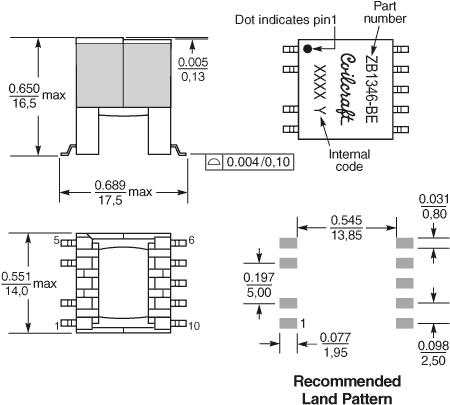

물리적 특성

테이프 및 릴 사양

Parts per reel	Reel dimensions (mm)					Tape dimensions (mm)						Orientation
13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
150	330	100	13	62,4	56,4	56	24	4	2	17,3	0,5

일반 사양

코어 소재:

Ferrite

중량:

6.87 g

패키지:

150 per 13″ reel Plastic tape: 56 mm wide, 0.6 mm thick, 24 mm pocket spacing, 17.3 mm pocket depth

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.
