PA638x Push-Pull Transformers

for Linear LT3999

RoHS 준수
  • Developed for Linear LT3999 Low Noise, 1 A, 1 MHz Push-Pull DC/DC Driver with Duty Cycle Control
  • 500 Vrms, one minute isolation primary windings to secondary windings
  • Three output power versions: 1W (12V, 0.083A), 5W (5V, 1A), and 10W (12V, 0.83A)

지금 구매:
개수 단품 가격
1 $5.58
350 $3.38
700 $2.03
1400 $1.58
2500 $1.36
5000 $1.25

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

. 재고 보유 중, 당일 발송 가능.
샘플 신청:

통상적인 적용 분야

Analog Devices LT3999와(과) 호환

부품 번호 일차 전압 출력
PA6381-ALD 5 V 12 V , 0.08 A
PA6383-ALD 5 V 5 V , 1 A
PA6384-ALD 12 V 12 V , 0.83 A

사양

Electrical specifications at 25°C.

부품 번호 1
(Hover for schematics)
인덕턴스
최소 (µH) 2
인덕턴스
@ 0A (µH) 2
DCR max (Ω) 3 누설
인덕턴스
최대 (µH) 4
권수비 5 전압시간적
(V-µs) 6
Pri1 Pri2 Sec Pri1 : Sec
PA6381-ALD 139.0 232.0 0.166 0.201 1.780 0.520 1 : 3.46 26
PA6383-ALD 29.7 49.5 0.035 0.045 0.067 0.190 1 : 1.5 12
PA6384-ALD 82.5 137.5 0.048 0.061 0.072 0.336 1 : 1.4 22
메모
  1. When ordering, please specify packaging code: PA6384-ALD.
  2. Inductance is for Pri A measured on an Agilent/HP 4284 at 100 kHz, 0.1 Vrms, 0 Adc.
  3. DCR for the secondary is per winding.
  4. Leakage inductance measured between pins 1 and 4 at 100 kHz, 0.1 Vrms, 0 Adc with pins 2 and 3 connected and with secondary pins shorted.
  5. Turns ratio is with the primary windings and secondary windings connected in series.
  6. Volt-time product is for Primary A, between pin 1 and 2.

종단 처리:

  • RoHS tin-silver (96.5/3.5) over tin over nickel over phos bronze.

패키지:

  • D = 13″ machine ready reel. EIA-481 embossed plastic tape. Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
환경
환경:
RoHS 준수
주변 온도 범위:
–40°C to +85°C
보관 온도 범위:
Component: –40°C to +125°C.
Packaging: –40°C to +80°C
최고 부품 온도:
+125°C (ambient + temp rise)
고장 비율(FIT) / 평균 고장률(MTBF):

회로도

Primary and secondary windings to be
connected in series on the PC board

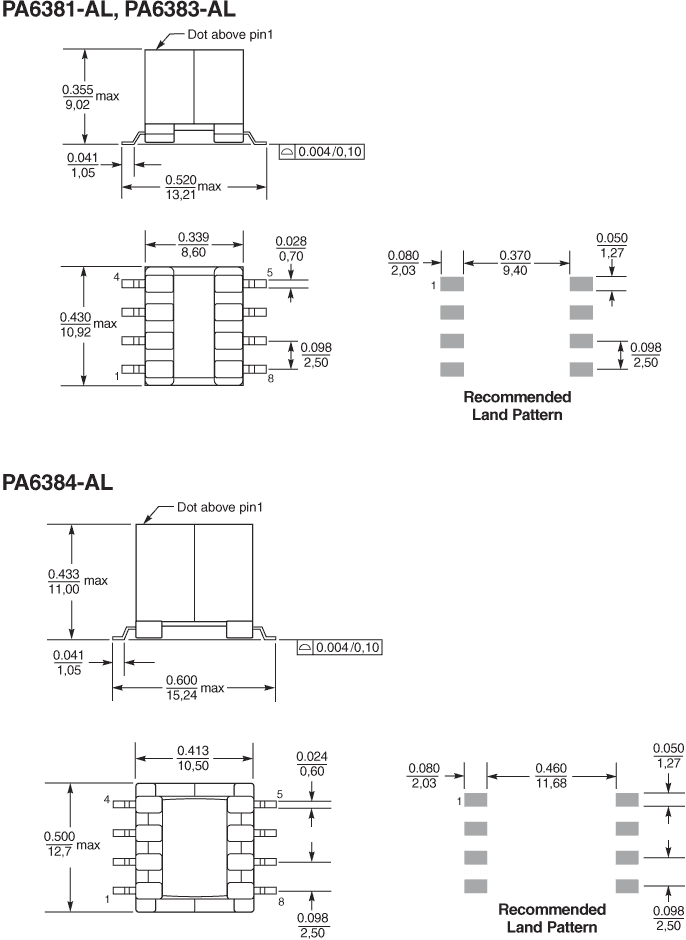

물리적 특성




테이프 및 릴 사양



  Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
Part Number 13" (330 mm) A B C D E W P Po P1 H T part_or_i.gif
PA6381, PA6383 350 330 100 13 38,4 32,4 32 20 4 2 9,16 0,42
PA6384 200 330 100 13 38,4 32,4 32 28 4 2 11,2 0,5

일반 사양

코어 소재:
Ferrite
중량:
PA6381-AL, PA6383-AL: 1.9 – 2.1 g; PA6384-AL: 3.8 – 4.0 g
패키지:
PA6381-AL, PA6383-AL 350 per 13″ reel Plastic tape: 32 mm wide, 0.42 mm thick, 20 mm pocket spacing, 9.16 mm pocket depth
PA6384-AL 200 per 13″ reel Plastic tape: 32 mm wide, 0.5 mm thick, 24 mm pocket spacing, 11.2 mm pocket depth
