3D Model Datasheet

HTX7045C LLC Half-Bridge Transformers

For isolated gate driver bias supply

HTX7045C Series transformers feature a chip-style construction – a significant advancement over traditional core and bobbin designs that not only reduces the size of the component, but also streamlines the manufacturing process, resulting in a more cost-effective solution.

It offers low interwinding capacitance (as low as 0.7 pF), making it particularly well-suited for use in isolated gate driver bias supplies employing the open-loop LLC topology to achieve ultra-low EMI noise and high CMTI (Common Mode Transient Immunity). These characteristics make it especially beneficial for high-frequency switches including SiC, GaN and IGBT technologies.

The HTX7045C is AEC qualified, making it ideal for automotive traction inverters and motor controls, automotive on-board chargers (OBC), EV charging stations, battery management systems (BMS), automotive DC-DC converters and wide range of other automotive and industrial applications.

Low interwinding capacitance to minimize EMI and achieve high CMTI (Common Mode Transient Immunity)
Optimized for isolated bias supplies for SiC and GaN gate drivers, such as Texas Instrument UCC25800-Q1
Ideal for automotive OBC and traction Inverters in EV/HEV
Highly automated for cost-effective and exceptional quality and reliability
2800 Vrms, 4000 VDC, one minute isolation (hipot) between primary and secondary windings.
AEC-Q200 qualified

지금 구매:

부품 번호

내 부품 찾기

개수	단품 가격
1	$3.42
100	$2.79
350	$2.09
700	$1.26
1000	$0.98

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Termination

R = Tin over nickel over silver glass frit

Packaging

C = 7" machine-ready reel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

부품 번호

내 부품 찾기

통상적인 적용 분야

Texas Instruments UCC25800와(과) 호환

입력 전압
9 V — 34 V

사양

Electrical specifications at 25°C.

부품 번호 1 (Hover for schematics)	인덕턴스 @ 0A (µH) 2 (허용 오차: ±30%)	DCR max (Ω) 3		Leakage Inductance ±20% (µH) 4		권수비	정전용량 max (pF) 5	전압시간적 (V-µs)	Irms (mA) 6	절연 전압 (Vrms) 7
부품 번호 1 (Hover for schematics)	인덕턴스 @ 0A (µH) 2 (허용 오차: ±30%)	Pri	Sec	Pri	Sec	Pri : Sec	정전용량 max (pF) 5	전압시간적 (V-µs)	Irms (mA) 6	절연 전압 (Vrms) 7
HTX7045C-753ARC	75	0.35	0.35	8.5	8.5	1 : 1	0.75	33.9	730	2800
HTX7045C-104ARC	100	0.40	0.40	9.5	9.5	1 : 1	0.9	38.8	680	2800
HTX7045C-124DRC	120	0.42	0.28	12.5	5.5	1 : 0.67	0.7	38.8	660	2800
HTX7045C-124ERC	120	0.42	0.32	12.0	6.5	1 : 0.75	0.7	45.3	660	2800
HTX7045C-124FRC	120	0.42	0.35	11.0	7.5	1 : 0.83	0.75	38.8	660	2800
HTX7045C-134BRC	130	0.44	0.17	15.0	2.5	1 : 0.4	0.7	45.3	660	2800
HTX7045C-144CRC	140	0.45	0.23	15.0	3.5	1 : 0.5	0.75	45.3	640	2800

메모

When ordering, please specify turns ratio and packaging codes: e.g. HTX7045C-144CRC
Turns ratio: A = 1 : 1, B = 2.5 : 1, C = 2 : 1, D = 1.5 : 1, E = 1.33 : 1, F = 1.2 : 1
Inductance measured at 100 kHz, 0.1 Vrms, 0 ADC on an Agilent 4263B (or equivalent).
DCR is measured on a Keithley 580 Micro-ohmmeter (or equivalent).
Leakage Inductance LL is measured at 100 KHz, 0.1 Vrms on an Agilent 4263B (or equivalent). Sec is shorted for PRI LL / PRI is shorted for SEC LL.
Interwinding capacitance is measured from primary to secondary at 250 KHz, 0.1 Vrms.
Current that causes a 40°C rise from 25°C when applied to the primary winding with secondary current defined by the turns ratio.
2800 Vrms, 4000 VDC; one minute isolation (hipot) measured between primary and secondary. 4.9 mm creepage and clearance Material Group 1 (CTI>600).

종단 처리:

RoHS compliant tin over nickel over silver glass frit.

패키지:

C = 7" machine-ready reel
EIA 481 embossed plastic tape (350 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13" machine-ready reel
EIA 481 embossed plastic tape. Factory order only, not stocked (1500 parts per full reel).

환경

환경:

RoHS 준수 , 할로겐 프리

주변 온도 범위:

−40°C to +125°C

보관 온도 범위:

Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C

최고 부품 온도:

+125°C

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

회로도

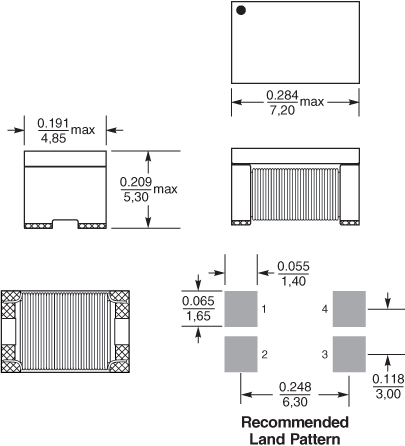

물리적 특성

테이프 및 릴 사양

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
350	1500*	178/330	60/100	13	22,4	16,4	16	8	4	2	5,5	0,40

* Special order

일반 사양

코어 소재:

Ferrite

중량:

0.53 − 0.54 g

패키지:

350/7" reel; 1500/13" reel Plastic tape: 16 mm wide, 0.4 mm thick, 8 mm pocket spacing, 5.5 mm pocket depth

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles.

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
