GA343x Flyback Transformers

for 12 Volt Nominal Input

RoHS 준수
  • Developed for applications with 10 – 14 V input
  • Bias winding provides power to the chipset
  • RoHS-compliant. 260°C compatible. Tin-silver (96.5/3.5) over tin over nickel over phos bronze terminations

지금 구매:
개수 단품 가격
1 $3.90
250 $3.13
500 $2.08
1000 $1.74
2500 $1.56
5000 $1.43

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

. 재고 보유 중, 당일 발송 가능.
샘플 신청:

사양

Electrical specifications at 25°C.

부품 번호 1
(Hover for schematics)
전력 (W) 입력 전압 (V) 인덕턴스
@ 0A (µH) 2
(허용 오차: ±10%)
인덕턴스
최소 @   2.1 A (µH)
DCR max (mΩ) 3 누설
인덕턴스
최대 (µH) 4
권수비 5 주파수 (kHz) 절연
전압 (Vrms) 6
이차
출력 (V, A) 7
Pri Sec Aux Pri : Sec : Aux
GA3430-BL_ 5 10 14 25.0 22.5 90.0 15.0 95.0 0.685 1 : 0.2 : 0.2 250 1500 5 V , 1 A
GA3431-BL_ 5 10 14 25.0 22.5 90.0 5.0 70.0 0.945 1 : 0.143 : 0.143 250 1500 3.3 V , 1.5 A
메모
  1. When ordering, please specify packaging code: GA3431-BLD.
  2. Inductance is for the primary, measured at 250 kHz, 0.3 Vrms, 0 Adc.
  3. DCR for the secondary is per winding.
  4. Leakage inductance measured between pins 3 and 4 with all secondary pins shorted.
  5. Turns ratio is with the secondary windings connected in parallel.
  6. 1500 Vrms isolation from primary and bias to secondary;
    500 Vrms isolation from primary to bias, tested for one minute.
  7. Output is with the secondary windings connected in parallel. Bias winding output: 5.0 V, 20 mA (GA3430); 3.3 V, 20 mA (GA3431).

종단 처리:

  • RoHS tin-silver over tin over nickel over phos bronze. Other terminations available at additional cost.

패키지:

  • D = 13″ machine-ready reel. EIA-481 embossed plastic tape (250 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.
환경
환경:
RoHS 준수
주변 온도 범위:
–40°C to +85°C
보관 온도 범위:
Component: –40°C to +85°C.
Packaging: –40°C to +80°C
고장 비율(FIT) / 평균 고장률(MTBF):

회로도


Secondary windings to be connected
in parallel on the PC board

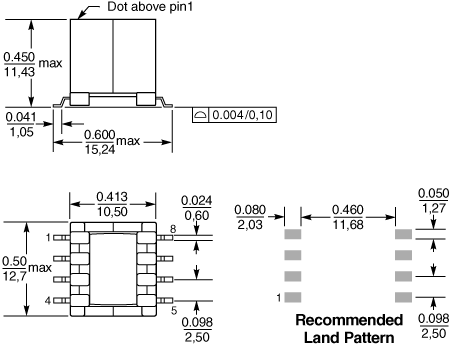

물리적 특성




테이프 및 릴 사양




Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
13" (330 mm) A B C D E W P Po P1 H T part_or_f-(2).gif
250 330 100 13 38,4 32,4 32 20 4 2 11,2 0,5

일반 사양

코어 소재:
Ferrite
중량:
3.9 to 4.1 g
패키지:
250 per 13″ reel Plastic tape: 32 mm wide, 0.5 mm thick, 20 mm pocket spacing, 11.2 mm pocket depth.
